Manual # 016-0190-074 Rev B 06/07
11
Installing the
Left and Right
Steer Lines
Steer Line Basics
The left and right steer lines from the orbital attach to the steel lines on the right
side of the machine. The right steer port is next to the pressure port on the orbital.
The left steer port is next to the tank port. Follow the directions below to install
the left and right steer lines.
Installation
1. Mark the hoses and steel lines with ‘Left’ and ‘Right’, then disconnect
them.
2. Attach the supplied tee fittings to the steel lines. Do not re-attach the
original hoses.

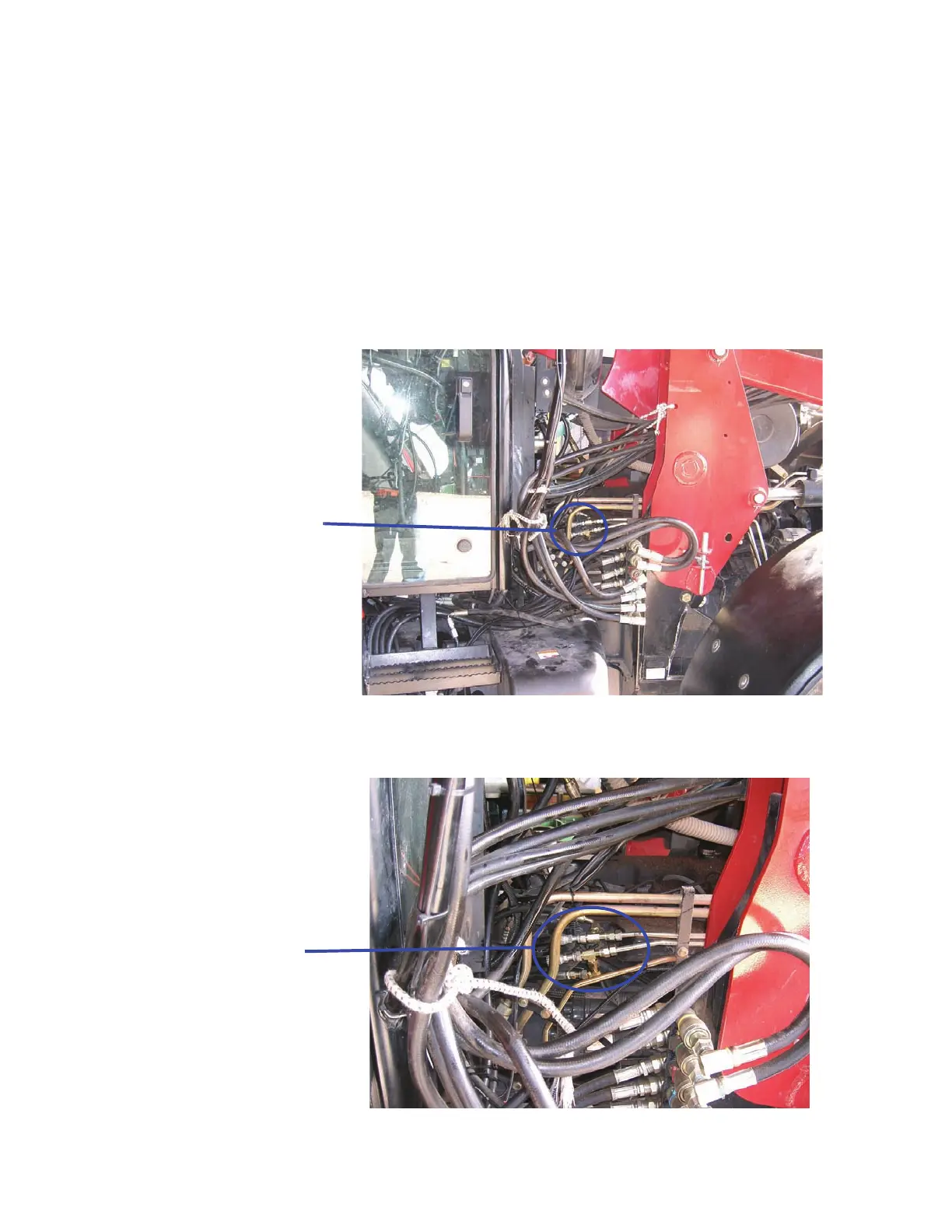

Left and Right
Steer Connections
Installed Tee Fittings
To Next Page
