Raven SmarTrax Supplement Installation Manual

CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual
12

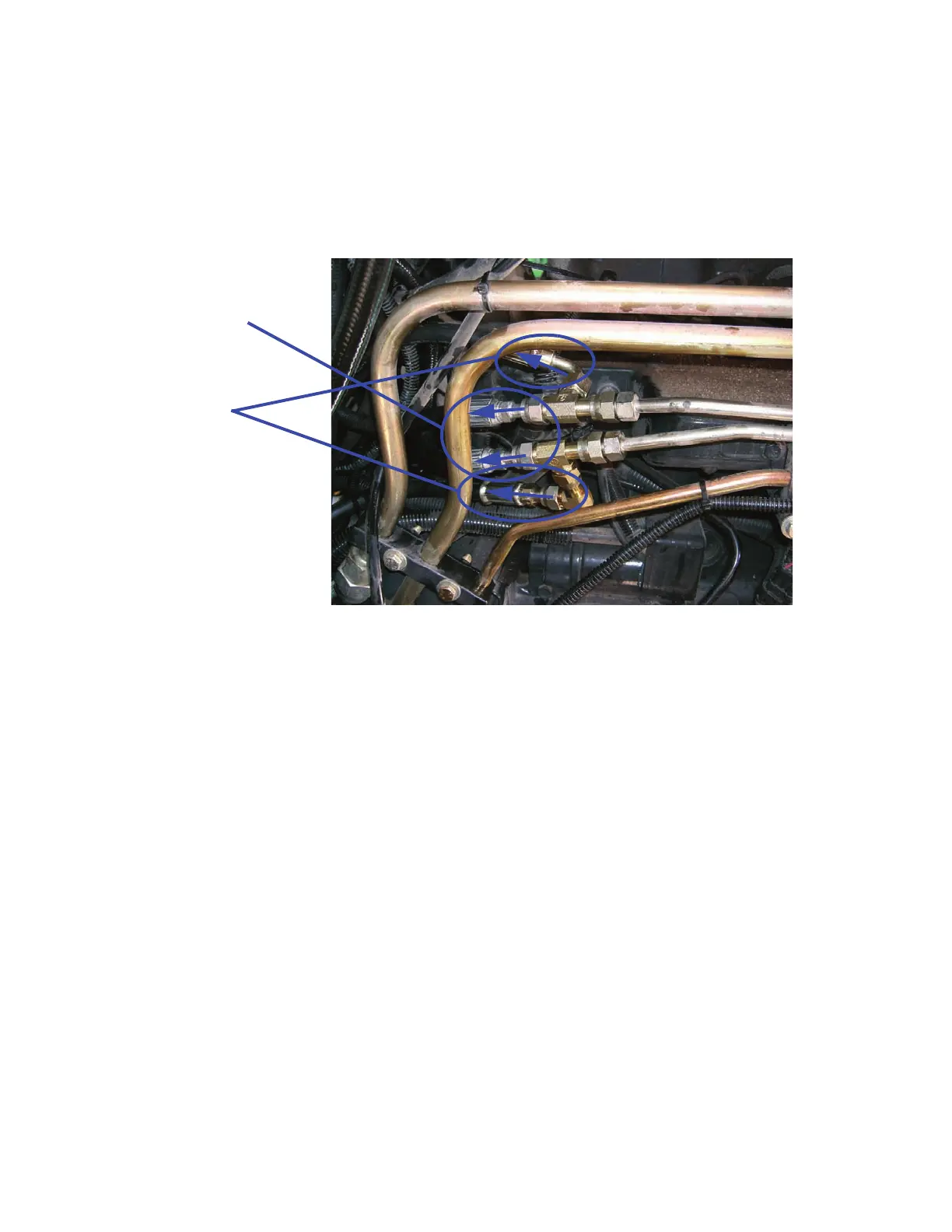

3. Attach the 90 degree end of the hose (P/N 214-1000-444) to the branch
port of each tee.
4. Route the hoses to the SmarTrax valve.
5. Attach the right steer hose to the B port and the left steer hose to the A
port using 90 degree or 45 degree fittings.
To
Counterbalance
Valve
To SmarTrax
Valve
