Installing the
Counter
Balance Valve

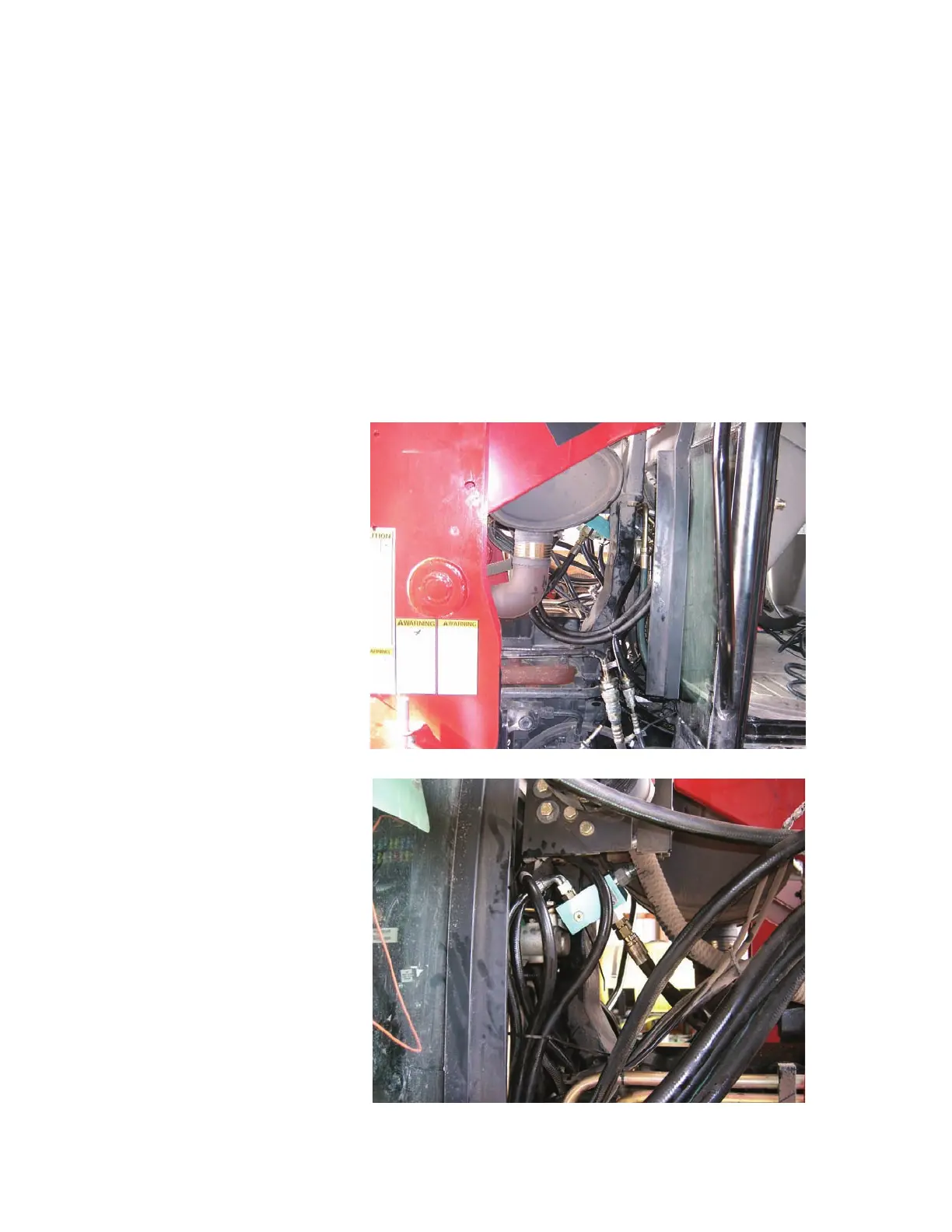

1. Remove the -6 JIC fittings that are in the A and B ports on the
counterbalance valve.
2. Install the supplied -10 SAE O-Ring (M) to -6 ORFS (M) fittings into
the valve.
3. Attach the Right Steer hose (from the orbital) to the B port and the Left
Steer hose to the A port.
4. Attach the supplied hose (P/N 214-1000-446) to the back of the counter
balance.
5. Connect the hoses to the previously installed tees on the left and right
steel lines. The counterbalance port on the opposite side of the A port
will connect to the left line and the port on the opposite side of the B
port will connect to the right line.
