Autoboom UltraGlide Calibration Guide
10
System
Diagnostics

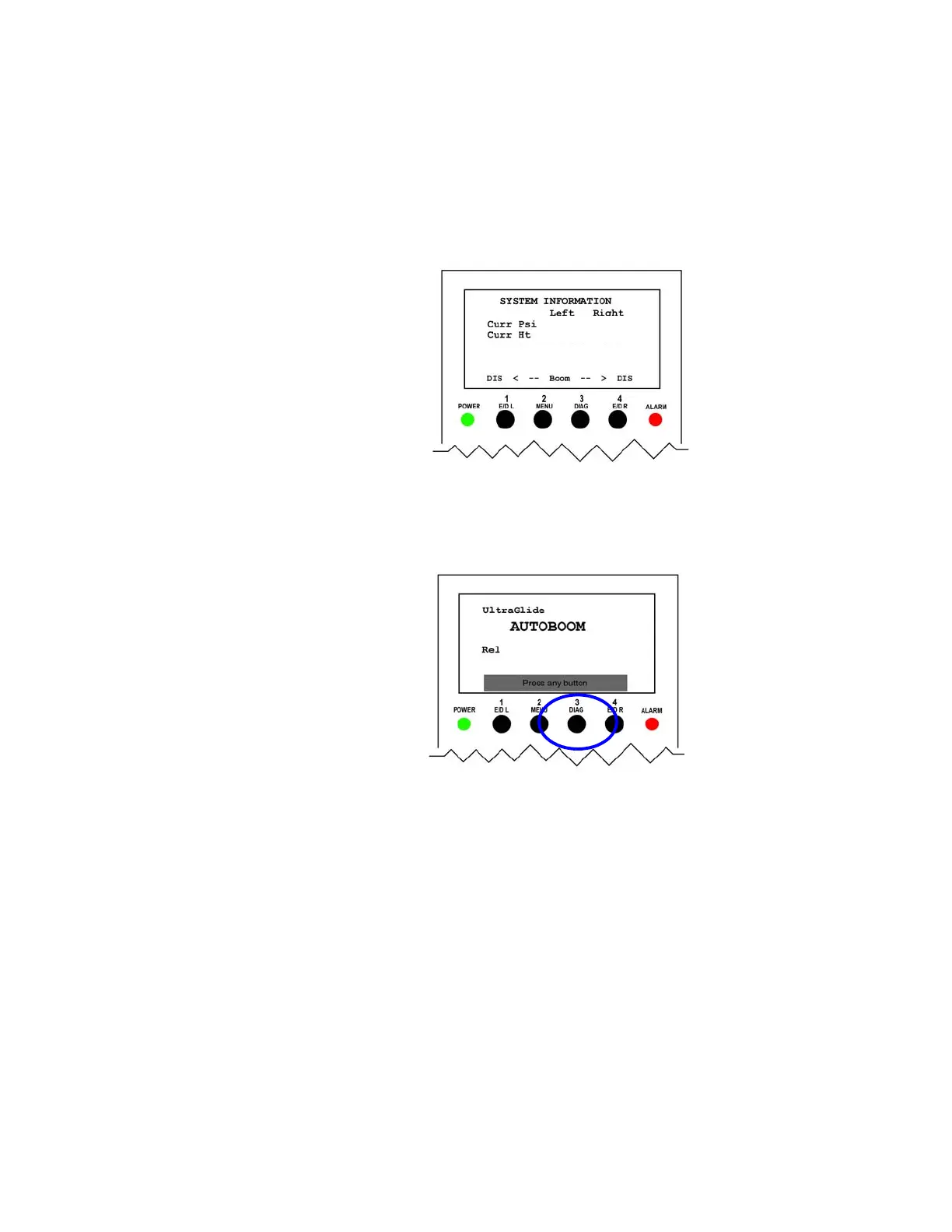

1. From the main screen press Function Key 3 (Diag) to go to the System
Information screen. This screen displays the current left and right
cylinder pressures and the current sensor height reading (not setpoint)
above the ground or crop. The system information screen also allows
the booms to be enabled or disabled.
2. Press Function Key 3 (Diag) from the System Information page to go
to the Firmware screen. From this screen you can determine the current
revision of firmware installed.
3. Press any button from the Firmware screen to return to the main
screen.
1208 1219
30 30
----------------------
2.0.0
