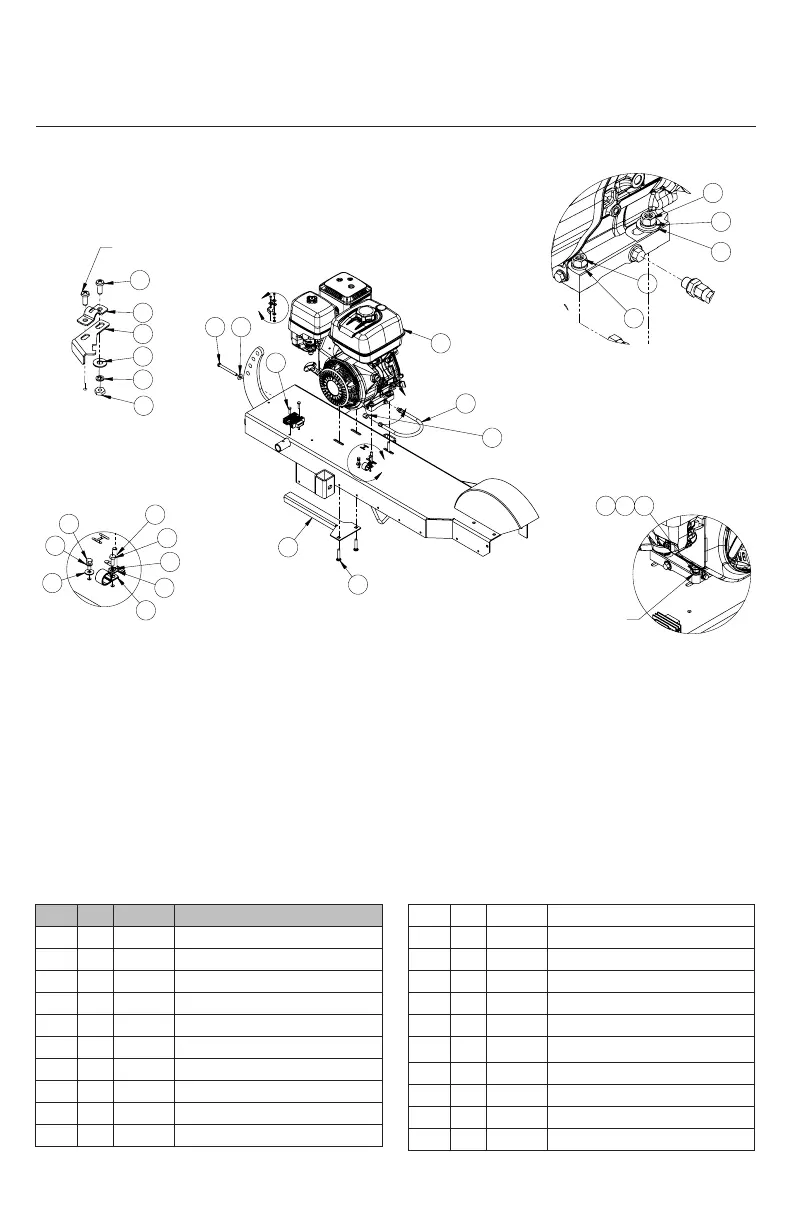

Engine Assembly (5095-D)
B
C
D
5 13
1
6
19
16
18
4
DETAIL B
SCALE 1 : 2
20
21
2
11
7
BLUE LOCTITE ON BOLT
12
DETAIL C
SCALE 1 : 2
13
14
8
14
8
DETAIL D
SCALE 1 : 4
6
9
15
10
3
9
10
3
14817
NOTE: BATTERY GROUND
GOES BETWEEN THE 2 NUTS
ITEM QTY. PART # DESCRIPTION
1 1 5097 BRACKET, ADJ., ENGINE, WELD.
2 1 23833 MOUNT, CHOKE CABLE
3 2 722103 BOLT HEX 1/4-20 X 3/4 GR8
4 2 722104 BOLT HEX 1/4-20 X 1 GR8
5 1 722310 BOLT TAP 3/8-16 X 4 GR2
6 4 722333 BOLT CAR 3/8-16 X 2
7 1 724102 NUT HEX #10-24
8 4 724301 NUT HEX 3/8-16 GR8
9 2 726101 WASHER FLAT 1/4 USS
10 2 726102 WASHER-LOCK, 1/4”
11 1 726103 WASHER LOCK #10
12 1 726203 WASHER FLAT 3/16 USS PL
13 3 726301 WASHER FLAT 3/8 USS
14 4 726302 WASHER-LOCK 3/8
15 1 730025 CLAMP-VINYL COVERED 1”
16 1 738204 CAP-HEX -4
17 1 750061
NUT-WHIZ 3/8-16 SERR FLANGE L/N
GR8 ZN
18 1 750527 ENGINE-13HP HONDA ELEC.
19 1 760766 HOSE-OIL DRAIN
20 2 762771 SCREW-#10-24 X 1/2 PAN BL
21 1 765004 CLAMP-CABLE 3 SERIES MWF
