Rayco RG13II User Manual

RG13II Operation • Maintenance • Parts
800.392.2686
45

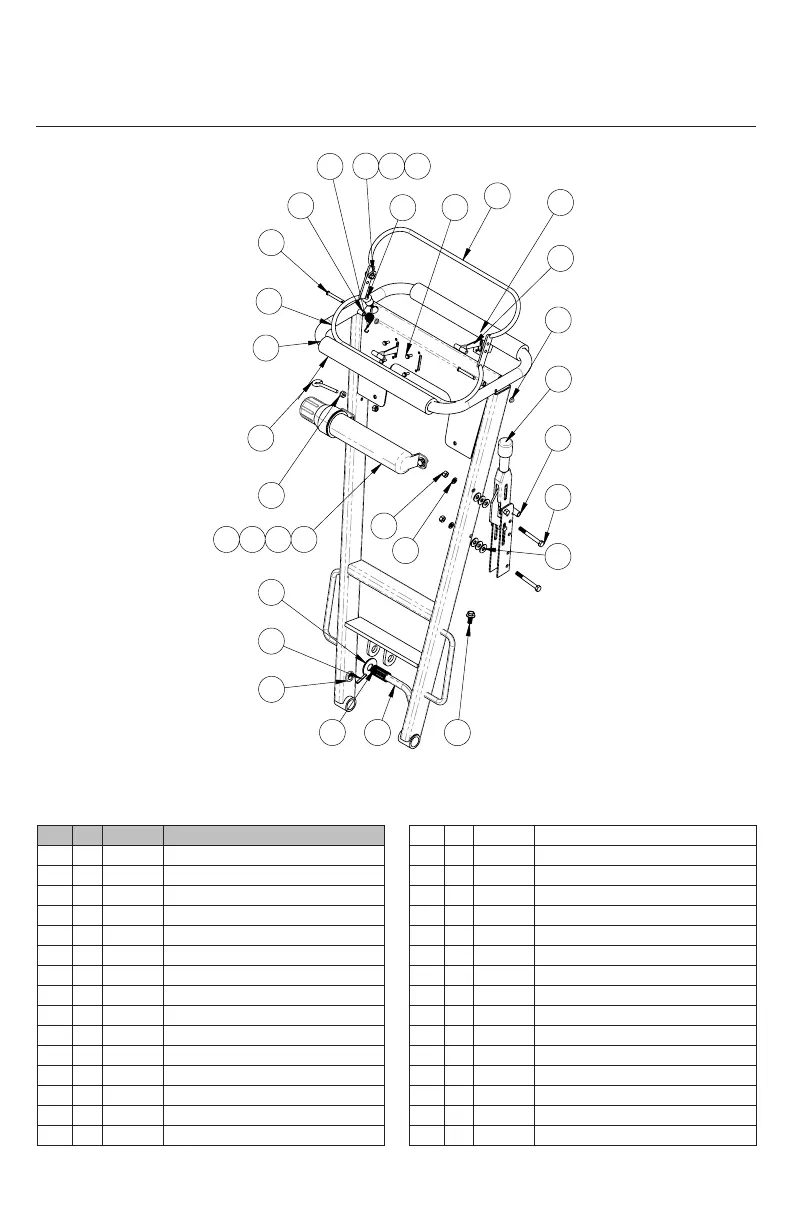

Handle Bar Assembly (10831-E)
7
8
9
16
17
14
18
20
19
22
21
5
3
4
12
13
15
11
10
23
2
24
6
25
1
801057 FOAM TUBING
CUT TO 14" LENGTH
28261927
29 30 31
ITEM QTY. PART # DESCRIPTION
1 1 10762 HANDLE BAR WELD
2 1 10830 PIN, LOCK
3 1 726701 WASHER FLAT - 5/8”
4 1 630012 SPRING - LOCK 3/4”
5 1 730095 PIN-ROLL, 3/16 x 1-1/4
6 2 722114 BOLT WHIZ 3/8-16 X 3/4 GR8.2 ZP
7 1 1601 HANDLE, BAIL - WELD.
8 1 722711 BOLT EYEBOLT 1/4-20
9 2 724508 NUT LOCK 1/4-20 NYLOCK
10 2 762140 THROTTLE - ACTUATOR
11 4 750456 SCREW-#10-24 X1/2 HH MACH
12 1 630010 SWITCH-DEADMAN
13 1 10431 SPRING-TORSION
14 2 630013 NUT PUSH - 1/4”
15 2 7013-04 SPACER - 7/16 OD x 0.272 ID
16 2 728014 PIN, CLEVIS 1/4 X 2
17 1 610005 LEVER-BRAKE
18 2 722204 BOLT HEX 5/16-18 X 2 3/4 GR8
19 8 726201 WASHER - FLAT 5/16
20 1 2541-09 1/2 OD x 14 GA. WALL TUBING
21 2 726202 WASHER LOCK 5/16” PLATED
22 2 724201 NUT HEX 5/16”-18 GR8
23 4 724102 NUT HEX #10-24
24 2 73 0100 GROMMET-RUBBER 9/16” ID
25 2 23323 TUBING, FOAM 1” ID X .300” WALL
26 2 722203 BOLT HEX 5/16-18X 3/4 GR8
27 2 750050 NUT LOCK 5/16-18 NYLON
28 1 802998 TUBE-MANUAL 2” DIA X 12.5” LONG
29 1 34772 CONTACT SWITCH TAB
30 1 722110 BOLT WHIZ 1/4-20 X 3/4
31 1 750768 NUT-WHIZ 1/4-20 A563 GR-A
