Rayco RG13II - Brake Assembly (1705-E)

RG13II Operation • Maintenance • Parts
44

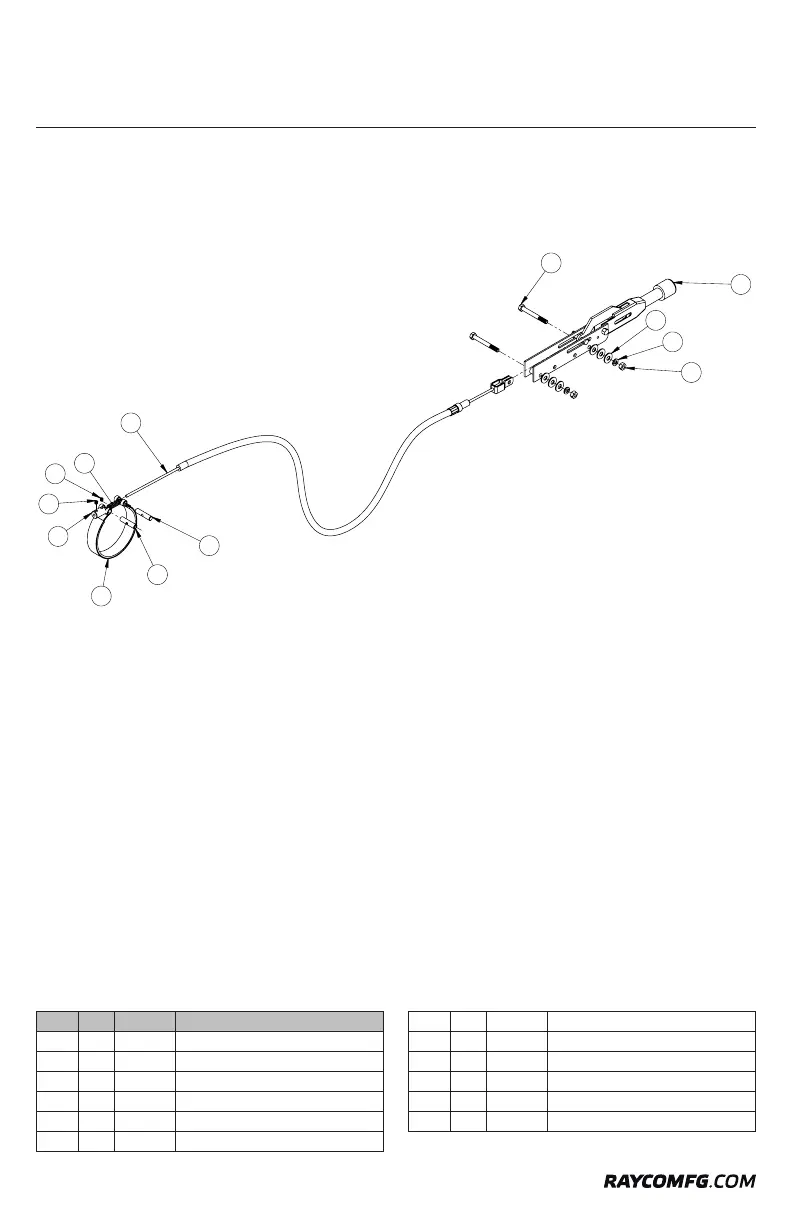

Brake Assembly (1705-E)
2
1
6
3
11
11
4
12
5
8
10
9
7
ITEM QTY. PART # DESCRIPTION
1 1 1504 PIN BRAKE
2 1 1505 PIN BRAKE W/SET SCREW
3 1 1506 LOCK COLLAR
4 1 610000 BRAKE - STRAP
5 1 610005 LEVER-BRAKE
6 1 610035 SPRING-BRAKE RETURN
7 2 722204 BOLT HEX 5/16-18 X 2 3/4 GR8
8 2 724201 NUT HEX 5/16”-18 GR8
9 6 726201 WASHER - FLAT 5/16
10 2 726202 WASHER LOCK 5/16” PLATED
11 2 730009 SCREW-SET 1/4 COUNTER PT
12 1 736067 CABLE-BRAKE RG12/20
