User’s guide Ytterbium Pulsed Fiber Laser RFL-P20QB～P30QB Ver.: 2.0
3
2. Mounting
2.1 Mounting dimensions
(1) Fiber Laser module dimensions (As shown in Fig. 1).

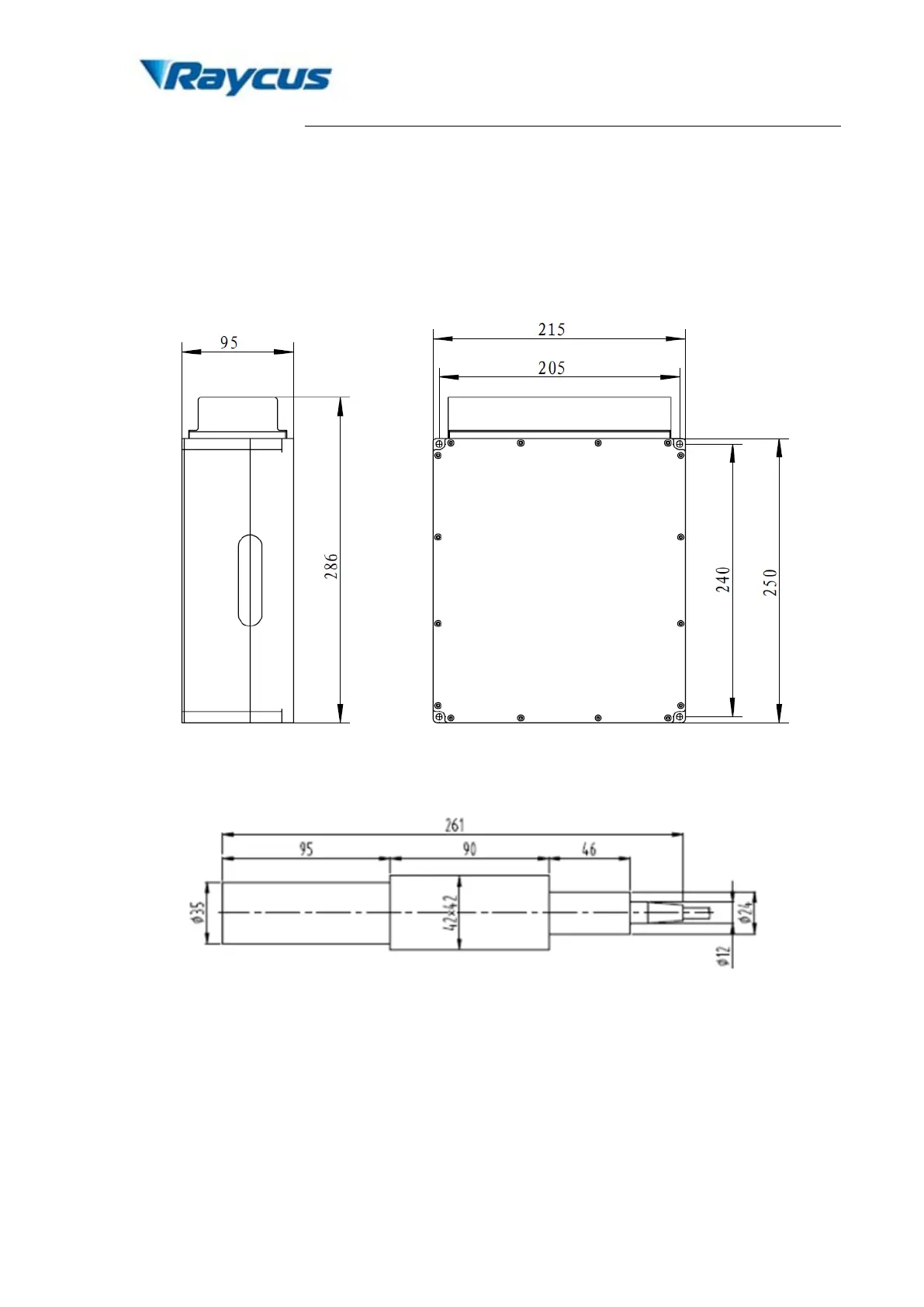

Figure 1. Dimension drawing of laser module (Unit: mm).
(2) Isolated output isolator (As shown in Fig. 2).
Figure 2. Dimension drawing of output isolator (Unit: mm).
2.2 Method of installation
(1) The laser output fiber is the key but very sensitive component. During the package,
transport and operation, the bending radius of output fiber must not exceed 15 cm, or
the laser may be damaged. The leading and tail parts of the output fiber must not be
excessively bended, in case of damaging. When returning the laser for warranty, it
suggests using the original package. If the original package is not accessible, the laser
