P
ART I. User & Installation Manual
72
1417WCE
•

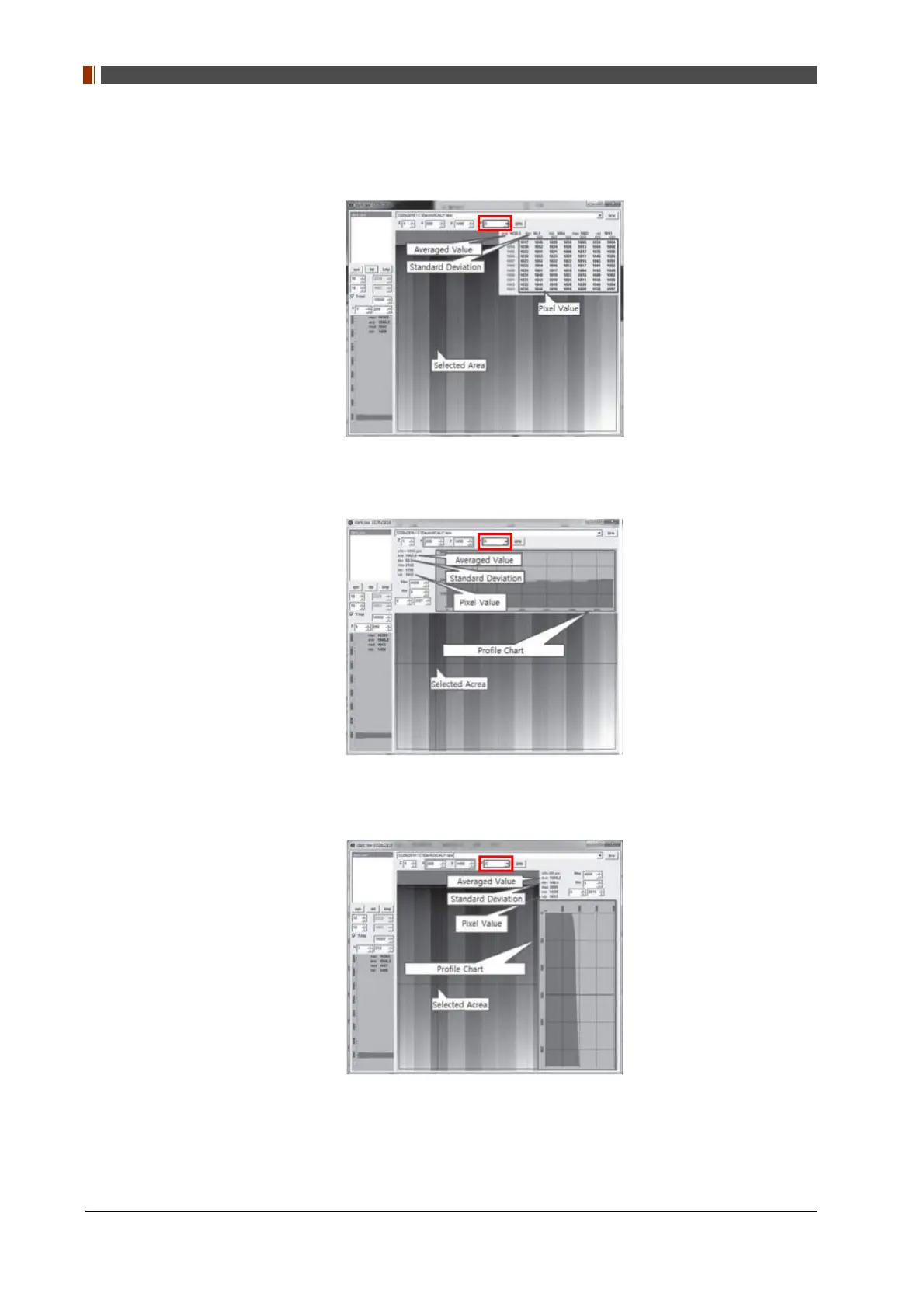

Pixel value at certain level
Choose "S" from marked box.
•
Profile for horizontal line
Choose "R" from marked box.
•
Profile for vertical line
Choose
"C" from the marked box.
71
73
