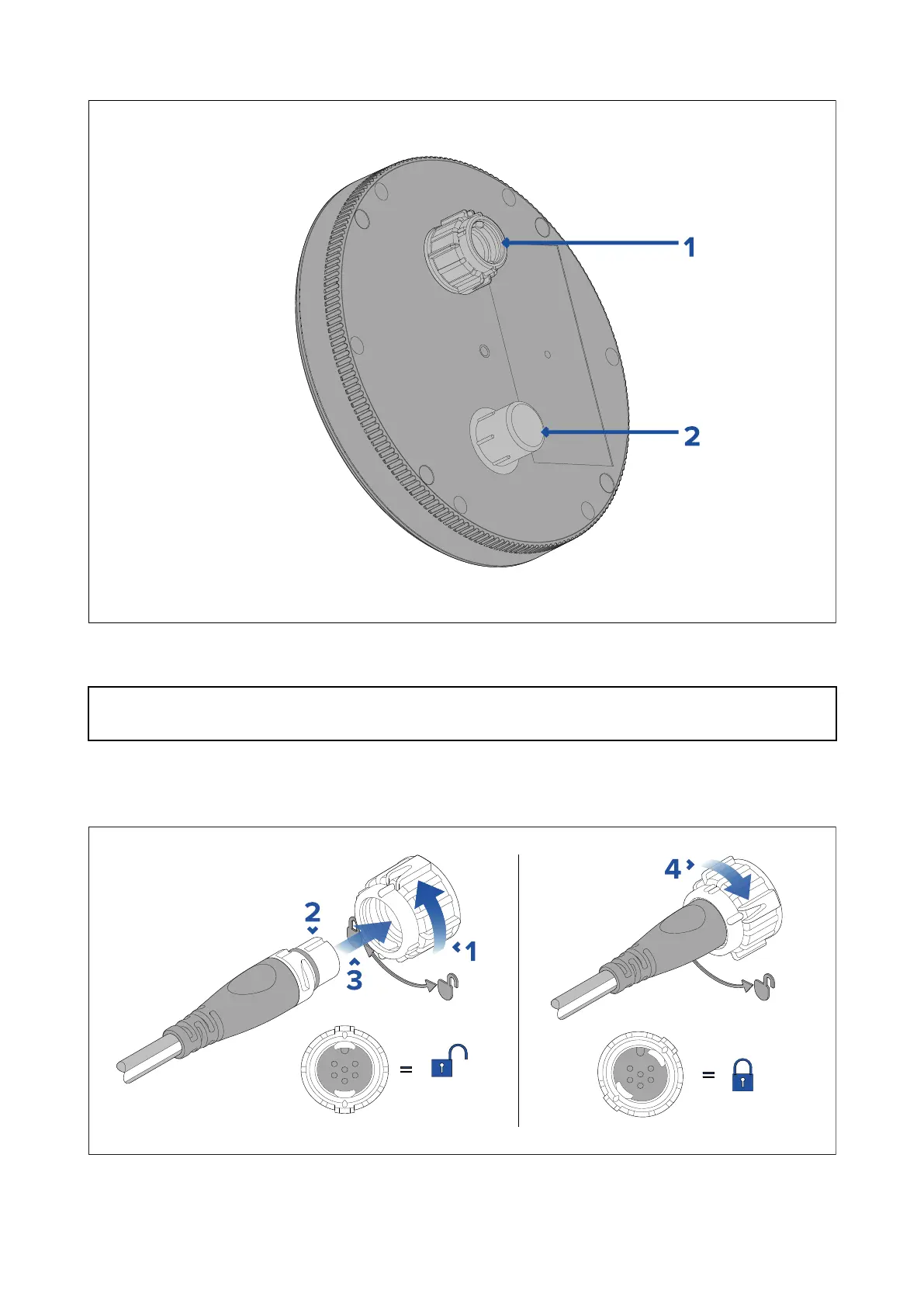

.2Connectionsoverview—EV-1andEV-2

1.Sea Talkng®

2.DeviceNet

Important:

TheDeviceNetportisforusewiththeEV-2only .DoNOTconnectthisportontheEV-1unit.

9 .3ConnectingSeaTalkng®cables

1.R otateyourproduct’sSeaTalkng®connectorlockingcollarcounterclockwise,sothatthe

connectorisintheunlockedposition.

2.Ensurethecable’sconnectoriscorrectlyoriented(groovepointingup).

3.Fullyinsertthecableconnector..

EV -1connections59

Default Chapter5
- Table of Contents5
Chapter 1 Important Information9
- Water Ingress10
- Disclaimer10
- Suppression Ferrites10
- Connections to Other Equipment10
- Declaration of Conformity10
- Declaration of Conformity11
- Product Disposal11
- Warranty Registration12
- IMO and SOLAS12
- Technical Accuracy12
Chapter 2 Document Information13
- Handbook Information14
Chapter 3 Product and System Overview17
- Product Overview18
Chapter 4 Parts Supplied31
- Parts Supplied - ACU-100, ACU-15031
- Parts Supplied - ACU-200, ACU-300, ACU-40031
- Parts Supplied - EV-1 and EV-232
Chapter 5 Product Dimensions35
- Dimensions - EV-1 and EV-236
- Dimensions - ACU-100, ACU-15037
- Dimensions - ACU-200, ACU-300, ACU-40038
Chapter 6 Installation Sequence39
- Installation Checklist40
  - Schematic Diagram40
Chapter 7 Location Requirements41
- Warnings and Cautions42
- Potential Ignition Source42
- Location Requirements - EV-1 and EV-242
- Location Requirements - ACU43
- Compass Safe Distance44
- EMC Installation Guidelines44
Chapter 8 Installation45
- Installation46
- ACU Installation50
  - Mounting the ACU-100, ACU-15050
  - Mounting the ACU-200, ACU-300, ACU-40055
- Drive Unit Installation56
  - Autopilot Drive Unit Documentation56
Chapter 9 EV-1 Connections57
- General Cabling Guidance58
- Connections Overview - EV-1 and EV-259
- Connecting Seatalkng ® Cables59
- Connections Overview - EV-1 and59
- Power Connection - EV-160
- Seatalkng ® Power Connection Point60
- Power Distribution - Seatalkng61
  - Sharing a Breaker65
Chapter 10 ACU-100 / ACU-150 Connections67
- Connections68
Chapter 11 ACU-200, ACU-300, ACU-400 Connections83
- Connections84
- Seatalk ® Pilot Controller Connection103
Chapter 12 System Checks and Troubleshooting105
- Post-Installation Checks106
- Autopilot System Setup106
- Rudder Damping Levels and Deadband Angles107
- Alarms108
- LED Indications - EV-1112
- LED Indications112
- LED Indications - ACU113
Chapter 13 Operation115
- Evolution Autopilot Operation Instructions116
  - Autopilot Controller Documentation116
Chapter 14 Maintenance117
- Service and Maintenance118
- Routine Equipment Checks118
- Product Cleaning118
Chapter 15 Technical Support119
- Raymarine Product Support and Servicing120
  - Viewing Product Information121
- Learning Resources121
Chapter 16 Technical Specification123
- Technical Specification - EV-1 and EV-2124
- Technical Specification - ACU-100, ACU-150125
- Technical Specification - ACU-200, ACU-300, ACU-400126
Chapter 17 Spares and Accessories129
- Spare Parts130
- Evolution Seatalk Ng Cable Kit130
- Seatalkng ® Cables and Accessories132
Appendix A NMEA 2000 Sentences (Pgns) - EV-1 and EV-2135
Appendix B NMEA 2000 Sentences (Pgns) - ACU137
