22 RayPilot 650 Control Unit - Owner’s Handbook
2 Using the RayPilot 650

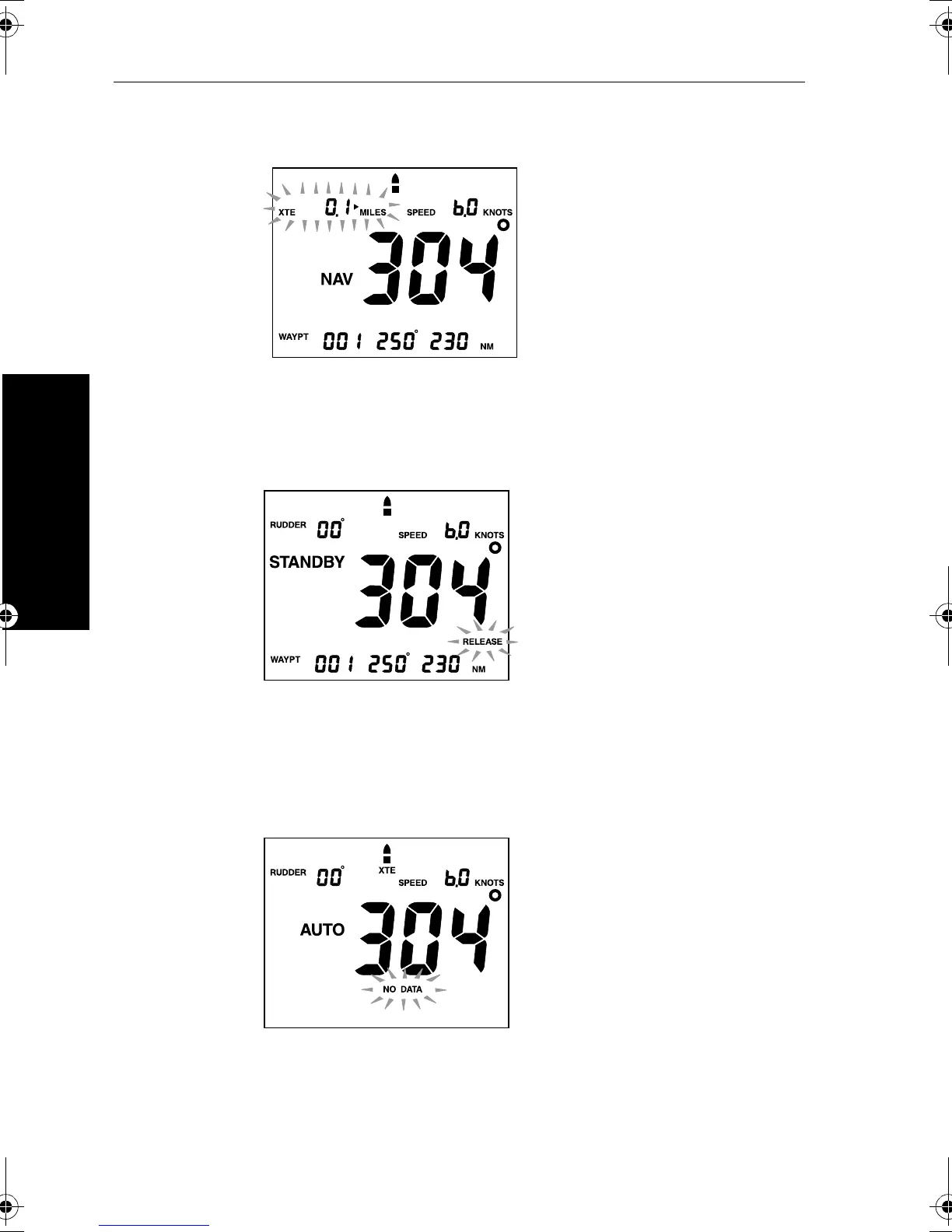

Data Invalid alarm
The Data Invalid alarm sounds in Navigation (Track) mode when
incorrect data has been received from a navigation aid.
Manual Override (AutoRelease) alarm
The Manual Override (AutoRelease) alarm sounds in all modes on
sterndrive installations when the helm is physically moved to regain
manual steering.
Large XTE (Cross Track Error) alarm
The Large XTE alarm sounds in Navigation (Track) mode when
cross track error is greater than 0.3 nm.
D992-1
D993-1D991-1
