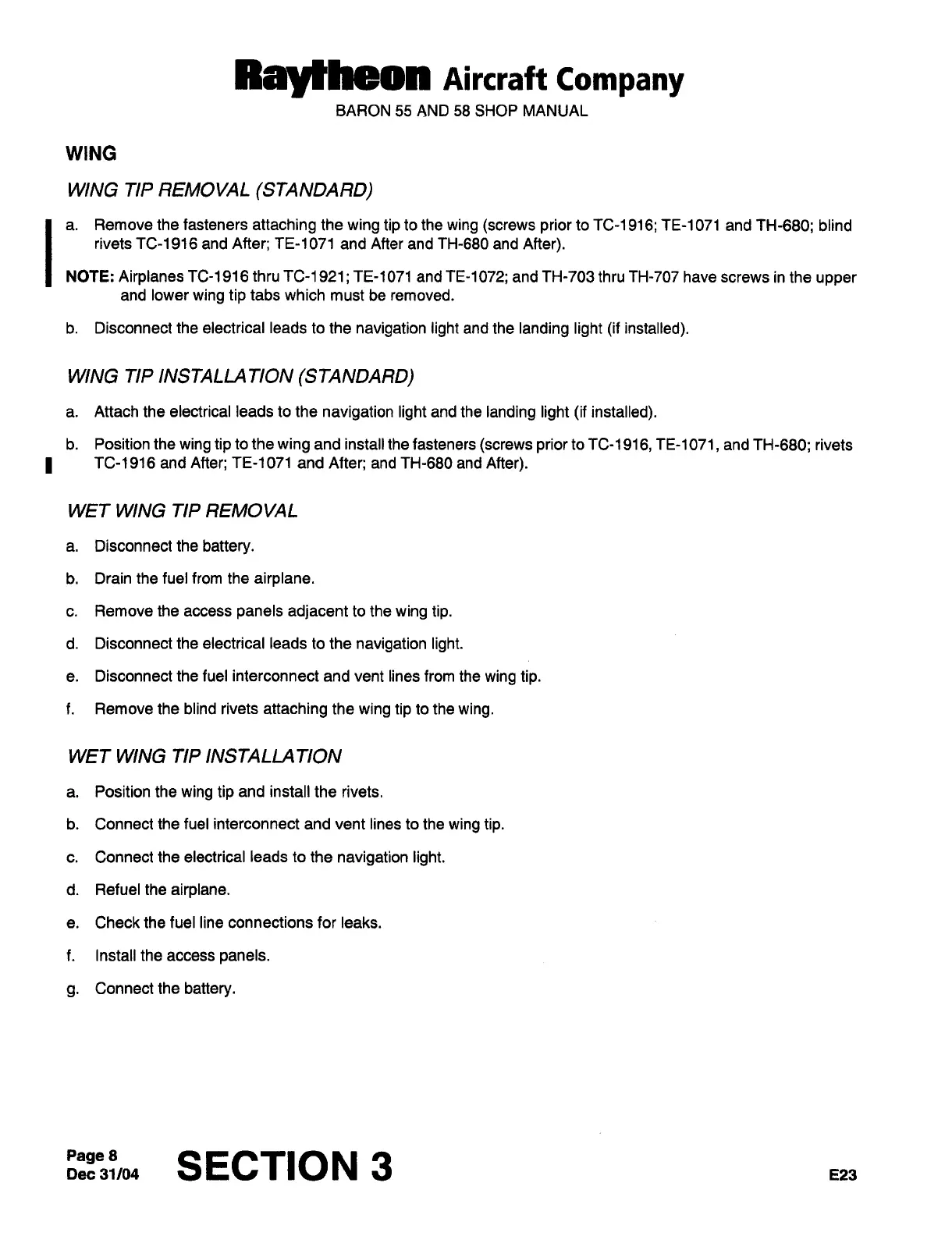

Raytheon Beech Baron E55 - Wing

Ral~heon
AiKraft
Campany
BARON
55
AND
58
SHOP MANUAL
WING
WING
TIP
REMOVAL
(STANDARD)
I
a.
Remove
the
fasteners
attaching
the
wing tip
to
the
wing (screws
prior
to
TC-1916;
TE-1071 and
TH-680;
blind
rivets
TC-1916
and
After;
TE-1071
and
After and TH-680
and
After).
NOTE:
Airplanes
TC-1916
thru
TC-1921;
TE-1071 and
TE-1072;
and
TH-703
thru TH-707
have
screws
in the
upper
and lower
wing
tip
tabs which
must
be removed.
b.
Disconnect the
electrical
leads
to
the
navigation light
and
the
landing light
(if
installed).
WING
TIP
INSTALLA
TION
(STANDARD)
a.
Attach the
electrical
leads
to
the
navigation light
and the
landing
light
(if installed).
b.
Position
the
wing tip
to
the
wing
and
install the
fasteners
(screws
prior
to
TC-1916,
TE-1071,
and
TH-680;
rivets
I
TC-1916
and
After;
TE-1071
and
After;
and
TH-680
and
After).
WET
WING
TIP
REMOVAL
a.
Disconnectthe
battery.
b. Drain the
fuel
from
the
airplane.
c.
Remove
the
access
panels adjacent
to
the
wing
tip.
d.
Disconnect
the electrical
leads
to
the
navigation light.
e.
Disconnect
the
fuel interconnect
and
vent
lines from the
wing tip.
f. Remove the blind rivets
attaching
the
wing
tip
to
the
wing.
WET
WING TIP
INSTALLATION
a.
Position
the
wing
tip
and
install
the rivets.
b.
Connect
the
fuel
interconnect and
vent
lines
to
the
wing tip.
c.
Connect
the
electrical
leads
to the
navigation
light.
d.
Refuel
theairplane.
e.
Check
the fuel line connections for
leaks.
f. Install the
access
panels.
g.
Connectthe
battery.
Page
8Dec
31/04
SECTION
3
E23
