Raytheon Beech Baron E55 - Seats

RBylheO´•
AiKraft
Company
BARON
55
AND
58
SHOP MANUAL

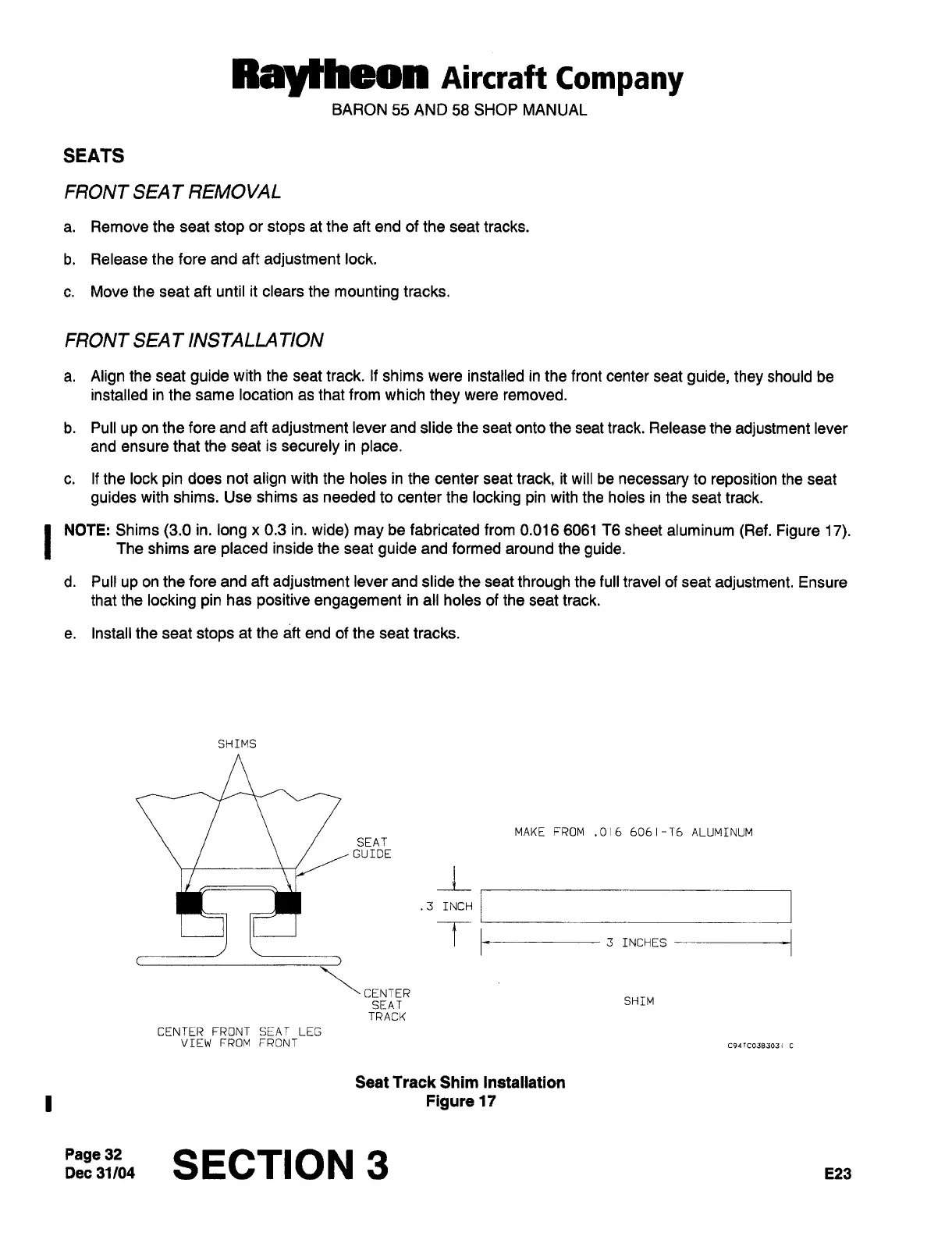

SEATS
FRONT SEA
T
REMOVAL
a.
Remove
the
seat
stop
or
stops
at
the aftend of the
seat
tracks.
b. Release
the fore and
aft
adjustment
lock.
c.
Move
the
seat
aft
until it
clears the
mounting
tracks.
FRONT SEA
T
INSTALL(I\
TION
a.
Align
the
seat
guide
with the
seat
track.
If
shims
were
installed
in
the
front
center
seat
guide,
they
should be
installed
in
the
same
location
as
that
from
which
they
were
removed.
b. Pull
up
on
the fore and
aft
adjustment
lever and
slide the
seat onto
the
seat
track.
Release
the
adjustment
lever
and
ensure
that the
seat
is
securely
in
place.
c.
If
the
lock
pin
does
not
align
with
the
holes in
the
center seat
track,
it
will
be
necessary
to
reposition
the
seat
guides
with shims. Use
shims
as
needed
to center
the
locking pin
with the
holes
in
the
seat
track.
I
NOTE: Shims
(3.0
in.
long
x
0.3
in.
wide)
may
be
fabricated
from
0.016 6061
T6
sheet
aluminum
(Ref.
Figure
17).
The shims
are
placed
inside
the
seat
guide
and
formed
around
the
guide.
d. Pull
up
on
the fore and
aft
adjustment
lever and
slide
the
seat
through
the
full
travel of
seat
adjustment.
Ensure
that
the
locking
pin
has
positive
engagement
in
all
holes
of
the
seat
track.
e.
Install
the
seat
stops
at
the aft end of the
seat
tracks.
SHIMS
MAKE
FROM
.016
bObl-Tb
ALUMTNUM
SEAT
GUIDE
.3
INCH
I
1-~--
3 INC~EG
----~-----I
CENTER
SEAT
SHIM
TRACK
CENTER
FRONT SEAT
LEG
VTEW
FROM FRONT
Seat
Track
Shim
Installation
Figure
17
Page
32Dec
31/04
SECTION
3
E23
