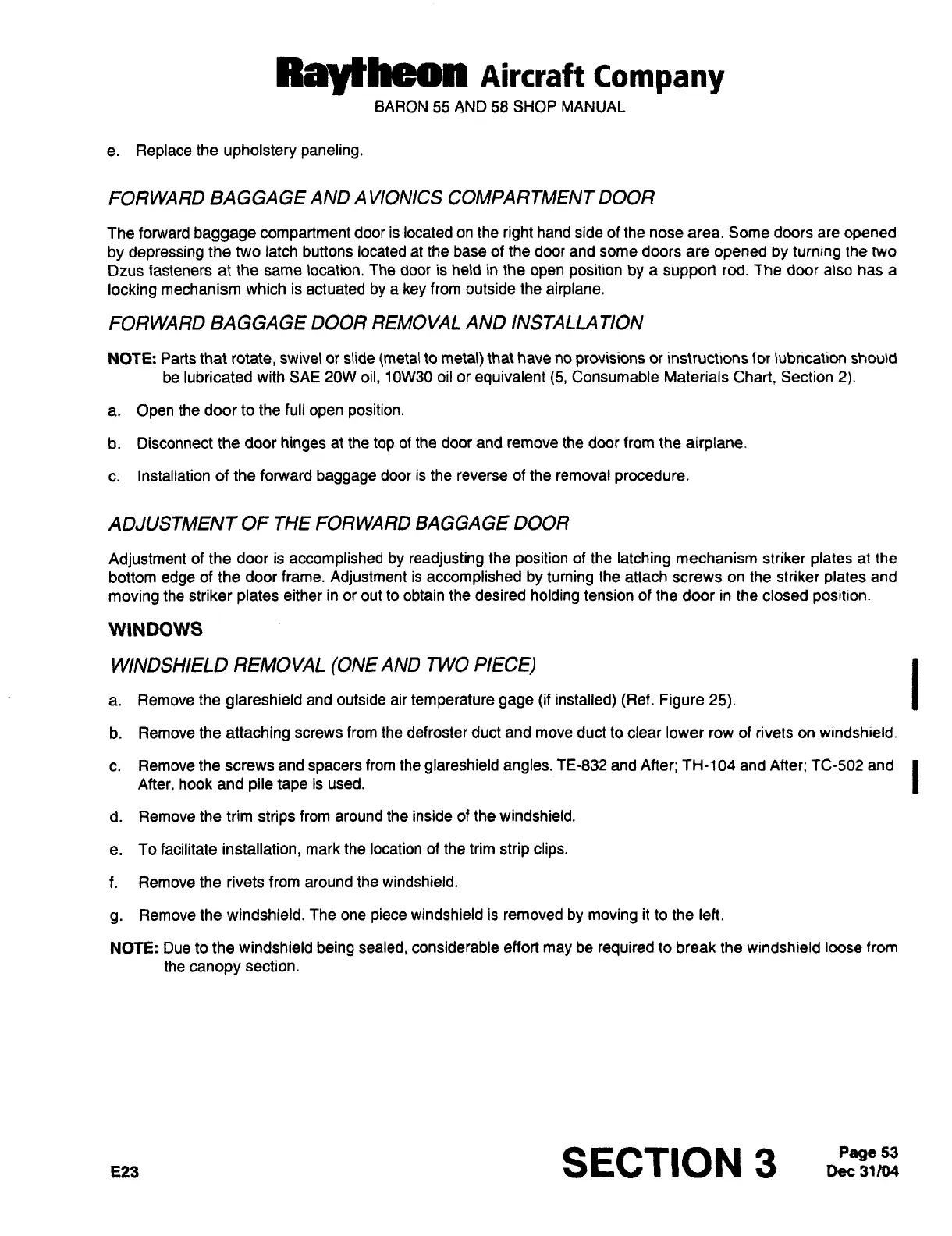

BARON
55
AND
58
SHOP
MANUAL
e.
Replace
the
upholstery
paneling.
FORWARD
BAGGAGE
AND
A VIONICS COMPARTMENT
DOOR
The forward
baggage
compartment
door
is located
on
the
right
hand side of
the
nose area.
Some
doors
are
opened
by
depressing
the
two
latch buttons
located
at
the
base
of the
door and
some
doors
are
opened
by
turning
the
two
Dzus
fasteners
at
the
same
location.
The
door is
held in the
open
position
by
a
support
rod.
The
door
also
has
a
locking
mechanism
which
is
actuated
by
a
key
from outside
the
airplane.
FORWARD
BA
GGAGE
DOOR REMOVAL
AND
INSTALLA
TION
NOTE:
Parts
that
rotate,
swivel
or
slide
(meta\
to
metal)
that have
no
provisions
or
instructions
for lubrication
should
be
lubricated
with
SAE
20W
oil,
10W30
oil
or
equivalent
(5,
Consumable
Materials
Chart,
Section
2).
a.
Open
the
door
to
the
full
open
position.
b.
Disconnect
the
door
hinges
at
the
top
of
the
door and
remove
the door from
the
airplane.
c.
Installation of
the
forward
baggage
door
is
the
reverse
of
the
removal
procedure.
ADJUSTMENT
OF
THE
FORWARD BAGGAGE DOOR
Adjustment
of the
door
is
accomplished
by
readjusting
the
position
ofthe
latching
mechanism
striker
plates
at
the
bottom
edge
of the
door
frame.
Adjustment
is
accomplished
by tuming
the
attach
screws
on
the
striker
plates
and
moving
the
striker
plates
either
in
or
out
to
obtain
the
desired
holding
tension
of
the door
in the
closed
position.
WINDOWS
WINDSHIELD
REMOVAL
(ONE
AND
TWO
PIECE)
I
a.
Remove
the
glareshield
and outside
air
temperature
gage
(if
installed)
(Ref.
Figure
25).
b. Remove
the
attaching
screws
from
the
defroster
duct and
move
duct
to
clear lower
row
of
rivets
on
windshield.
c.
Remove
the
screws
and
spacers
from
the
glareshield angles.
TE-832
and
After;
TH-104
and
After;
TC-502
and
I
After,
hook
and
pile
tape
is
used.
d. Remove
the trim
strips
from
around
the inside
of
the windshield.
e.
To
facilitate
installation,
mark the location
of
the
trim
strip
clips.
f.
Remove
the rivets
from around the
windshield.
g.
Remove
the
windshield.
The
one
piece
windshield
is removed
by
moving
it
to
the
left.
NOTE:
Due
to
the
windshield
being
sealed,
considerable
effort
may
be
required
to
break
the windshield
loose
from
the
canopy
section.
ees
