Raytheon Beech Baron E55 - Page 202

Raytheon
nircraft
Company
BARON
55
AND
58
SHOP
MANUAL
DEFROSTER DUCT
ATTACHING SCREW
GLARESHIELD
ANGLE
DEFROSTER
DUCT
GLFlRESHIELD
GLARESHIELD
ANGLE
ATTACHING
SCREW
WINDSHIELD
FRAME
GLARESHIELD
ANGLE
THOJB
991752F1R

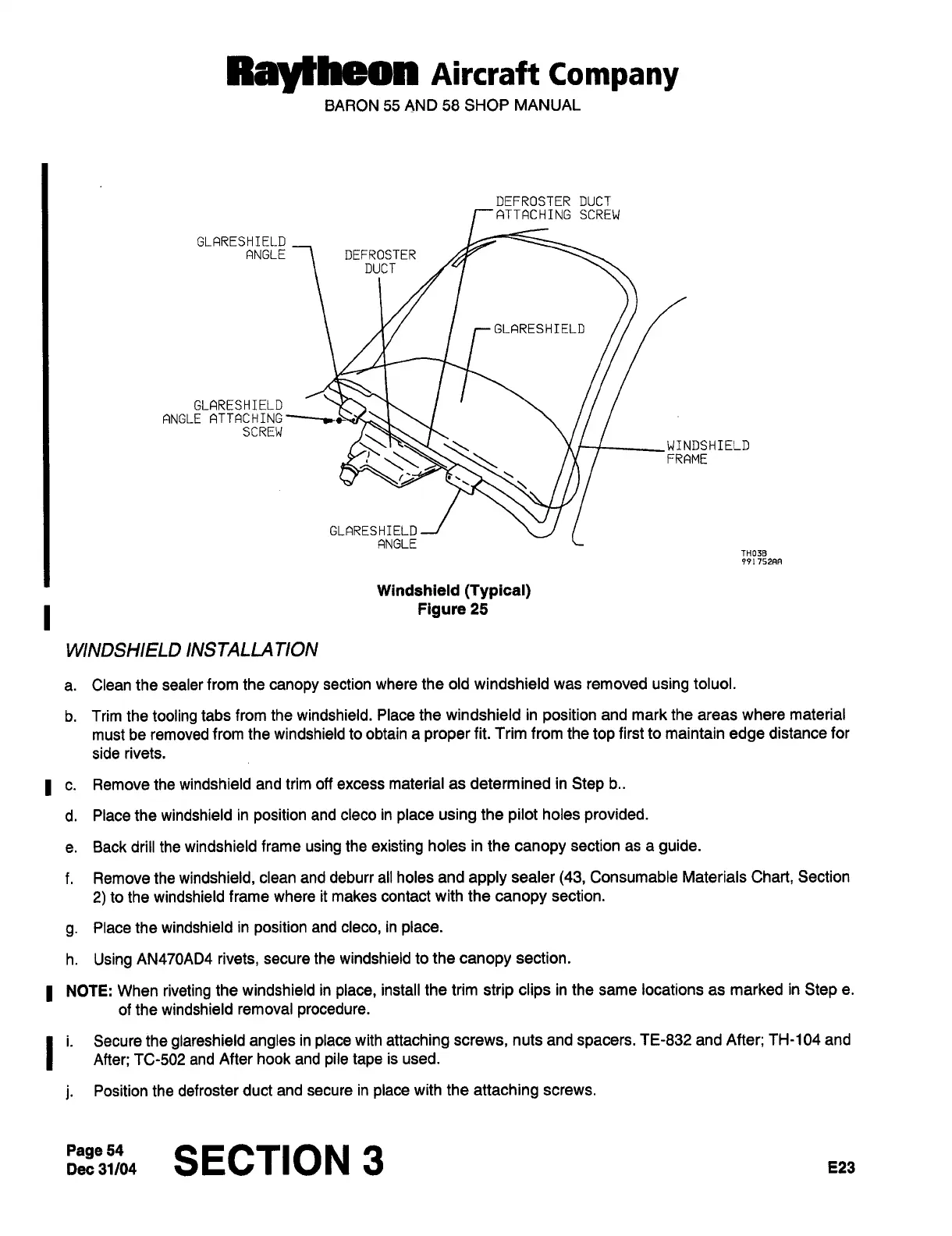

Windshield
(Typical)
I
Figure?l
WINDSHIELD
INSTALLA
TION
a.
Clean
the
sealer
from the
canopy
section
where the
old windshield
was
removed
using
toluol.
b.
Trim
the
tooling
tabs
from the windshield.
Place
the windshield
in
position
and
mark
the
areas
where material
must
be
removed
from the
windshield
to
obtain
a
proper
fit.
Trim
from the
top
first
to
maintain
edge
distance
for
side
rivets.
I
c.
Remove
the
windshield
and trim
off
excess
material
as
determined in
Step
b..
d.
Place the
windshield
in
position
and cleco
in
place
using
the
pilot
holes
provided.
e.
Back
drill
the
windshield
frame
using
the
existing
holes
in
the
canopy
section
as a
guide.
f.
Remove the
windshield,
clean and
deburr all holes
and
apply
sealer
(43,
Consumable Materials
Chart,
Section
2)
to
the
windshield
frame
where it makes
contact
with the
canopy
section.
g.
Place the
windshield
in
position
and
cleco,
in
place.
h.
Using
AN470AD4
rivets,
secure
the windshield
to
the
canopy
section.
I
NOTE:
When
riveting
the
windshield
in
place,
install
the
trim
strip clips
in the
same
locations
as
marked
in
Step
e.
of the
windshield
removal
procedure.
ii’
Secure
the
glareshield
angles
in
place
with
attaching
screws,
nuts
and
spacers.
TE-832 and
After;
TH-104
and
After;
TC-502
and
After hook and
pile
tape
is used.
j.
Position
the
defroster
duct and
secure
in
place
with the
attaching
screws.
Page
54Dec
31/04
SECTION
3
E23
