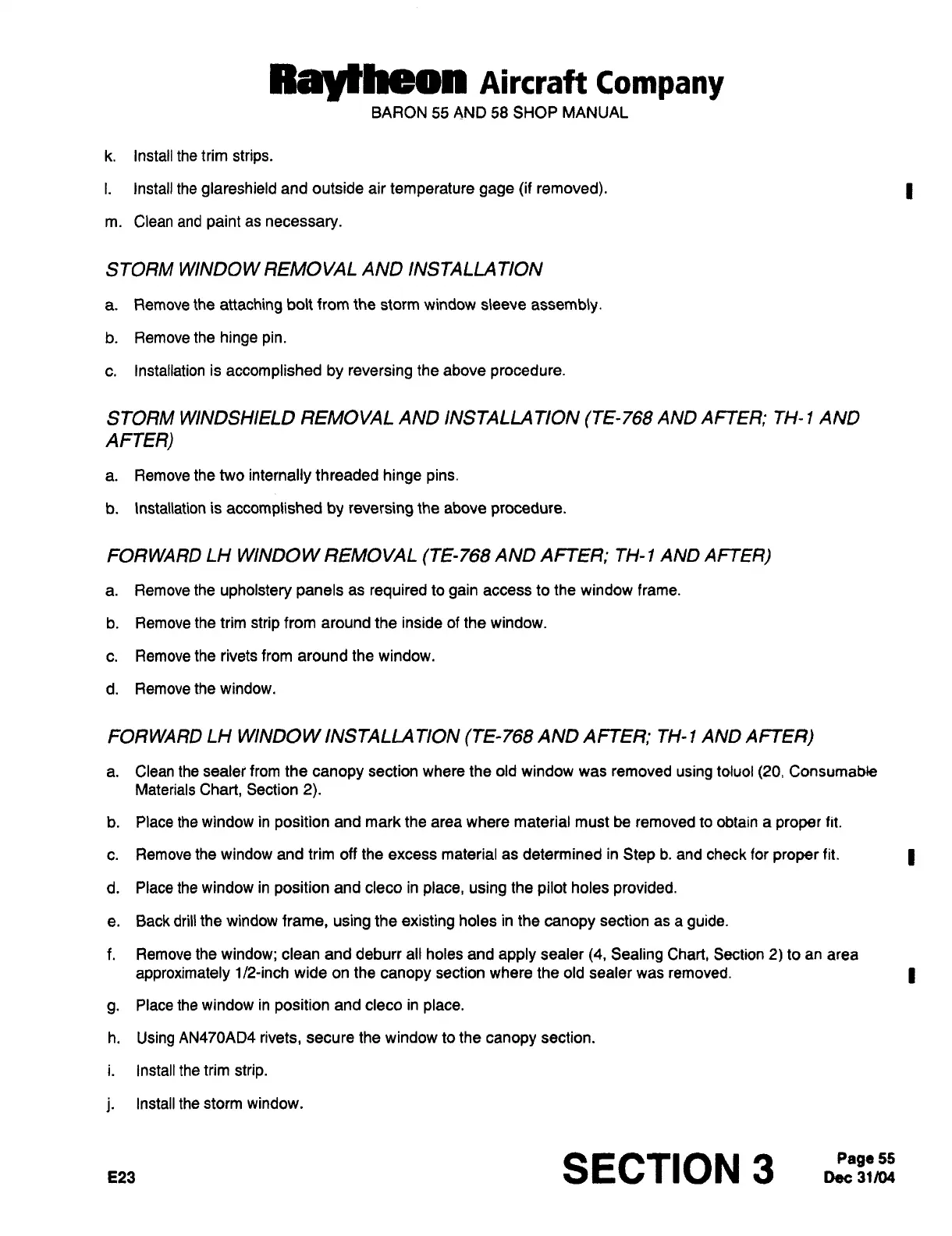

k.
Install
the
trim
strips.
i.
Install the
glareshield
and
outside
air
temperature
gage
(if
removed).
m.
Clean
and
paint
as
necessary.
STORM
WINDOW
REMOVAL AND INSTALLA
TION
a.
Remove
the
attaching
bolt from the
storm
window
sleeve
assembly.
b.
Removethe
hingepin.
c.
Installation
is
accomplished
by reversing
the above
procedure.
STORM
WINDSHIELD
REMOVAL
AND
INSTALLA
TION
(TE-768
AND
AFTER;
TH-
I
AND
AFTER)
a.
Remove the
two
internally
threaded
hinge
pins.
b.
lnstaliation
is
accomplished
by
reversing
the above
procedure.
FORWARD
LH
WINDOW REMOVAL
(TE-768
AND
AFTER;
TH-
1 AND
AFTER)
a.
Remove
the
upholstery
panels
as
required
to
gain
access
to
the
window frame.
b.
Remove
the
trim
strip
from
around
the inside
of
the window.
c.
Remove the rivets from
around
the
window.
d.
Remove
the window.
FORWARD
LH
WINDOW
INSTALLA
TION
(TE-768
AND
AFTER;
TH-
I
AND
AFTER)
a.
Clean
the sealet
from
the
canopy
section
where
the
old
window
was
removed
using
toluol
(20,
Consuma~
Materials
Chart,
Section
2).
b.
Place the window
in
position
and mark the
area
where
material
must
be
removed
to
obtain
a
proper
fit.
c.
Remove
the window and
trim
off
the
excess
material
as
determined
in
Step
b.
and
check
for
proper
fit.
d.
Place
the
window in
position
and cleco in
place, using
the
pilot
holes
provided.
e.
Back
drill the window
frame,
using
the
existing
holes
in
the
canopy
section
as
a
guide.
f. Remove
the
window;
clean and deburr all holes
and
apply
sealer
(4,
Sealing
Chart,
Section
2)
to
an
area
approximately
1/2-inch
wide
on
the
canopy
section where
the
old
sealer
was
removed.
g.
Place
the
window
in
position
and
cleco
in
place.
h.
Using
AN470AD4
rivets,
secure
the window
to
the
canopy
section.
i.
Install
the
trim
strip.
j.
Install
the
storm
window.
E23
