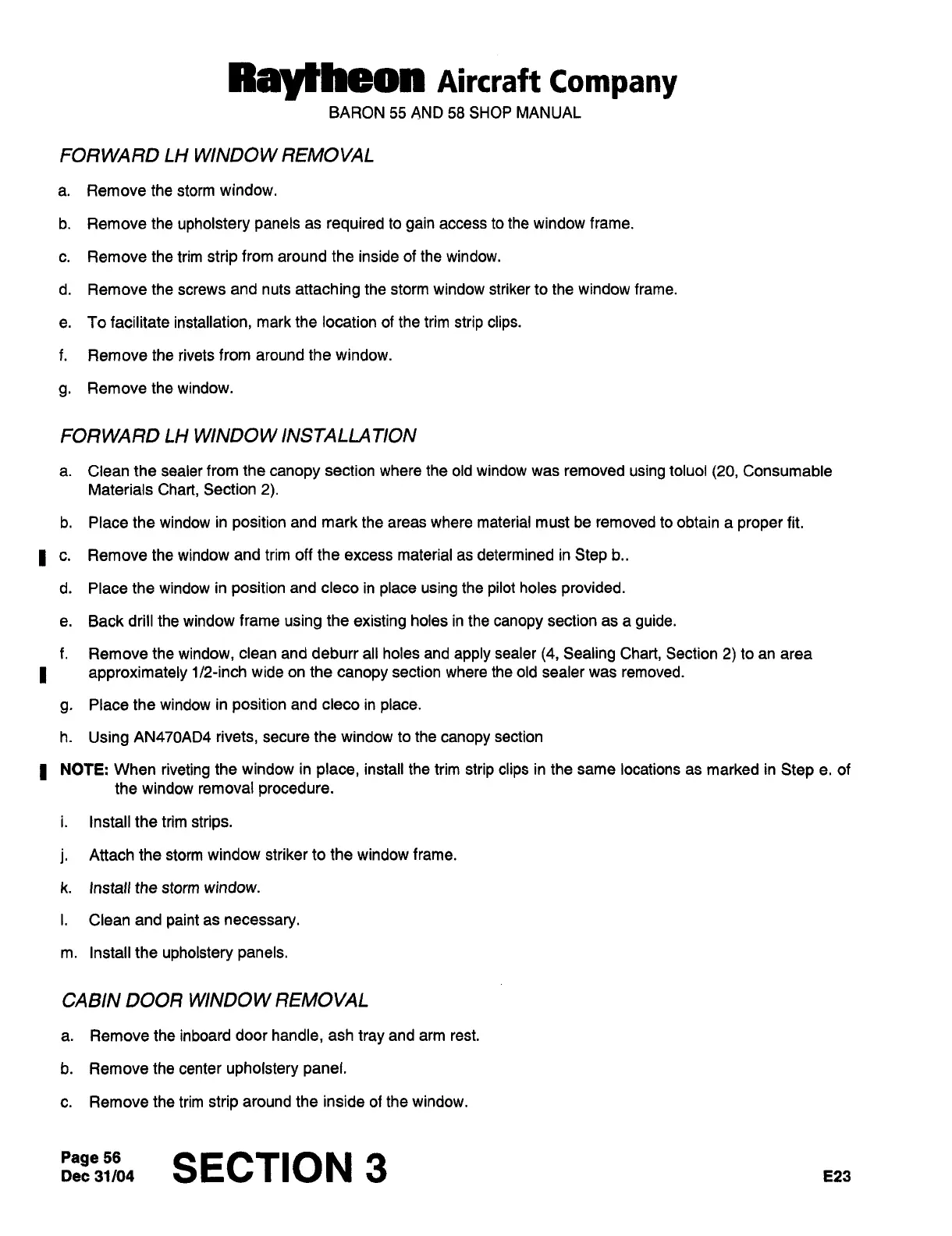

Raytheon Beech Baron E55 - Page 204

RaylheMI
Aircraft
Company
BARON
55
AND
58
SHOP MANUAL
FORWARD
LH
WINDOW
REMOVAL
a.
Remove
the
storm
window.
b.
Remove
the
upholstery
panels
as
required
to
gain
access
to
the
window
frame.
c.
Remove
the
trim
strip
from around the
inside
of the
window.
d. Remove
the
screws
and
nuts
attaching
the
storm
window striker
to
the
window
frame.
e.
To facilitate
installation,
mark the location of the
trim
strip
clips.
f.
Remove
the
rivets
from around
the
window.
g.
Remove
thewindow.
FORWARD
LH
WINDOW
INSTALLA
TION
a.
Clean
the
sealer
from the
canopy
section
where
the old
window
was
removed
using
toluol
(20,
Consumable
Materials
Chart,
Section
2).
b. Place
the
window
in
position
and
mark the
areas
where material
must
be removed
to
obtain
a
proper
fit.
c.
Remove
the
window
and
trim
off the
excess
material
as
determined in
Step
b..
d.
Place
the window
in
position
and cleco
in
place
using
the
pilot
holes
provided.
e.
Back
drill
the window
frame
using
the
existing
holes in the
canopy
section
as a
guide.
f.
Remove
the
window,
clean and deburr
all
holes
and
apply
sealer
(4,
Sealing
Chart,
Section
2)
to
an
area
approximately
i/2-inch
wide
on
the
canopy
section where
the
old sealer
was
removed.
g.
Place
the
window
in
position
and cleco
in
place.
h.
Using
AN470AD4
rivets,
secure
the
window
to
the
canopy
section
I
NOTE:
When
riveting
the
window
in
place,
install the
trim
strip clips
in the
same
locations
as
marked
in
Step
e.
of
the
window
removal
procedure.
i.
Install
the
trim
strips.
j.
Attach
the
storm
window
striker
to
the
window
frame.
k.
Install
the
storm
window.
i.
Clean
and
paint
as
necessary.
m.
Install
the
upholstery
panels.
CABIN DOOR
WINDOW REMOVAL
a.
Remove
the inboard
door
handle,
ash
tray
and
arm
rest.
b.
Remove
the
center
upholstery
panel.
c.
Remove
the
trim
strip
around the
inside
of the window.
Page
56Dec
31/04
SECTION
3
