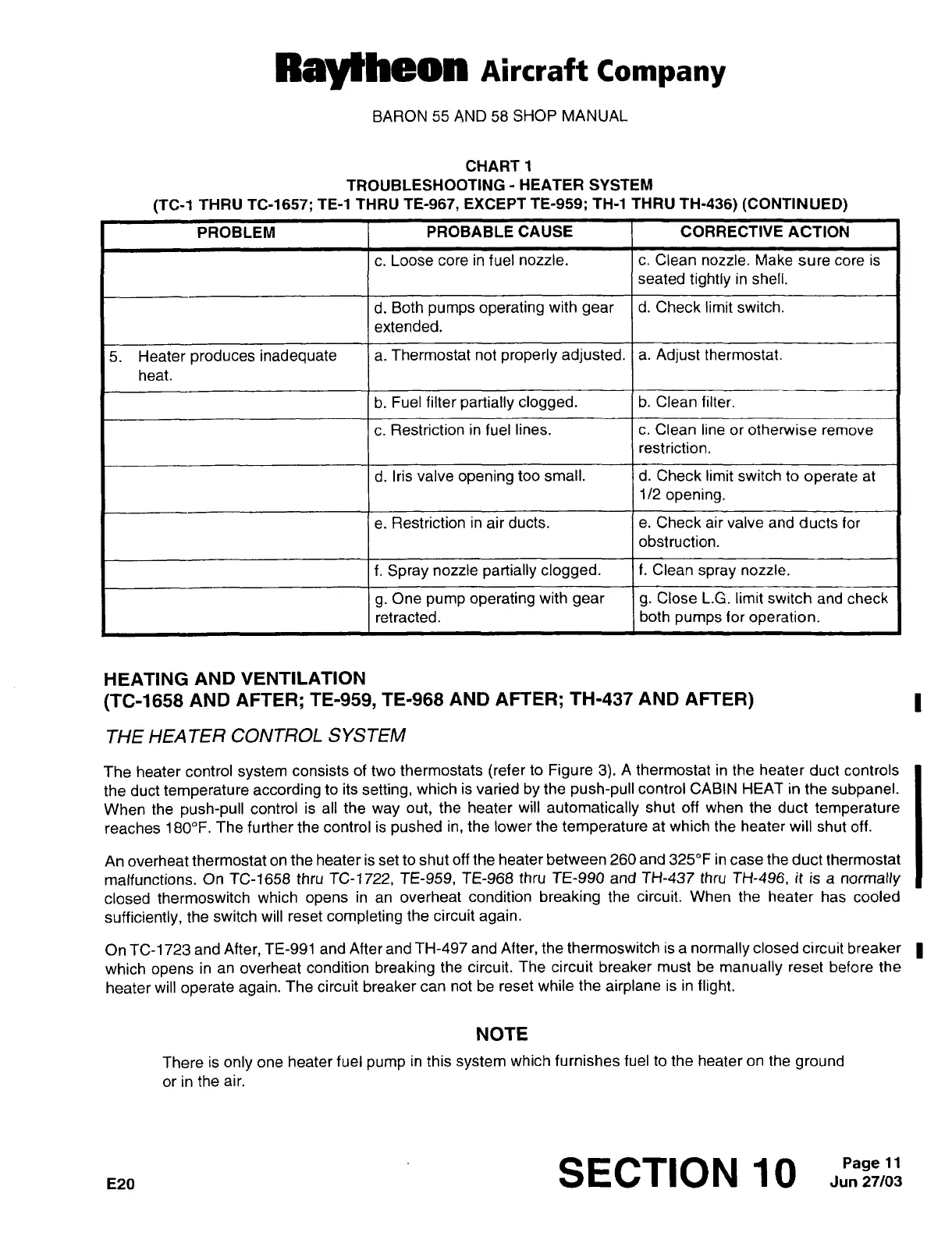

BARON
55
AND
58
SHOP
MANUAL
CHART1
TROUBLESHOOTING
HEATER
SYSTEM
(76-1
THRU
TC-1657;
TE-I
THRU
TE-967,
EXCEPT
TE-959;
TH-1
THRU
TH-436) (CONTINUED)
PROBLEM
PROBABLE
CAUSE
CORRECTIVE ACTION
c.
Loose
core
in
fuel
nozzle.
c.
Clean
nozzle.
Make
sure core
is
seated
tightly
in
shell.
d.
Both
pumps
operating
with
gear
d.
Check
limit switch.
extended.
5.
Heater
produces
inadequate
a.
Thermostat
not
properly
adjusted.
I
a.
Adjust
thermostat.
heat.
b.
Fuel
filter
partially
clogged,
b.
Clean
filter.
c.
Restriction
in
fuel
lines.
c.
Clean
line
or
otherwise
remove
restriction.
d.
Iris
valve
opening
too
small.
d.
Check
limit switch
to
operate
at
1/2
opening.
e.
Restriction
in
air
ducts.
e.
Check air
valve and
ducts
for
obstruction.
f.
Spray
nozzle
partially
clogged.
f.
Clean
spray
nozzle.
g.
One
pump
operating
with
gear g.
Close
L.G.
limit
switch
and
check
retracted.
both
pumps
for
operation.
HEATING
AND
VENTILATION
(TC-1658
AND
AFTER; TE-959,
TE-968
AND
AFTER;
TH-437
AND
AFTER)
THE
HEA
TER
CONTROL
SYSTEM
The
heater
control
system
consists
of
two
thermostats
(refer
to
Figure
3).
A
thermostat
in the heater
duct
controls
the duct
temperature
according
to
its
setting,
which
is
varied
by
the
push-pull
control
CABIN
HEAT
in the
subpanel.
When
the
push-pull
control
is
all the
way
out,
the heater
will
automatically
shut
off
when the duct
temperature
reaches
180"F.
The further the
control is
pushed
in,
the
lower
the
temperature
at
which
the
heater will
shut
off.
An
overheat
thermostat
on
the heater is
set to
shut
off
the
heater
between
260 and
325"F in
case
the
duct
thermostat
malfunctions.
On
TC-1658
thru
TC-1722,
TE-959,
TE-968
thru
TE-990
and
TH-437
thru
TH-496,
it is
a
normally
closed
thermoswitch
which
opens
in
an
overheat
condition
breaking
the
circuit. When
the heater
has
cooled
sufficiently,
the
switch
will
reset
completing
the
circuit
again.
On
TC-1723
and
After,
TE-991
and
After
and
TH-497 and
After,
the
thermoswitch
is
a
normally
closed circuit
breaker
which
opens
in
an
overheat
condition
breaking
the
circuit.
The
circuit
breaker
must
be
manually
reset
before
the
heater
will
operate
again.
The
circuit
breaker
can
not be
reset
while
the
airplane
is
in
flight.
NOTE
There
is
only
one
heater
fuel
pump
in this
system
which furnishes fuel
to
the
heater
on
the
ground
or
in
the
air.
