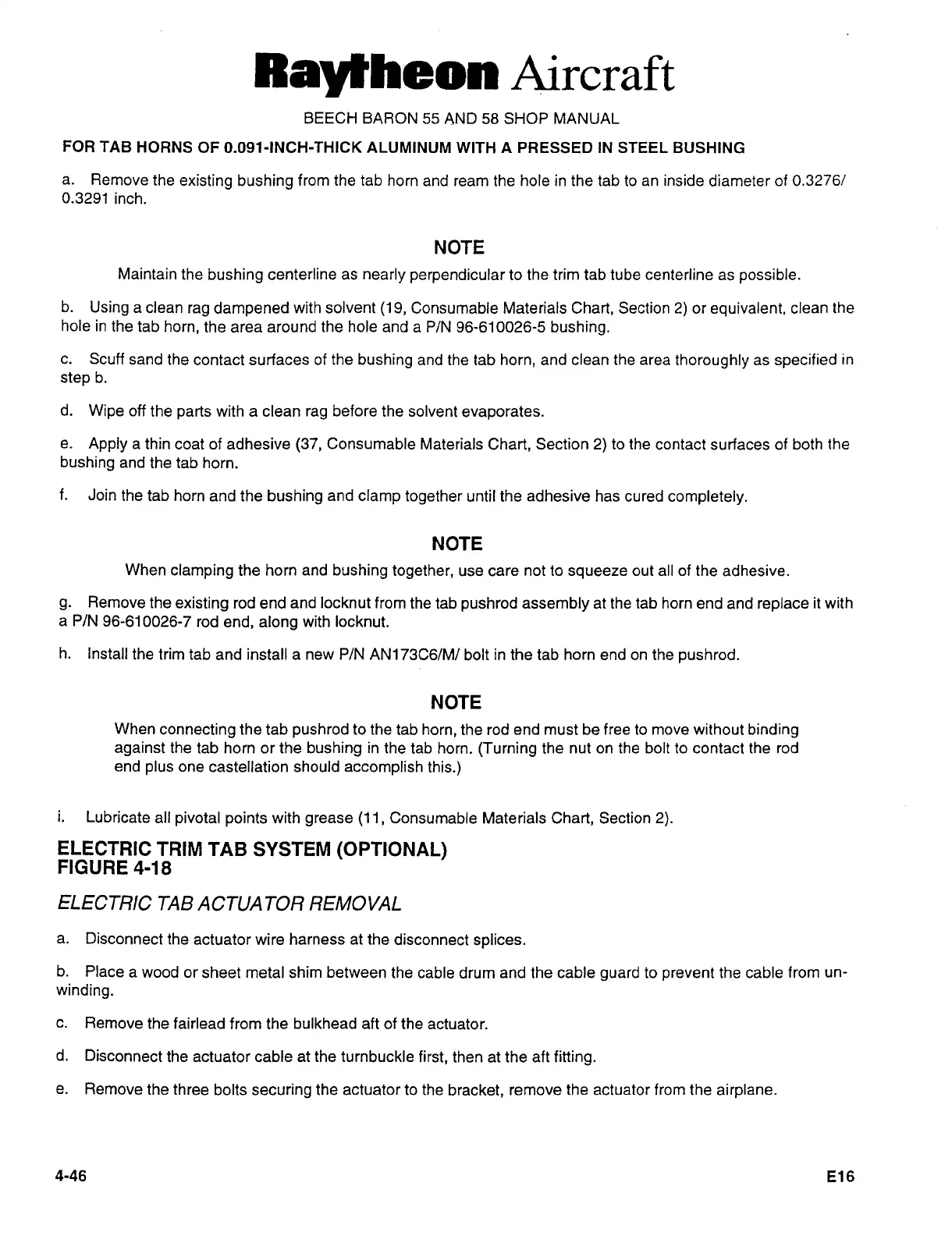

Raytheon
Aircraft
BEECH
BARON
55
AND
58
SHOP
MANUAL
FOR
TAB
HORNS
OF
0.091-INCH-THICK
ALUMINUM
WITH
A
PRESSED
IN
STEEL
BUSHING
a.
Remove
the
existing
bushing
from
the
tab
horn
and
ream
the
hole
in
the
tab
to
an
inside
diameter
of
0.3276/
0.3291
inch.
NOTE
Maintain
the
bushing
centerline
as
nearly
perpendicular
to
the
trim
tab
tube
centerline
as
possible.
b.
Using
a
clean
rag
dampened
with
solvent
(19,
Consumable
Materials
Chart,
Section
2)
or
equivalent,
clean
the
hole
in
the
tab
horn,
the
area
around
the
hole
and
a
P/N
96-610026-5
bushing.
c.
Scuff
sand
the
contact
surfaces
of
the
bushing
andthe
tab
horn,
and
clean
the
area
thoroughly
as
specified
in
step
b.
d.
Wipe
off
the
parts
with
a
clean
rag
before
the
solvent
evaporates.
e.
Apply
a
thin
coat
of
adhesive
(37,
Consumable
Materials
Chart,
Section
2)
to
the
contact
surfaces
of
both
the
bushing
and
the
tab
horn.
f.
Join
the
tab
horn
and
the
bushing
and
clamp
together
until
the
adhesive
has
cured
completely.
NOTE
When
clamping
the
horn
and
bushing
together,
use
care
not
to
squeeze
out
all
of
the
adhesive.
g.
Remove
the
existing
rod
end
and
locknut
from
the
tab
pushrod
assembly
at
the
tab
horn
endand
replace
it
with
a
P/N
96-610026-7
rod
end,
along
with
locknut.
h.
Install
the
trim
tab
and
install
a
new
P/N
AN173C6/M/
bolt
in
the
tab
horn
end
on
the
pushrod.
NOTE
When
connecting
the
tab
pushrod
to
the
tab
horn,
the
rod
end
must
be
free
to
move
without
binding
against
thetab
horn
or
the
bushing
in
the
tab
horn.
(Turning
the
nut
on
the
bolt
to
contact
the
rod
end
plus
one
castellation
should
accomplish
this.)
i.
Lubricate
all
pivotal
points
with
grease
(11,
Consumable
Materials
Chart,
Section
2).
ELECTRIC
TRIM
TAB
SYSTEM
(OPTIONAL)
FIGURE
4-18
ELECTRIC
TAB
ACTUA
TOR
REMOVAL
a.
Disconnect
the
actuator
wire
harness
at
the
disconnect
splices.
b.
Place
a
wood
or
sheet
metal
shim
between
the
cable
drum
and
the
cable
guard
to
prevent
the
cable
from
un-
winding.
c.
Remove
the
fairlead
from
the
bulkhead
aft
of
the
actuator.
d.
Disconnect
the
actuator
cable
at
the
turnbuckle
first,
then
at
the
aft
fitting.
e.
Remove
the
three
bolts
securing
the
actuator
to
the
bracket,
remove
the
actuator
from
the
airplane.
