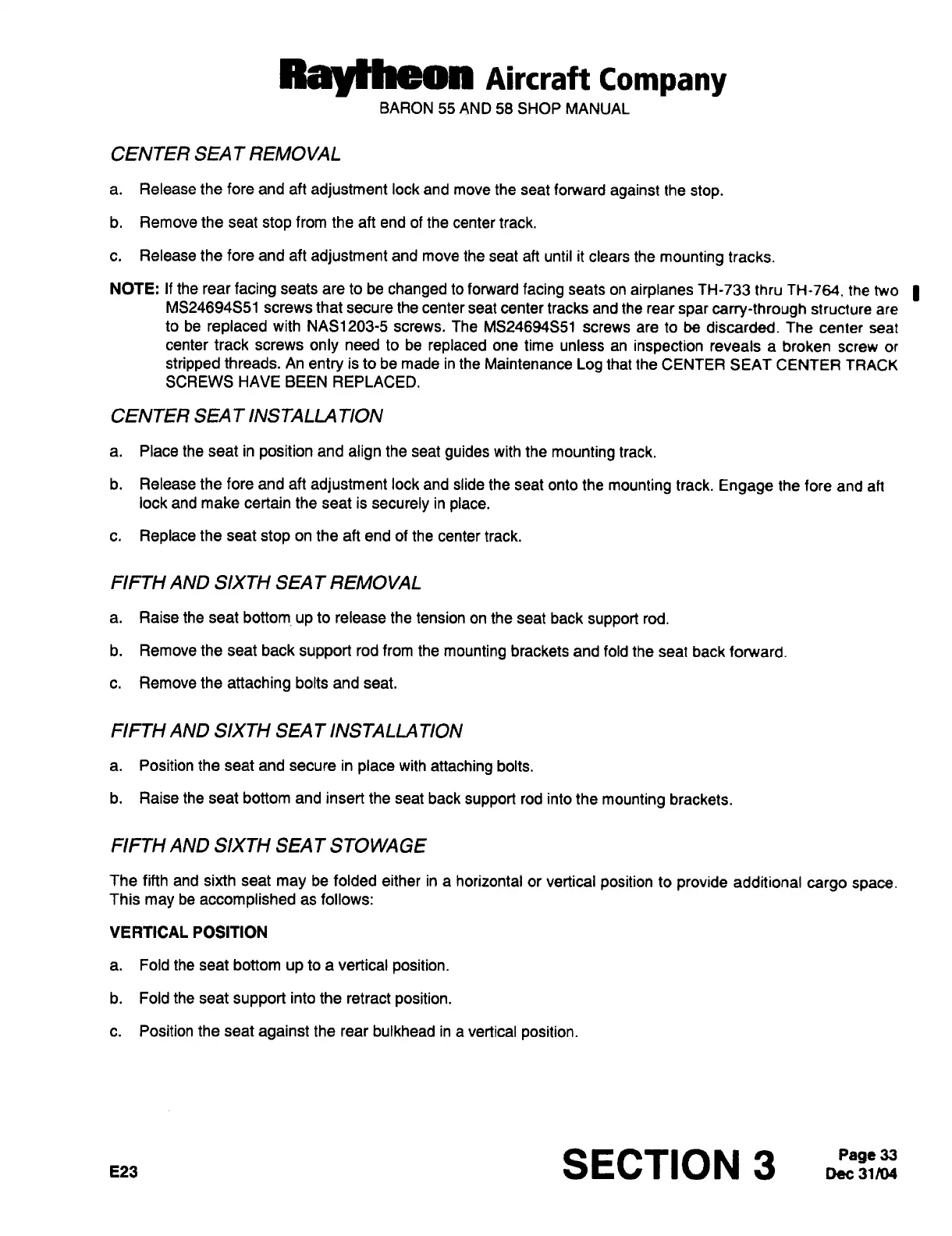

REMOVAL
a.
Release the fore and aft
adjustment
lock
and
move
the
seat
forward
against
the
stop.
b.
Remove the
seat
stop
from
the
aft
end
of
the
center
track.
c.
Release the
fore
and aft
adjustment
and
move
the
seat
aft
until it clears the
mounting
tracks.
NOTE:
If
the
rear
facing
seats
are
to
be
changed
to
forward
facing
seats
on
airplanes
TH-733
thru
TH-764,
the
two
MS24694S51
screws
that
secure
the
center
seat center
tracks
and the
rear
spar carry-through
structure
are
to
be
replaced
with
NAS1203-5
screws.
The
MS24694S51
screws
are
to
be
discarded. The
center
seat
center
track
screws
only
need
to
be
replaced
one
time
unless
an
inspection
reveals
a
broken
screw
or
stripped
threads. An
entry
is
to
be made in
the Maintenance
Log
that the
CENTER
SEAT CENTER
TRACK
SCREWS
HAVE BEEN
REPLACED.
CENTER SEA
T
INSTALLA
TION
a.
Place
the
seat
in
position
and
align
the
seat
guides
with
the
mounting
track.
b.
Release the
fore and aft
adjustment
lock and slide
the
seat onto
the
mounting
track.
Engage
the
fore
and
ah
lock and
make
certain the
seat
is
securely
in
place.
c.
Replace
the
seat
stop
on
the aft
endof the
center
track.
FIFTH
AND
SIXTH SEA
T
REMOVAL
a.
Raise the
seat
bottom~
up
to
release
the tension
on
the
seat
back
support
rod.
b. Remove the
seat
back
support
rod from
the
mounting
brackets
and fold the
seat
back
forward.
c.
Remove
the
attaching
bolts and
seat.
FIFTH AND
SIXTH SEA
T
INSTALLA
TION
a.
Position the
seat
and
secure
in
place
with
attaching
bolts.
b.
Raise the
seat
bottom and insert
the
seat
back
support
rod into
the
mounting
brackets.
FIFTH AND
SIXTH SEA
T
STOWAGE
The fifth
and
sixth
seat
may
be
folded
either
in
a
horizontal
or
vertical
position
to
provide
additional
cargo
space.
This
may
be
accomplished
as
follows:
VERTICAL
POSITION
a.
Fold the
seat
bottom
up
to
a
vertical
position.
b. Fold the
seat
support
into the
retract
position.
c.
Position
the
seat
against
the
rear
bulkhead
in
a
vertical
position.
