95-110021-1
WASHER
(POSITION
WITH
COUNTERSINK
TOWARDS
WASHE
BOLT
HEAD)
5:~I:
12NB126
CINTERNAL
WRENCHING)
NUT
OR
130909B280
LH6422T126
CEXTERNAL
WRENCHING)
NUT
~95-110025-1
WASHER
BOLT
(POSITION
WITH
RADIUS
TOWARDS
WING FITTING)
WET
BOLT
TORQUE: 2,480
TO
2,600
INCH-POUNDS.
COAT THE COMPLETE
BOLT,
NUT,
WASHERS~
WING
FITTING BOLT BORES,
AND
EXPOSED BOLT
THREADS
WITH
MIL-C-16173~
GRADE
2
CORROSION PREVENTATIVE
COMPOUND.
~CHECK
WASHER
FOR
A
SMOOTH
CONTINUOUS
OUTER RADIUS.
~YNAS143-12
WASHERS
MAY BE USED AS REQUIRED
BETWEEN
THE
NUT AND
95-11025-1
WASHER
TO PROVIDE
A
PROPER BOLT
GRIP
ADJUSTMENT.
THOJB
0456L
LFIR

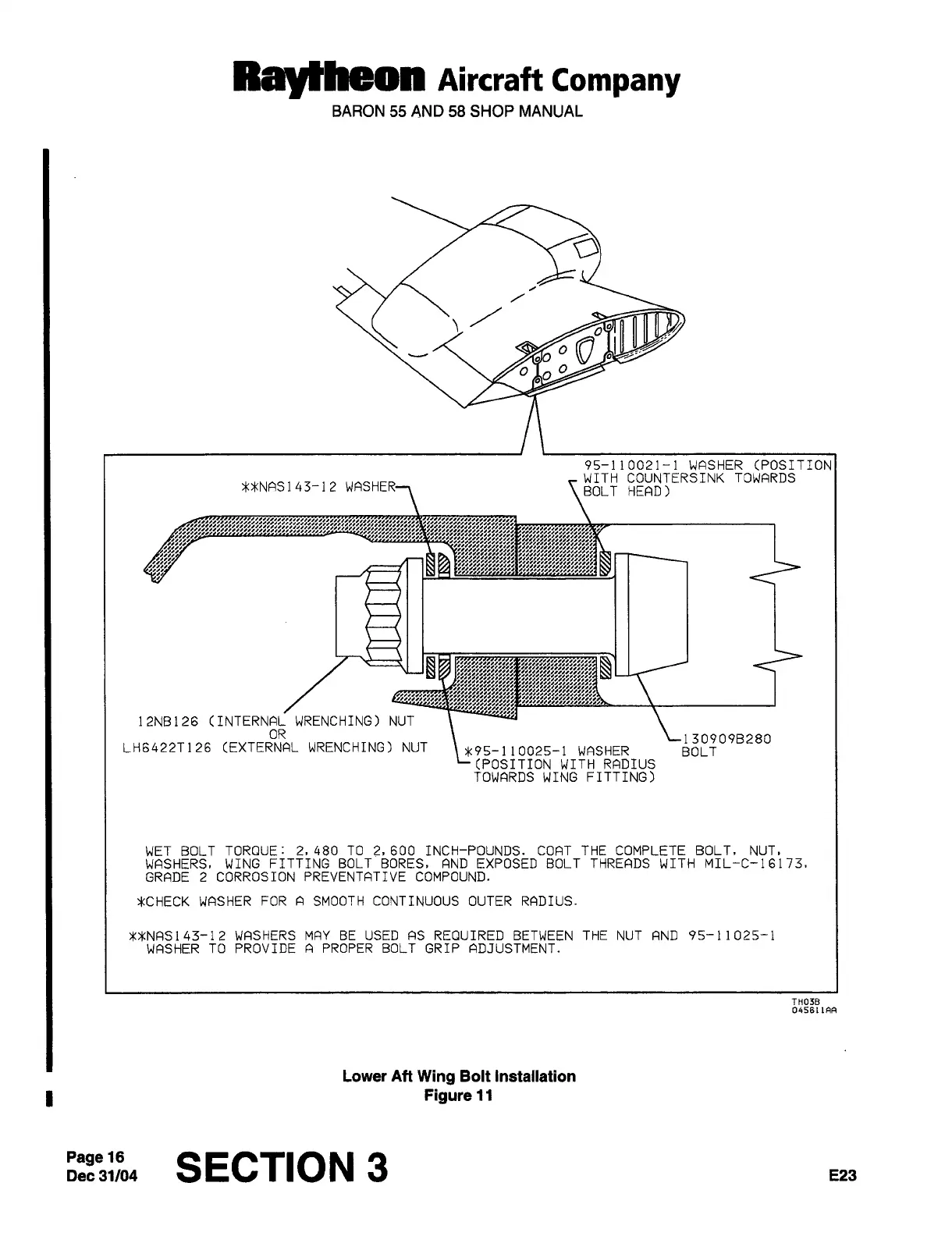

Lower Aft
Wing
Bolt
Installation
Figure
11
