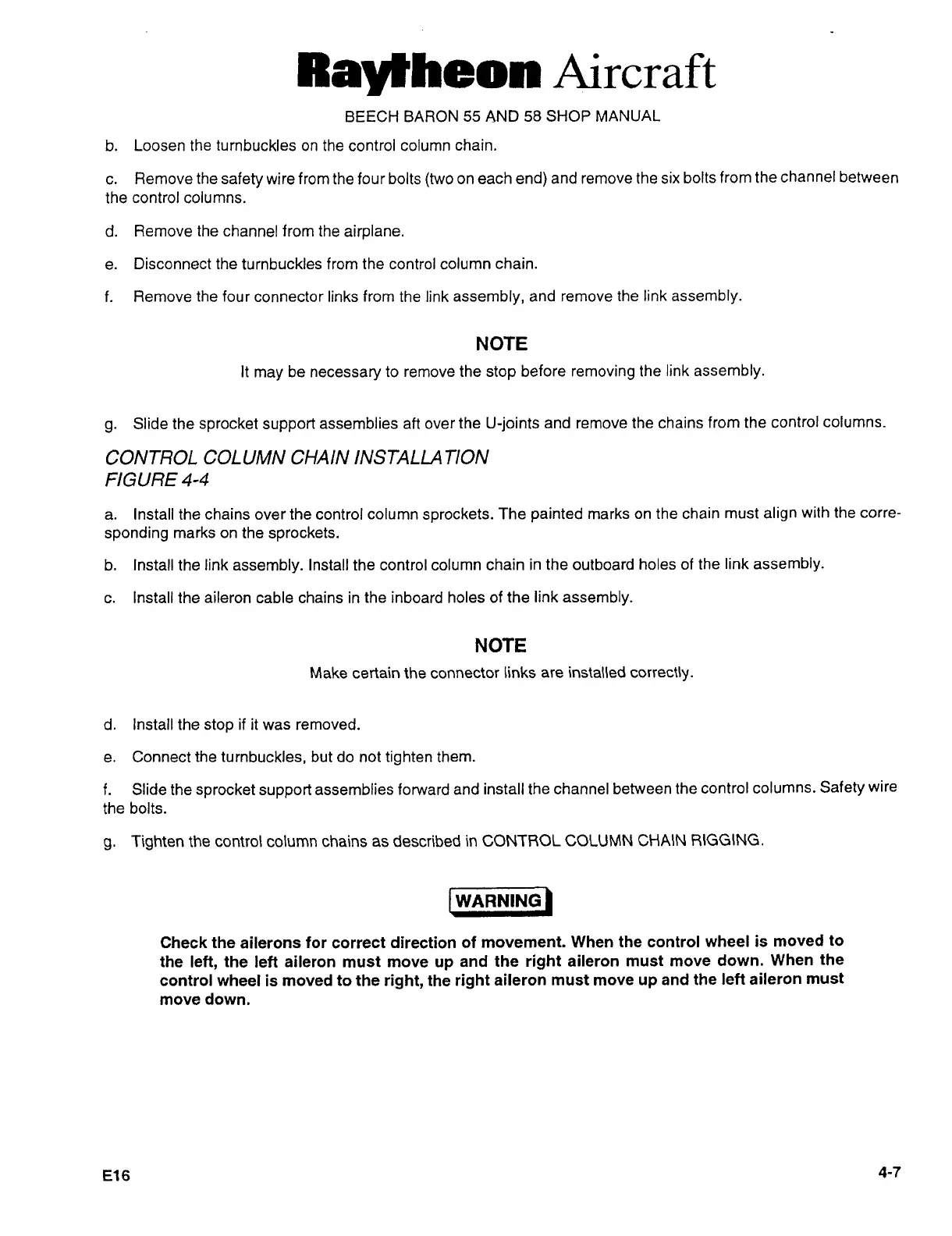

Raytheon Beech Baron E55 - Page 215

Raytheon
Aircraft
BEECH
BARON
55
AND
58
SHOP MANUAL
b.
Loosen
the
turnbuckles
on
the
control
column
chain.
c.
Remove the
safety
wire
from the four bolts
(two
on
each
end)
and
remove
the six
bolts
from
the
channel
between
the
control
columns.
d. Remove
the
channel
from
the
airplane.
e.
Disconnect
the
turnbuckles from
the
control
column chain.
f.
Remove
the
four
connector
links
from
the link
assembly,
and
remove
the link
assembly.
NOTE
It
may
be
necessary
to
remove
the
stop
before
removing
the
link
assembly.
g.
Slide
the
sprocket
support
assemblies
aft
over
the
U-joints
and
remove
the
chains
from the
control
columns.
CONTROL
COLUMN
CHAIN
INSTALLA TION
~GURE
4-4
a.
Install
the
chains
over
the control column
sprockets.
The
painted
marks
on
the
chain
must
align
with
the
corre-
sponding
marks
on
the
sprockets.
b. Install the
link
assembly.
Install
the
control
column chain
in the
outboard
holes
of the
link
assembly.
c.
Install
the
aileron cable chains
in
the
inboard holes
of
the
link
assembly.
NOTE
Make certain
the
connector
links
are
installed
correctly.
d. Install the
stop
if
it
was
removed.
e.
Connect
the
turnbuckles,
but
do
not
tighten
them.
f. Slide
the
sprocket
support
assemblies forward
and install
the
channel between
the
control
columns.
Safety
wire
the
bolts.
g.
Tighten
the control
column
chains
as
described
in
CONTROL COLUMN
CHAIN
RIGGING.
I
WARNING)
WARNING
Check
the
ailerons
for
correct
direction
of
movement.
When
the control
wheel
is
moved
to
the
left,
the
left aileron
must
move
up
and the
right
aileron
must
move
down.
When
the
control wheel is
moved
to
the
right,
the
right
aileron
must
move
up
and the
left
aileron
must
move
down.
E16
4-7
