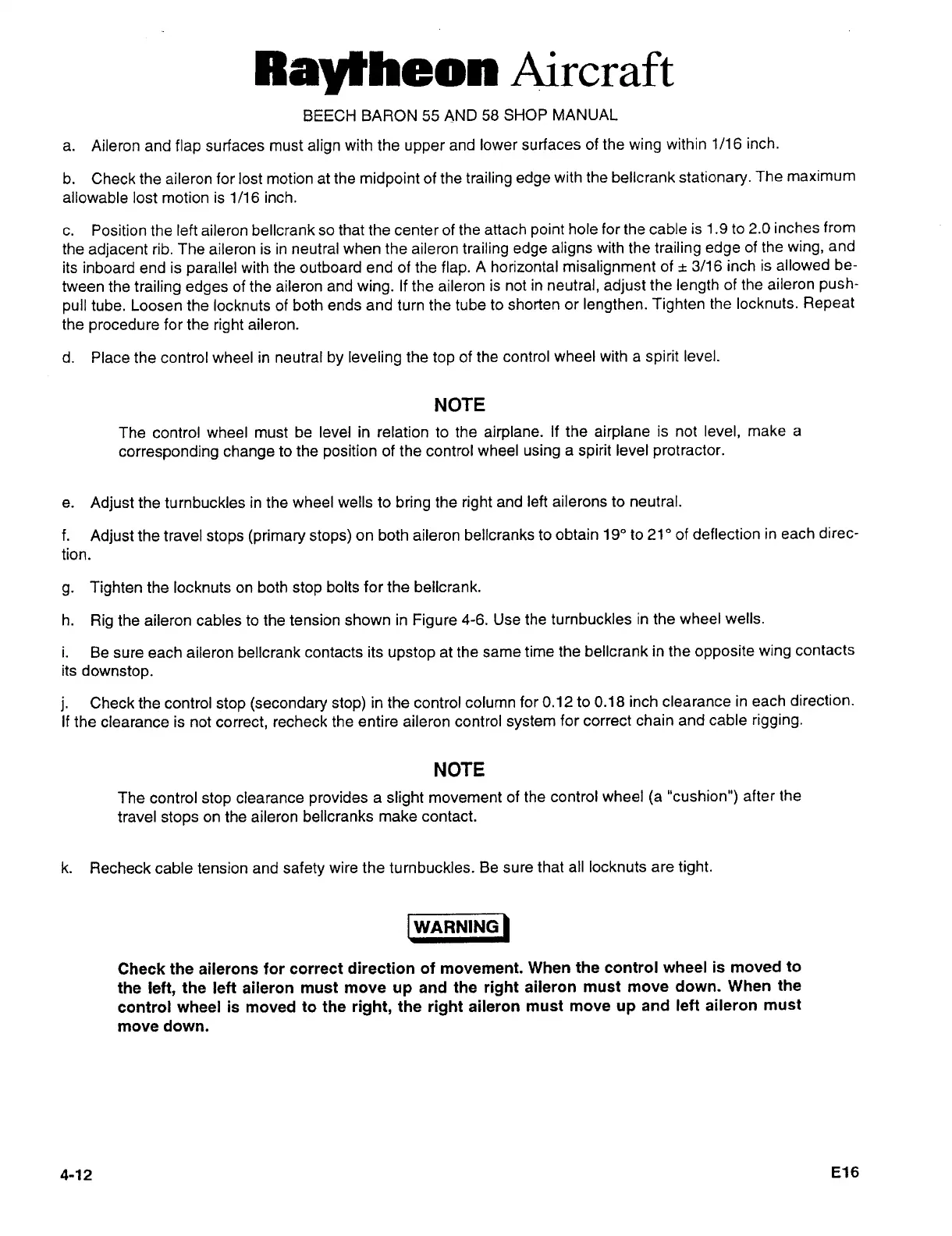

Ray)heon
Aircraft
BEECH
BARON
55
AND
58
SHOP
MANUAL
a.
Aileron
and
flap
surfaces
must
align
with
the
upper
and
lower
surfaces
of
the
wing
within
1/16
inch.
b.
Check
the
aileron
for
lost
motion
at
the
midpoint
of
the
trailing
edge
with
the
bellcrank
stationary.
The
maximum
allowable
lost
motion
is
1/16
inch.
c.
Position
the
left
aileron
bellcrank
so
that
the
center
of
the
attach
point
hole
for
the
cable
is
1.9
to
2.0
inches
from
the
adjacent
rib.
The
aileron
is
in
neutral
when
the
aileron
trailing
edge
aligns
with
the
trailing
edge
of
the
wing,
and
its
inboard
end
is
parallel
with
the
outboard
end
of
the
flap.
A
horizontal
misalignment
of
3/16
inch
is
allowed
be-
tween
the
trailing
edges
of
the
aileron
and
wing.
If
the
aileron
is
not
in
neutral,
adjust
the
length
ofthe
aileron
push-
pull
tube.
Loosen
the
locknuts
of
both
ends
and
turn
the
tube
to
shorten
or
lengthen.
Tighten
the
locknuts.
Repeat
the
procedure
for
the
right
aileron.
d.
Place
the
control
wheel
in
neutral
by
leveling
the
top
of
the
control
wheel
with
a
spirit
level.
NOTE
The
control
wheel
must
be
level
in
relation
to
the
airplane.
If
the
airplane
is
not
level,
make
a
corresponding
change
to
the
position
of
the
control
wheel
using
a
spirit
level
protractor.
e.
Adjust
the
turnbuckles
in
the
wheel
wells
to
bring
the
right
and
left
ailerons
to
neutral.
f.
Adjust
the
travel
stops
(primary
stops)
on
both
aileron
bellcranks
to
obtain
19"
to
21"
of
deflection
in
each
direc-
tion.
g.
Tighten
the
locknuts
on
both
stop
bolts
for
the
bellcrank.
h.
Rig
the
aiieron
cables
to
the
tension
shown
in
Figure
4-6.
Use
the
turnbuckles
in
the
wheel
wells.
i.
Be
sure
each
aileron
bellcrank
contacts
its
upstep
at
the
same
time
the
bellcrank
in
the
opposite
wing
contacts
its
downstop.
j.
Check
the
control
stop
(secondary
stop)
in
the
control
column
for
0.12
to
0.18
inch
clearance
in
each
direction.
If
the
clearance
is
not
correct,
recheck
the
entire
aileron
control
system
for
correct
chain
and
cable
rigging.
NOTE
The
control
stop
clearance
provides
a
slight
movement
of
the
control
wheel
(a
"cushion")
after
the
travel
stops
on
the
aileron
bellcranks
make
contact.
k.
Recheck
cable
tension
and
safety
wire
the
turnbuckles.
Be
sure
that
all
locknuts
are
tight.
I
WI~RNINO
I
WARNING
Check
the
ailerons
for
correct
direction
of
movement.
When
the
control
wheel
is
moved
to
the
left,
the
left
aileron
must
move
up
and
the
right
aileron
must
move
down.
When
the
control
wheel
is
moved
to
the
right,
the
right
aileron
must
move
up
and
left
aileron
must
move
down.
4-12
E16
