BEECH BARON
55
AND
58
SHOP
MANUAL
~9W‘""/\\
e
CHECK
NUT
2
BUSHING
8
3 NUT ASSEMBLY
4
HOUSING
5
ACTUATOR SCREW
6
COLLAR
7
i~
7
RETAINER RING
O
ci
8
CAP
DETAIL
A
C

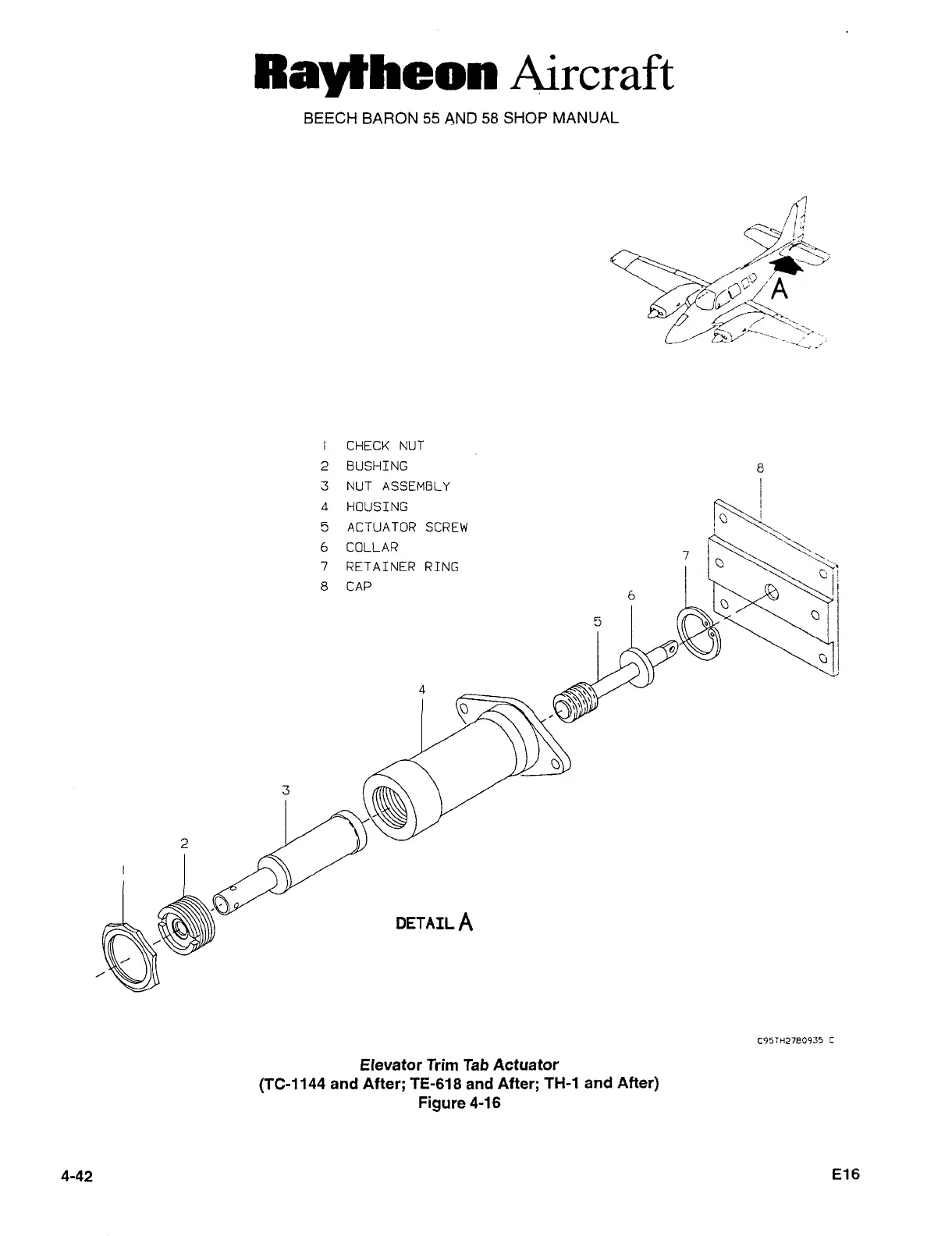

Elevator
Trim
Tab Actuator
(TC-1144
and
After;
TE-618 and
After;
TH-I
and
After)
Figure
4-16
4-42
