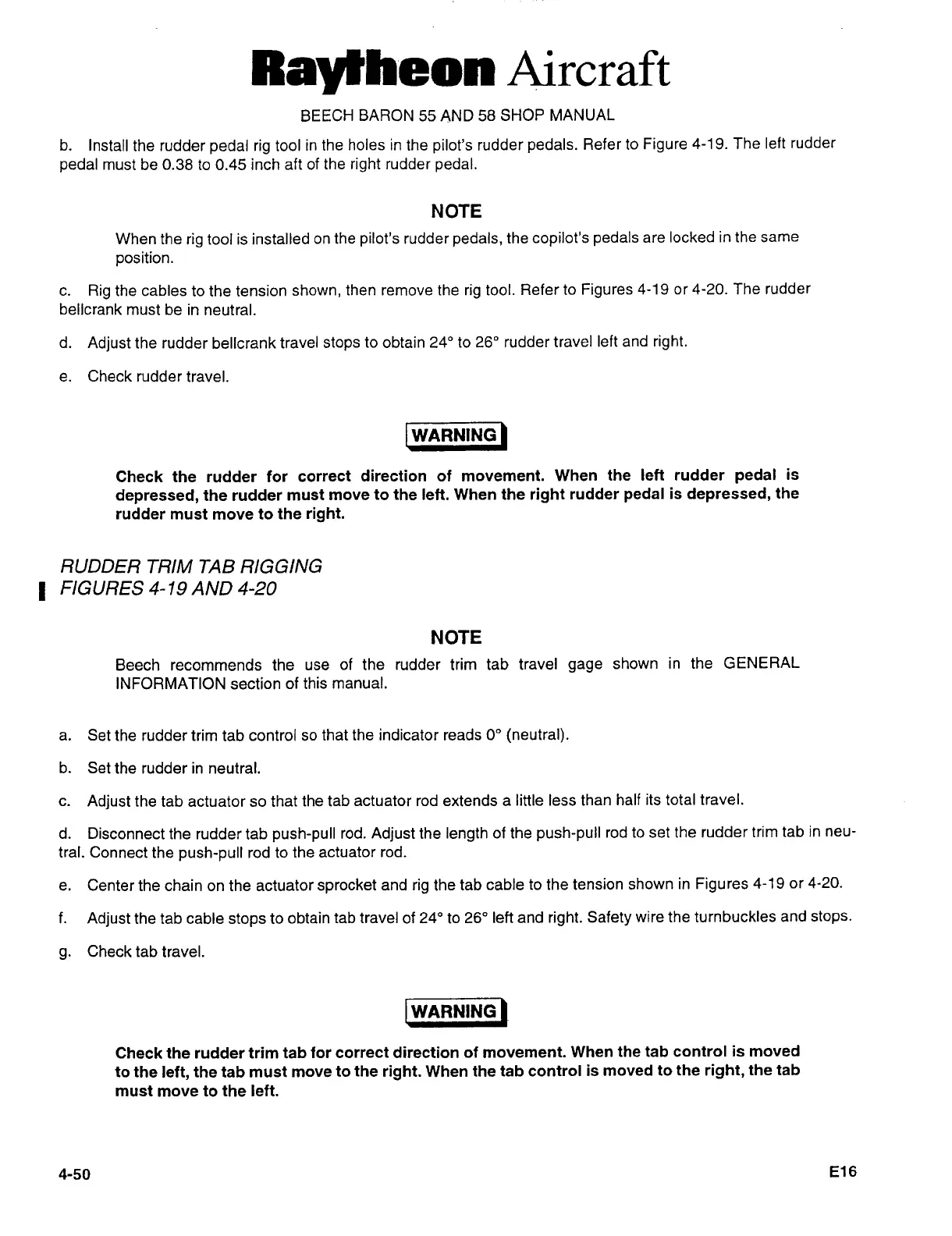

SHOP MANUAL
b.
Install
the rudder
pedal
rig
tool
in
the
holes
in
the
pilot’s
rudder
pedals.
Refer
to
Figure
4-19.
The
left
rudder
pedal
must
be
0.38
to
0.45
inch
aft
of
the
right
rudder
pedal.
NOTE
When
the
rig
tool
is
installed
on
the
pilot’s
rudder
pedals,
the
copilot’s
pedals
are
locked
in the
same
position.
c.
Rig
the
cables
to
the
tension
shown,
then
remove
the
rig
tool.
Refer
to
Figures
4-19
or
4-20.
The
rudder
bellcrank
must
be in
neutral.
d.
Adjust
the rudder bellcrank
travel
stops
to
obtain
24"
to
26"
rudder
travel
left
and
right.
e.
Check
ruddertravel.
IW~RNINO)
WARNING
Check the
rudder
for
correct
direction
of
movement.
When
the
left
rudder
pedal
is
depressed,
the rudder
must
move
to
the left. When
the
right
rudder
pedal
is
depressed,
the
rudder
must
move
to
the
right.
RUDDER
TRIM
TAB
RIGGING
I
FIGURES
4-19 AND
4-20
NOTE
Seech
recommends
the
use
of
the rudder
trim tab
travel
gage
shown
in the
GENERAL
INFORMATION section
of
this
manual.
a.
Set
the rudder
trim tab
control
so
that the
indicator reads
O"
(neutral).
b.
Setthe rudderin neutral.
c.
Adjust
the tab
actuator
so
that
the
tab
actuator
rod
extends
a
little
less
than
half
its
total
travel.
d.
Disconnect
the
rudder tab
push-pull
rod.
Adjust
the
length
of the
push-pull
rod
to set
the
rudder
trim
tab
in
neu-
tral.
Connect the
push-pull
rod
to
the
actuator
rod.
e.
Center the chain
on
the
actuator
sprocket
and
rig
the
tab cable
to
the
tension
shown
in
Figures
4-19
or
4-20.
f.
Adjust
the tab
cable
stops
to
obtain tab travel of
24"
to
26"
left
and
right.
Safety
wire the turnbuckles
and
stops.
g.
Checktab
travel.
IWARNINO
I
WARNING
Check
the
rudder
trim
tab
for
correct
direction
of
movement.
When
the
tab
control
is
moved
to
the
left,
the
tab
must
move
to
the
right.
When
the
tab control
is
moved
to
the
right,
thetab
must
move
to
the
left.
