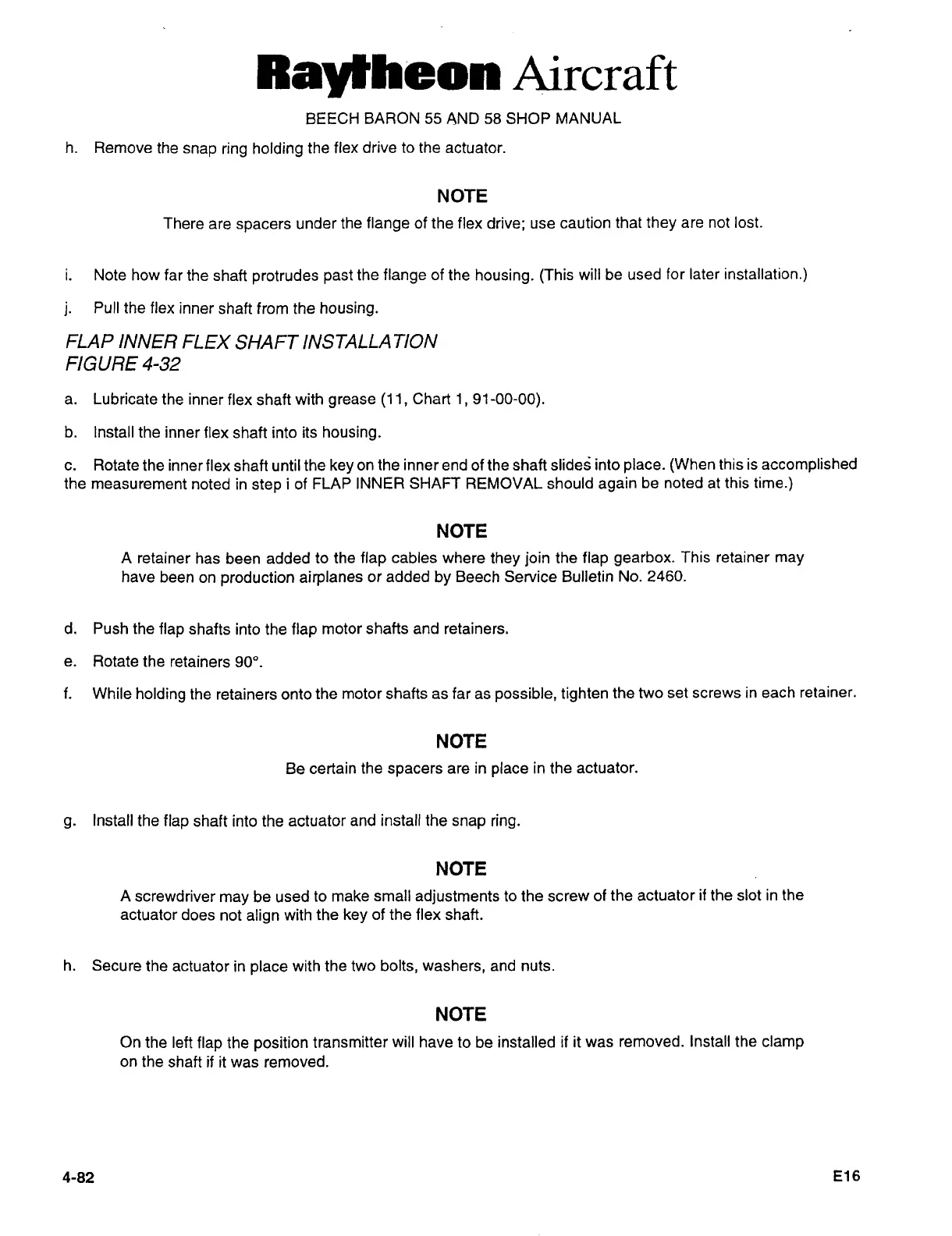

Raytheon Beech Baron E55 - Page 290

Raytheon
Aircraft
BEECH
BARON
55
AND
58
SHOP
MANUAL
h.
Remove
the
snap
ring holding
the
flex
drive
to
the
actuator.
NOTE
There
are
spacers
under
the
flange
of
the
flex
drive;
use
caution
that
they
are
not
lost.
i.
Note
how
far
the
shaft
protrudes
past
the
flange
of
the
housing.
(This
will
be
used
for
later
installation.)
j.
Pull
the
flex
inner
shaft from
the
housing.
FLAP INNER
FLEX
SHAFT
INSTALLA
TION
FIGURE
4-32
a.
Lubricate
the inner
flex shaft
with
grease
(11,
Chart
1,
91-00-00).
b.
Install
the
inner flex
shaft
into its
housing.
c.
Rotate
the inner
flex shaft
until
the
key
on
the inner
end
of the
shaft
slide~
into
place.
(When
this is
accomplished
the
measurement
noted
in
step
i
of
FLAP
INNER SHAFT
REMOVAL
should
again
be noted
at
this
time.)
NOTE
A
retainer
has
been
added
to
the
flap
cables
where
they
join
the
flap
gearbox.
This retainer
may
have
been
on
production
airplanes
or
added
by
Beech Service
Bulletin
No.
2460.
d. Push
the
flap
shafts into
the
flap
motor
shafts
and
retainers.
e.
Rotatethe
retainers
90".
f.
While
holding
the
retainers
onto
the
motor
shafts
as
far
as
possible, tighten
the
two
set
screws
in
each
retainer.
NOTE
Be
certain
the
spacers
are
in
place
in the
actuator.
g.
Install
the
flap
shaft into the
actuator
and install
the
snap
ring.
NOTE
A
screwdriver
may
be
used
to
make small
adjustments
to
the
screw
of
the
actuator
if
the slot
in the
actuator
does
not
align
with
the
key
of
the
flex
shaft.
h.
Secure
the
actuator
in
place
with the
two
bolts,
washers,
and
nuts.
NOTE
On
the
left
flap
the
position
transmitter
will have
to
be installed
if
it
was
removed.
Install
the
clamp
on
the
shaft
if
it
was
removed.
4-82
E16
