Raytheon Beech Baron E55 - Page 293

Raytheon
Aircraft
BEECH
BARON
55
AND
58
SHOP
MANUAL
I.
FLEXIBLE SHAFT
SNAP
RING
3.
SPACERS
4.
BEARINGS
5.
ACTUATOR
SCREW
6. PISTON
7.
HOUSING
PIVOT
BOLT
HOLES
8.
HOUSING
9.
HOUSING
BARREL
INSIDE
DIMENSION
10.
PISTON
PLUG
HOLE
(CONNECIS
FLAP
TO
ACTUATOR:
II.
PISTON PLUG
12.
O-RING
13.
HOUSING
END
HOLE
14.
PIN
4
15.
PISTON
SHAFT
16. PISTON
COLLAR
17.
SEAL
17
16
13
15
i\l
14
i
13
C94E127B2829

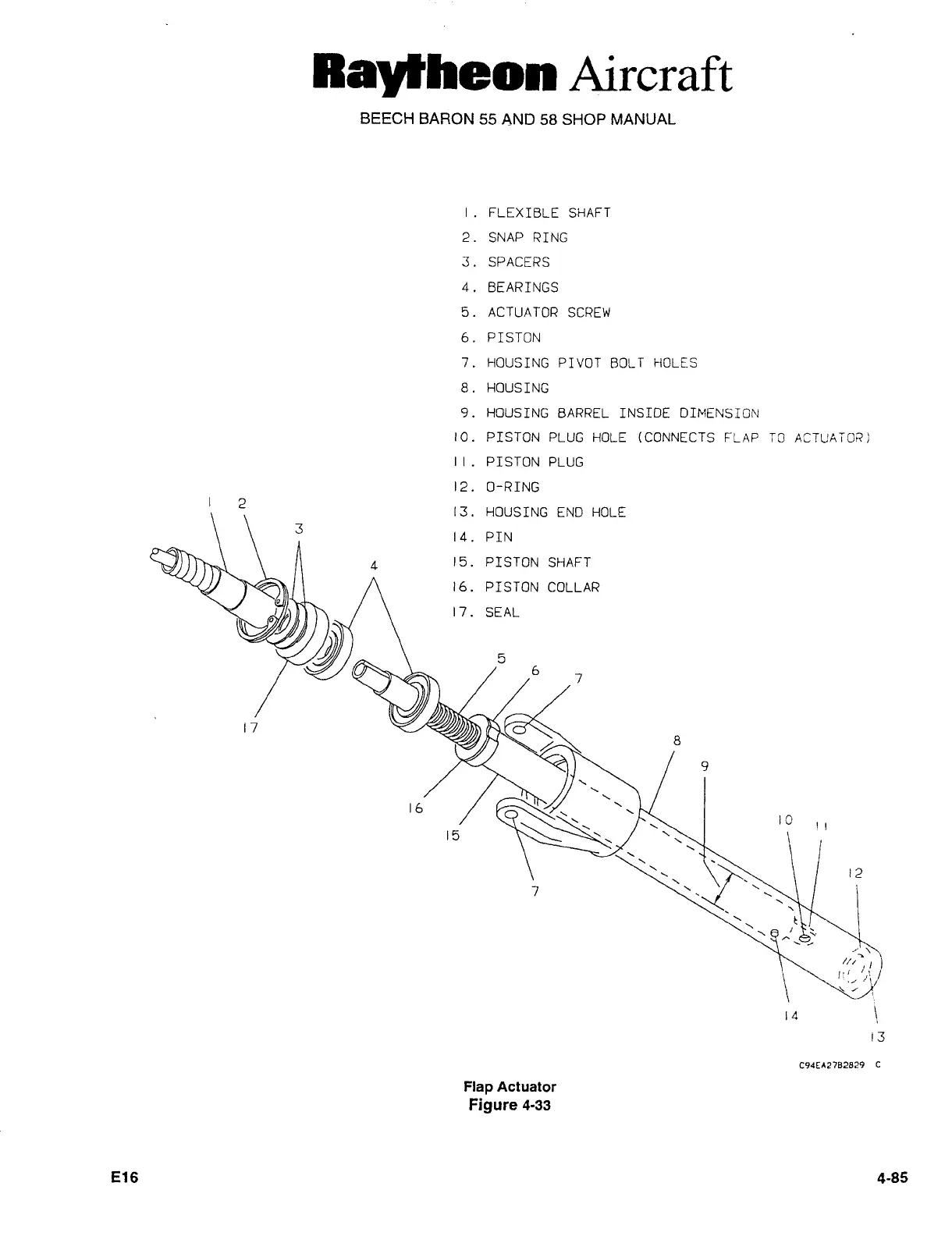

Flap
Actuator
Figure
4-33
E16
4-85
