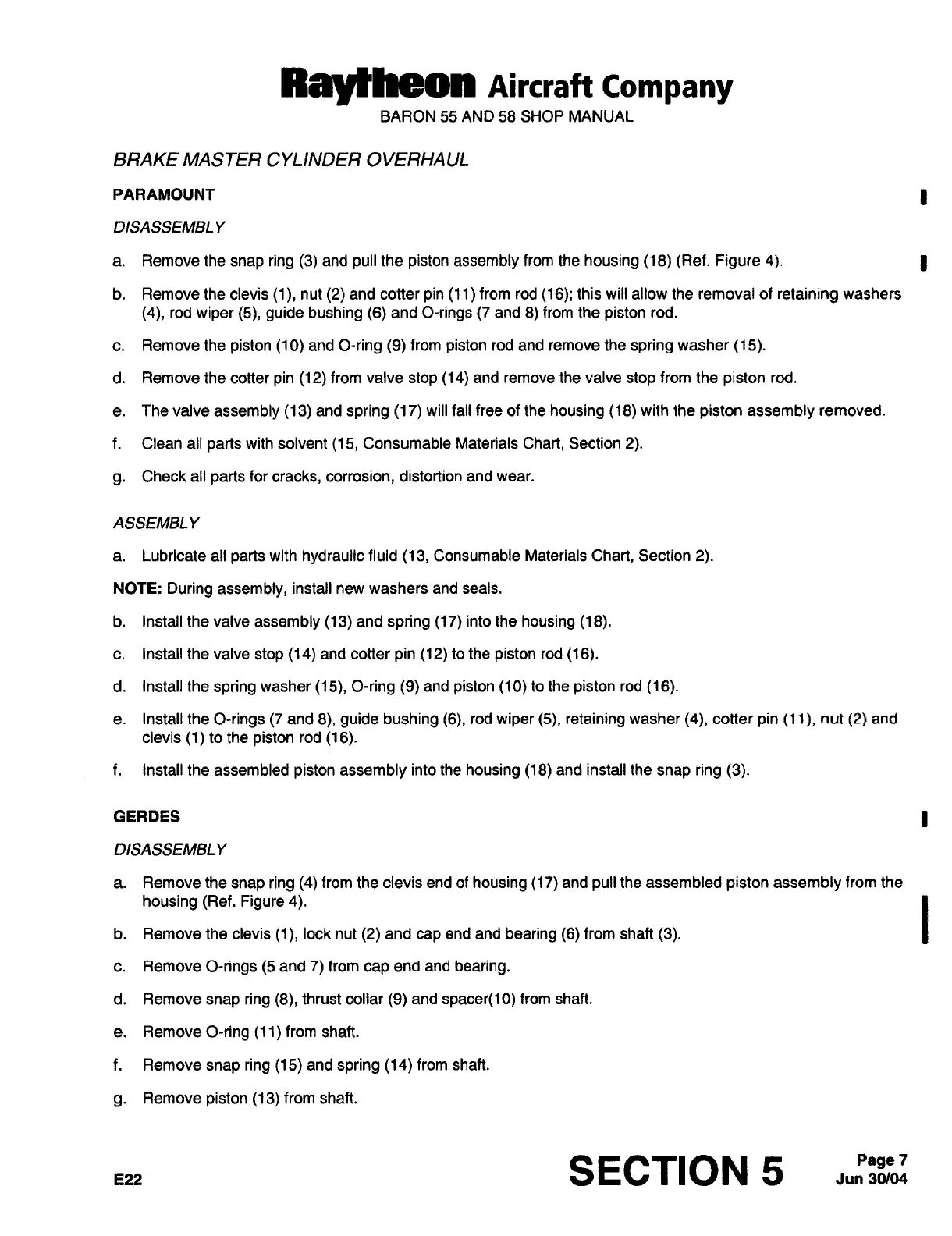

Ral~heon
AiKraft
company
BARON
55
AND
58
SHOP
MANUAL
BRAKE
MASTER
CYLINDER
OVERHAUL
PARAMOUNT
DISASSEMBLY
a.
Remove
the
snap
ring
(3)
and
pull
the
piston
assembly
from
the
housing
(18)
(Ref.
Figure
4).
b.
Remove
the
clevis
(1),
nut
(2)
and
cotter
pin
(Il)from
rod
(16);
this
will
allow
the
removal
of
retaining
washers
(4),
rod
wiper
(5),
guide
bushing
(6)
and
O-rings
(7
and
8)
from
the
piston
rod.
c.
Remove
the
piston
(10)
and
O-ring
(9)
from
piston
rod
and
remove
the
spring
washer
(15).
d.
Remove
the
cotter
pin
(12)
from
valve
stop
(14)
and
remove
the
valve
stop
from
the
piston
rod.
e.
The
valve
assembly
(13)
and
spring
(17)
will
fall
free
of
the
housing
(18)
with
the
piston
assembly
removed.
f.
Clean
all
parts
with
solvent
(15,
Consumable
Materials
Chart,
Section
2).
g.
Check
all
parts
for
cracks,
corrosion,
distortion
and
wear.
ASSEMBLY
a.
Lubricate
all
parts
with
hydraulic
fluid
(13,
Consumable
Materials
Chart,
Section
2).
NOTE:
During
assembly,
install
new
washers
and
seals.
b.
Install
the
valve
assembly
(13)
and
spring
(17)
into
the
housing
(18).
c.
Install
the
valve
stop
(14)
and
cotter
pin
(12)
to
the
piston
rod
(16).
d.
Install
the
spring
washer
(15),
O-ring
(9)
and
piston
(10)
to
the
piston
rod
(16).
e.
Install
the
O-rings
(7
and
8),
guide
bushing
(6),
rod
wiper
(5),
retaining
washer
(4),
cotter
pin
(11),
nut
(2)
and
clevis
(I)to
the
piston
rod
(16).
f.
Install
the
assembled
piston
assembly
into
the
housing
(18)
and
install
the
snap
ring
(3).
GERDES
DISASSEMBLY
a.
Remove
the
snap
ring
(4)
from
the
clevis
end
of
housing
(17)
and
pull
the
assembled
piston
assembly
from
the
housing
(Ref.
Figure
4).
I
b.
Remove
the
clevis
(1),
lock
nut
(2)
and
cap
endand
bearing
(6)
from
shaft
(3).
c.
Remove
O-rings
(5
and
7)
from
cap
end
and
bearing.
d.
Remove
snap
ring
(8),
thrust
collar
(9)
and
spacer(l0)
from
shaft.
e.
RemoveO-ring
(Il)from
shaft.
f.
Remove
snap
ring
(15)
and
spring
(14)
from
shaft.
g.
Remove
piston
(13)
from
shaft.
E22
SECTION
5
Jun
3~104Page
7
