Rayfheon
Aircraft
Company
BARON
55
AND 58
SHOP
MANUAL

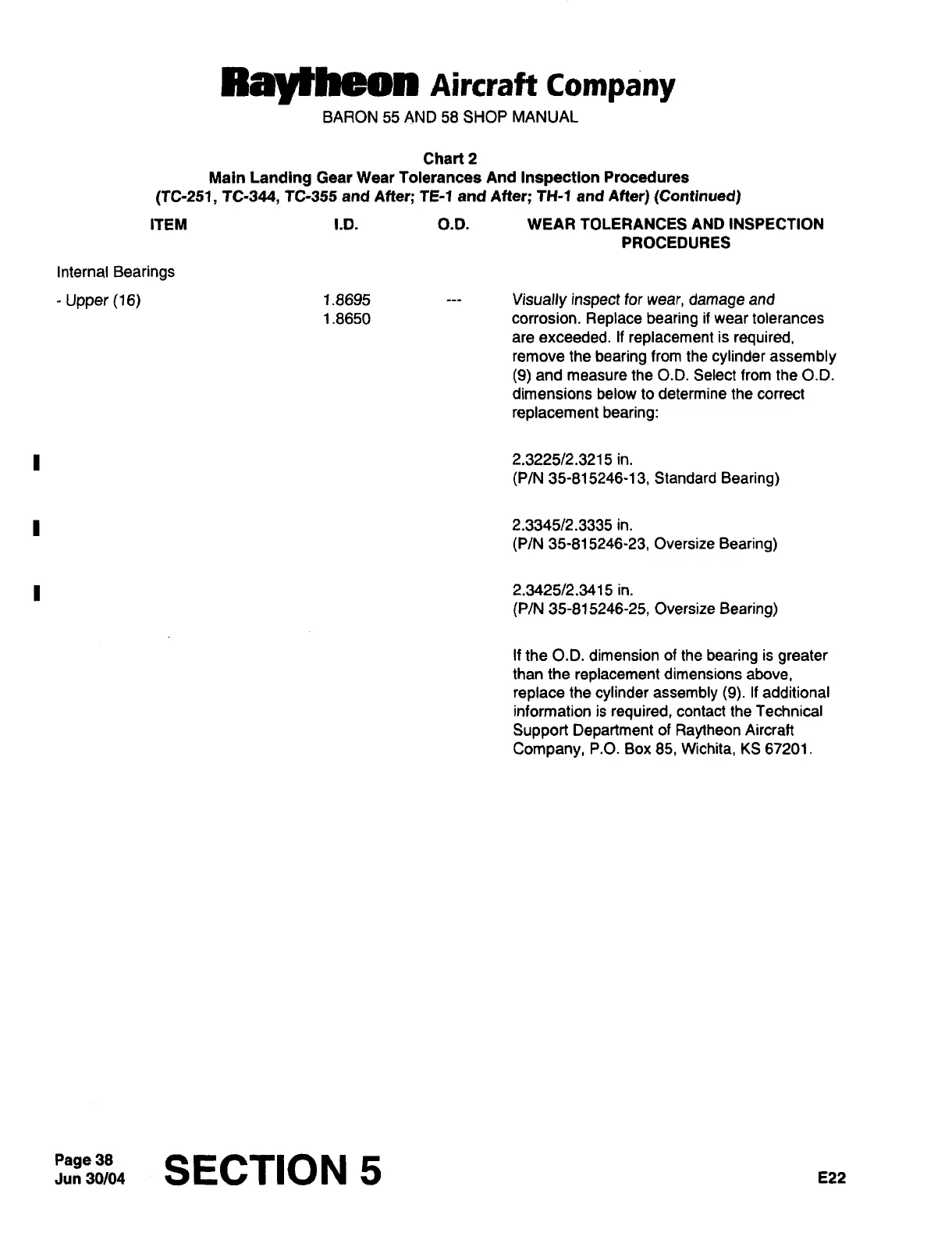

Chart
2
Main
Landing
Gear Wear Tolerances
And
Inspection
Procedures
(TC-251,
TC-344,
TC-355
and
After;
TE-1 and
After;
TH-1
and
After) (Continued)
ITEM
I.D.
O,D, WEAR
TOLERANCES
AND INSPECTION
PROCEDURES
Internal
Bearings
Upper
(16)
1.8695
Visually inspect
for
wear,
damage
and
1.8650
corrosion.
Replace bearing
if
wear
tolerances
are
exceeded.
If
replacement
is
required,
remove
the
bearing
from the
cylinder assembly
(9)
and
measure
the
O.D.
Select
from the
O.D.
dimensions
below
to
determine
the
correct
replacement bearing:
1
2.3225/2.3215
in.
(P/N
35-815246-13,
Standard
Bearing)
1
2.3345/2.3335
in.
(P/N
35-815246-23,
Oversize
Bearing)
1
2.3425/2.3415
in.
(P/N
35-815246-25,
Oversize
Bearing)
If
the
O.D.
dimension
of
the
bearing
is
greater
than
the
replacement
dimensions
above,
replace
the
cylinder
assembly
(9).
If
additional
information
is
required,
contact
the
Technical
Support
Department
of
Raytheon
Aircraft
Company,
P.O.
Box
85,
Wichita,
KS
67201.
Jun
30/04Page
38
SECTION
5
E22
