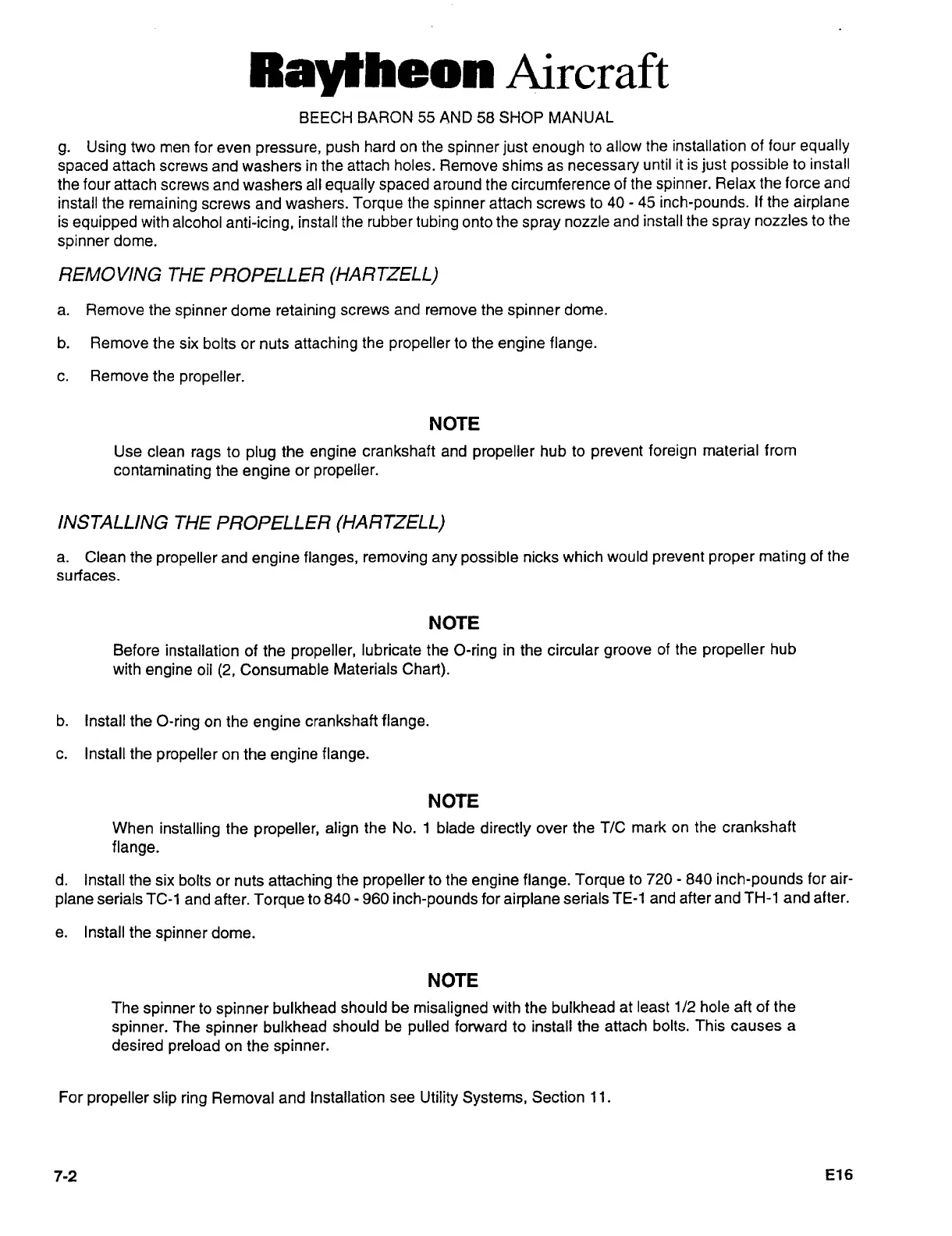

Rayl´•hean
Aircraft
BEECH
BARON
55
AND
58
SHOP
MANUAL
g.
Using
two
men
for
even
pressure,
push
hard
on
the
spinner
just
enough
to
allow
the
installation
of
four
equally
spaced
attach
screws
and
washers
in
the
attach
holes.
Remove
shims
as
necessary
until
it
is
just
possible
to
install
the
four
attach
screws
and
washers
all
equally
spaced
around
the
circumference
of
the
spinner.
Relax
the
force
and
install
the
remaining
screws
and
washers.
Torque
the
spinner
attach
screws
to
40
45
inch-pounds.
If
the
airplane
is
equipped
with
alcohol
anti-icing,
install
the
rubber
tubing
onto
the
spray
nozzle
and
install
the
spray
nozzles
to
the
spinner
dome.
REMOVING
THE
PROPELLER
(HARTZELL)
a.
Remove
the
spinner
dome
retaining
screws
and
remove
the
spinner
dome.
b.
Remove
the
six
bolts
or
nuts
attaching
the
propeller
to
the
engineflange.
c.
Remove
the
propeller.
NOTE
Use
clean
rags
to
plug
the
engine
crankshaft
and
propeller
hub
to
prevent
foreign
material
from
contaminating
the
engine
or
propeller.
INSTALLING
THE
PROPELLER
(HARTZELL)
a.
Clean
the
propeller
and
engine
flanges,
removing
any
possible
nicks
which
would
prevent
proper
mating
of
the
surfaces.
NOTE
Before
installation
of
the
propeller,
lubricate
the
O-ring
in
the
circular
groove
of
the
propeller
hub
with
engine
oil
(2,
Consumable
Materials
Chart).
b.
install
the
O-ring
on
the
engine
crankshaft
flange.
c.
Install
the
propeller
on
the
engine
flange.
NOTE
When
installing
the
propeller,
align
the
No.
1
blade
directly
over
the
nC
mark
on
the
crankshaft
flange.
d.
Install
the
six
bolts
or
nuts
attaching
the
propeller
to
the
engine
flange.
Torque
to
720
840
inch-pounds
for
air-
plane
serials
TC-1
and
after.
Torque
to
840
960
inch-pounds
for
airplane
serials
TE-1
and
after
and
TH-1
and
after.
e.
Install
the
spinner
dome.
NOTE
The
spinner
to
spinner
bulkhead
should
be
misaligned
with
the
bulkhead
at
least
1/2
hole
aft
of
the
spinner.
The
spinner
bulkhead
should
be
pulled
forward
to
install
the
attach
bolts.
This
causes
a
desired
preload
on
the
spinner.
For
propeller
slip
ring
Removal
and
Installation
see
Utility
Systems,
Section
11.
7-2
E16
