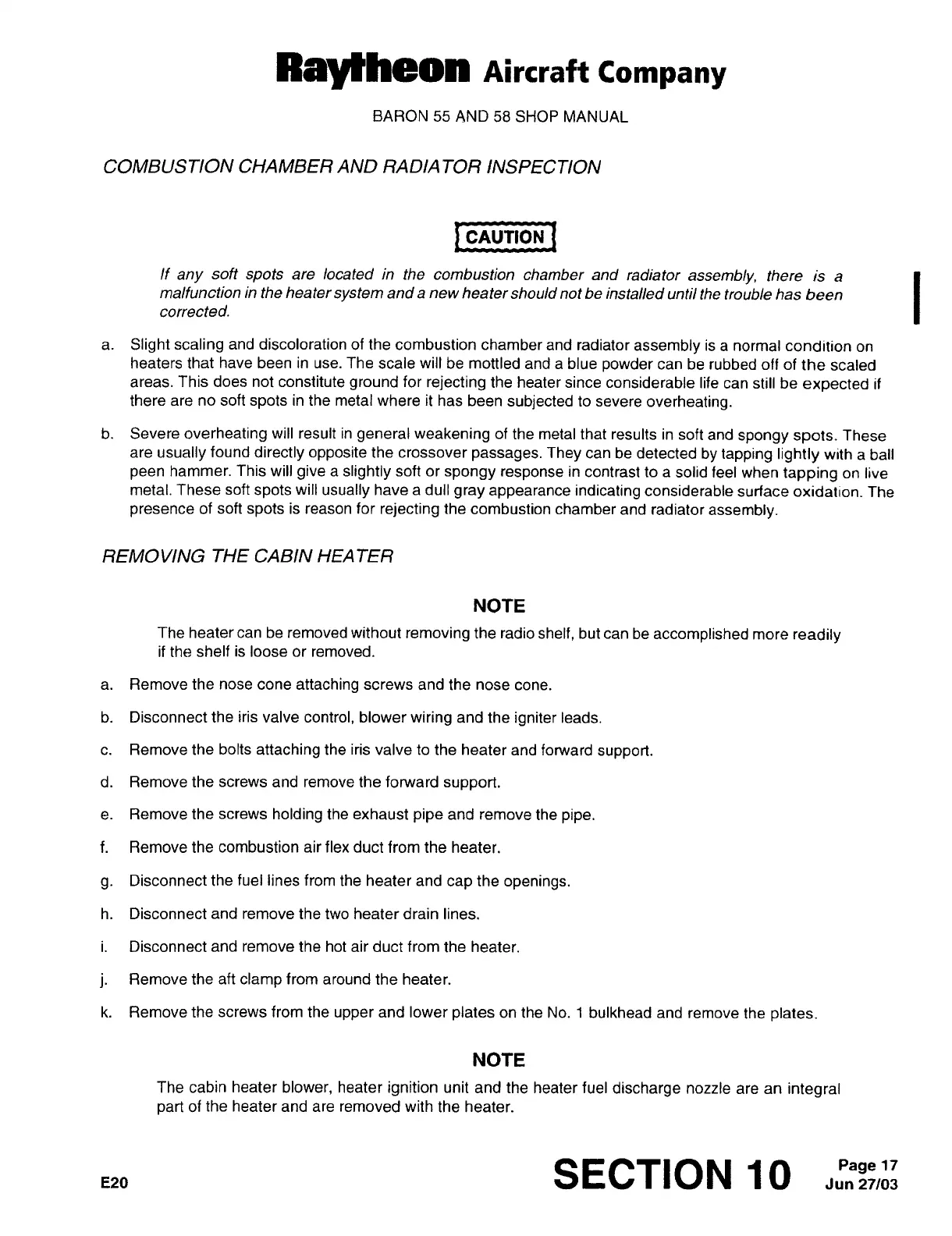

Ray~hean
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
COMBUSTION
CHAMBER
AND
RADIA
TOR
INSPECTION
I
cnuTlow
I
CAUTION
If
any
soft
spots
are
located
in
the
combustion
chamber
and
radiator
assembly,
there
is
a
malfunction
in
the
heater
system
and
a
new
heater
should
not
be
installed
until
the
trouble
has
been
corrected.
a.
Slight
scaling
and
discoloration
of
the
combustion
chamber
and
radiator
assembly
is
a
normal
condition
on
heaters
that
have
been
in
use.
The
scale
will
be
mottled
and
a
blue
powder
can
be
rubbed
off
of
the
scaled
areas.
This
does
not
constitute
ground
for
rejecting
the
heater
since
considerable
life
can
still
be
expected
if
there
are
no
soft
spots
in
the
metal
where
it
has
been
subjected
to
severe
overheating.
b.
Severe
overheating
will
result
in
general
weakening
of
the
metal
that
results
in
soft
and
spongy
spots.
These
are
usually
found
directly
opposite
the
crossover
passages.
They
can
be
detected
by
tapping
lightly
with
a
ball
peen
hammer.
This
will
give
a
slightly
soft
or
spongy
response
in
contrast
to
a
solid
feel
when
tapping
on
live
metal.
These
soft
spots
will
usually
have
a
dull
gray
appearance
indicating
considerable
surface
oxidation.
The
presence
of
soft
spots
is
reason
for
rejecting
the
combustion
chamber
and
radiator
assembly.
REMOVING
THE
CABIN
HEATER
NOTE
The
heater
can
be
removed
without
removing
the
radio
shelf,
but
can
be
accomplished
more
readily
if
the
shelf
is
loose
or
removed.
a.
Remove
the
nose
cone
attaching
screws
and
the
nose
cone.
b.
Disconnect
the
iris
valve
control,
blower
wiring
and
the
igniter
leads.
c.
Remove
the
bolts
attaching
the
iris
valve
to
the
heater
and
forward
support.
d.
Remove
the
screws
and
remove
the
forward
support.
e.
Remove
the
screws
holding
the
exhaust
pipe
and
remove
the
pipe.
f.
Remove
the
combustion
air
flex
duct
from
the
heater.
g.
Disconnect
the
fuel
lines
from
the
heater
and
cap
the
openings.
h.
Disconnect
and
remove
the
two
heater
drain
lines.
i.
Disconnect
and
remove
the
hot
air
duct
from
the
heater.
j.
Remove
the
aft
clamp
from
around
the
heater.
k.
Remove
the
screws
from
the
upper
and
lower
plates
on
the
No.
1
bulkhead
and
remove
the
plates.
NOTE
The
cabin
heater
blower,
heater
ignition
unit
and
the
heater
fuel
discharge
nozzle
are
an
integral
part
of
the
heater
and
are
removed
with
the
heater.
