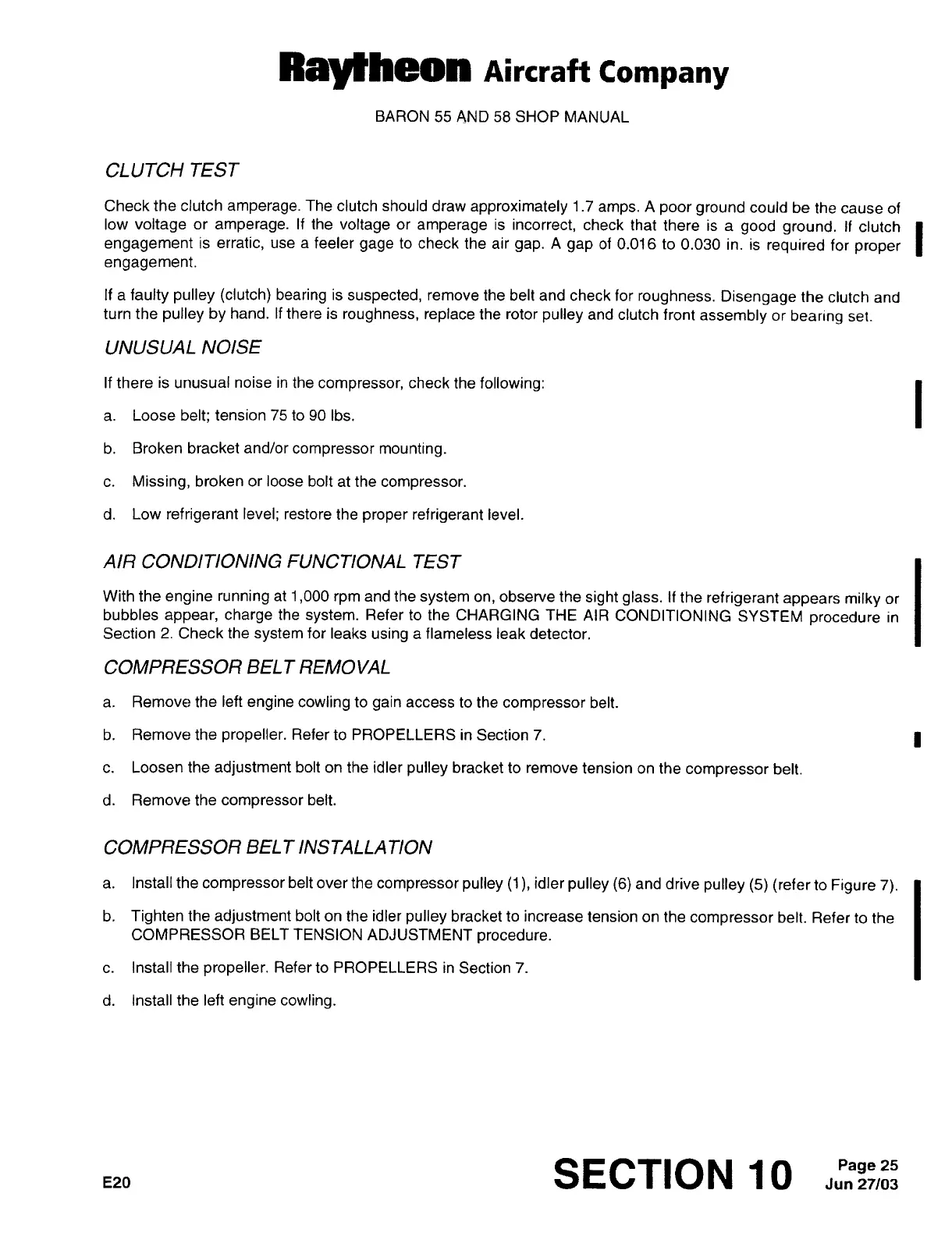

Raytheon
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
CLUTCH
TEST
Check
the
clutch
amperage.
The
clutch
should
draw
approximately
1.7
amps.
A
poor
ground
could
be
the
cause
of
low
voltage
or
amperage.
If
the
voltage
or
amperage
is
incorrect,
check
that
there
is
a
good
ground.
If
clutch
I
engagement
is
erratic,
use
a
feeler
gage
to
check
the
air
gap.
A
gap
of
0.016
to
0.030
in,
is
required
for
proper
engagement.
If
a
faulty
pulley
(clutch)
bearing
is
suspected,
remove
the
belt
and
check
for
roughness.
Disengage
the
clutch
and
turn
the
pulley
by
hand.
If
there
is
roughness,
replace
the
rotor
pulley
and
clutch
front
assembly
or
bearing
set.
UNUSUAL
NOISE
If
there
is
unusual
noise
in
the
compressor,
check
the
following:
I
a.
Loose
belt;
tension
75
to
90
Ibs.
b.
Broken
bracket
and/or
compressor
mounting.
c.
Missing,
broken
or
loose
bolt
at
the
compressor.
d.
Low
refrigerant
level;
restore
the
proper
refrigerant
level.
AIR
CONDITIONING
FUNCTIONAL
TEST
With
the
engine
running
at
1,000
rpm
and
the
system
on,
observe
the
sight
glass.
If
the
refrigerant
appears
milky
or
bubbles
appear,
charge
the
system.
Refer
to
the
CHARGING
THE
AIR
CONDITIONING
SYSTEM
procedure
in
Section
2.
Check
the
system
for
leaks
using
a
flameless
leak
detector.
COMPRESSOR
EEL
T
REMO
VAL
a.
Remove
the
left
engine
cowling
to
gain
access
to
the
compressor
belt.
b.
Remove
the
propeller.
Refer
to
PROPELLERS
in
Section
7.
c.
Loosen
the
adjustment
bolt
on
the
idler
pulley
bracket
to
remove
tension
on
the
compressor
belt.
d.
Remove
the
compressor
belt.
COMPRESSOR
EEL
T
INS
TA
LLA
TION
a.
Install
the
compressor
belt
over
the
compressor
pulley
(1),
idler
pulley
(6)
and
drive
pulley
(5)
(refer
to
Figure
7).
b.
Tighten
the
adjustment
bolt
on
the
idler
pulley
bracket
to
increase
tension
on
the
compressor
belt.
Refer
to
the
COMPRESSOR
BELT
TENSION
ADJUSTMENT
procedure.
c.
Install
the
propeller.
Refer
to
PROPELLERS
in
Section
7.
d.
Install
the
left
engine
cowling.
E?a
