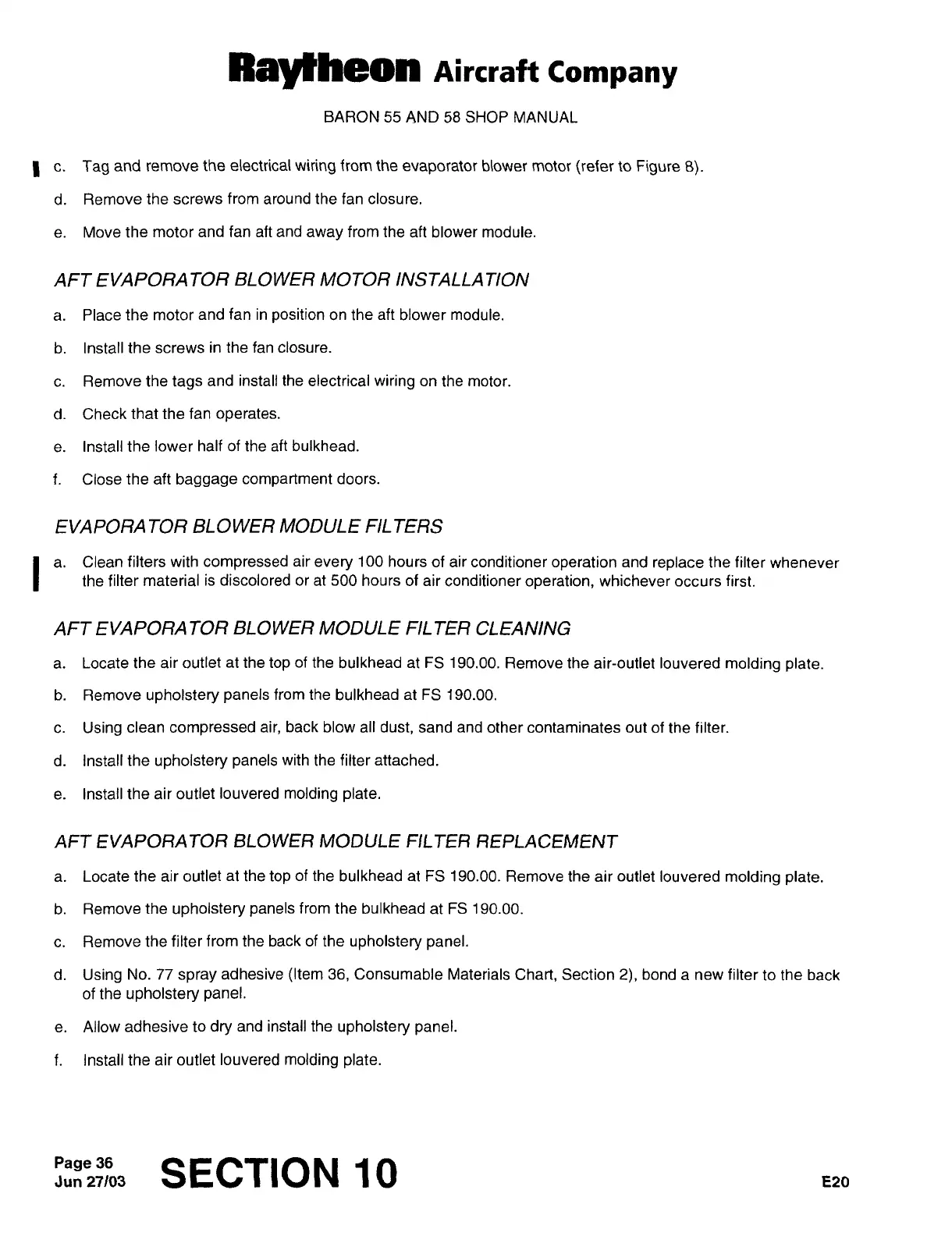

SHOP MANUAL
I
c.
Tag
and
remove
the electrical
wiring
from
the
evaporator
blower
motor
(refer
to
Figure
8).
d.
Remove
the
screws
from
around
the fan
closure.
e.
Move
the
motor
and fan aft
and
away
from
the
aft
blower module.
AFT
EVAPORA
TOR BLOWER MOTOR
INSTALLA TION
a.
Place
the
motor
and fan
in
position
on
the
aft
blower
module.
b.
Install
the
screws
in the
fan
closure.
c.
Remove
the
tags
and install
the
electrical
wiring
on
the
motor.
d.
Checkthatthefan
operates.
e.
Install
the lower
half of the
aft
bulkhead.
f.
Close
the
aft
baggage
compartment
doors.
EVAPORA
TOR
BLOWER MODULE
FIL
TERS
I"
Clean
filters with
compressed
air
every
100
hours
of air
conditioner
operation
and
replace
the
filter
whenever
the
filter
material
is
discolored
or
at
500
hours of
air
conditioner
operation,
whichever
occurs
first.
AFT
EVAPORA
TOR BLOWER
MODULE
FIL TER
CLEANING
a.
Locate
the air
outlet at
the
top
of
the
bulkhead
at
FS
190.00.
Remove
the
air-outlet
louvered
molding
plate.
b.
Remove
upholstery
panels
from
the
bulkhead
at
FS
-190.00.
c.
Using
clean
compressed
air,
back
blow
all
dust,
sand
and other
contaminates out
of
the filter.
d.
Install
the
upholstery
panels
with
the filter attached.
e.
Install
the
air outlet
louvered
molding plate.
AFT
EVAPORATOR
BLOWER
MODULE
FILTER
REPLACEMENT
a.
Locate
the air
outlet
at
the
top
of
the
bulkhead
at
FS 190.00. Remove the
air
outlet
louvered
molding
plate.
b. Remove
the
upholstery
panels
from
the bulkhead
at
FS
190.00.
c.
Remove
the
filter
from
the
back of
the
upholstery panel.
d.
Using
No.
77
spray
adhesive
(Item
36,
Consumable
Materials
Chart,
Section
2),
bond
a new
filter
to
the
back
of the
upholstery
panel.
e.
Allow
adhesive
to
dry
and
install
the
upholstery
panel.
f.
Install
the
air
outlet
louvered
molding
plate.
