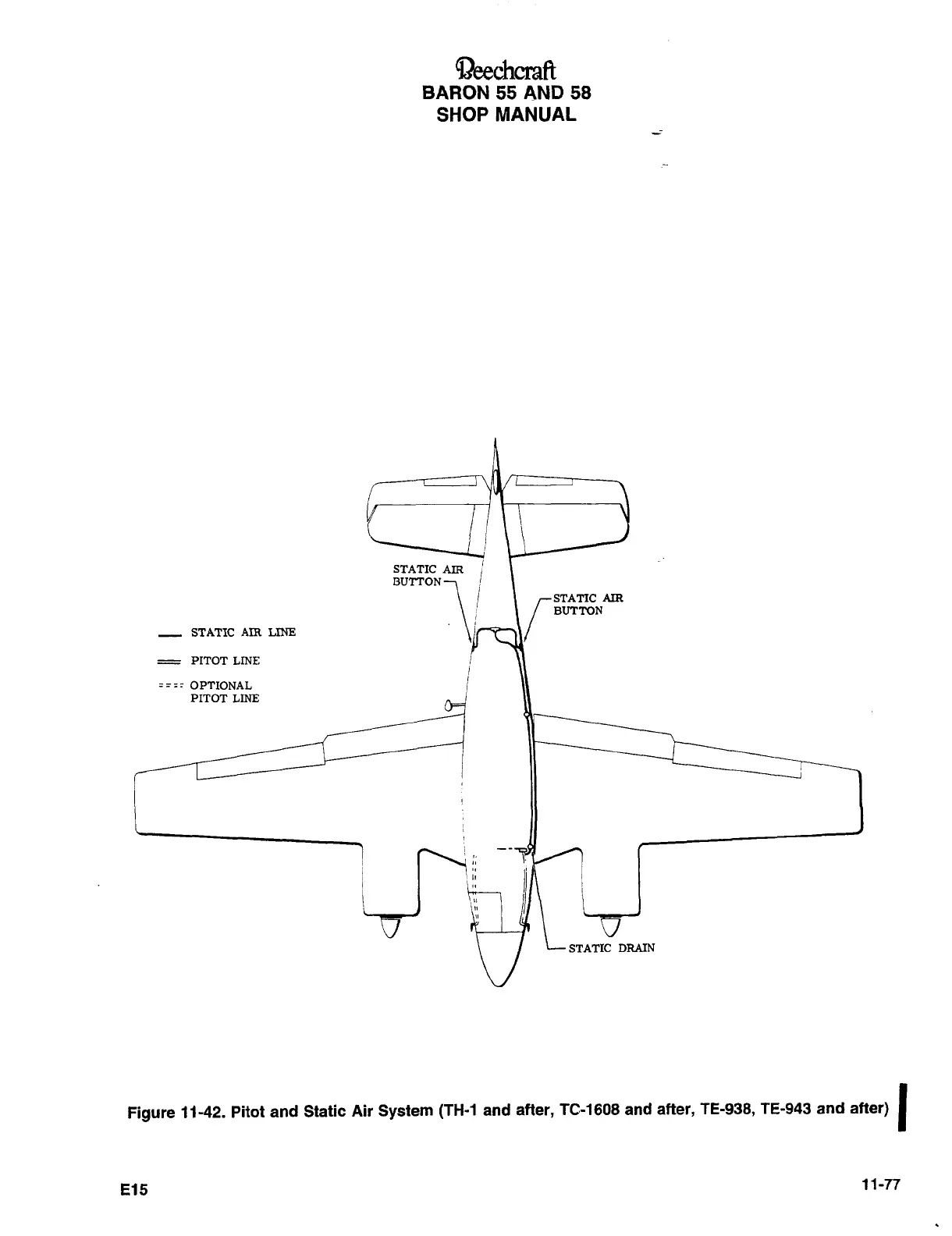

aeechc~ft

BARON

55

AND

58

SHOP

MANUAL

STATIC

AIR

BUTTON

STATIC

AIR

BUTTON

STATIC

AIR

LINE

PITOT

LINE

OPTIONAL

PITOT

LINE

STATIC

DRAIN

E15

11-77

Table of Contents

Title Page1
Record of Revisions3
Record of Temporary Revisions5
Letter of Transmital (Highlights of Changes)6
List of Effective Pages8
List of Chapters (Table of Contents)10
Alphabetical Index11
01 General Information54
- General Information55
- Powerplant62
- Service68
- Supplementary Publications79
02 Ground Handling and Servicing85
- Ground Handling86
- Servicing100
- Unscheduled Servicing142
03 Airframe148
- Airframe149
- Wing156
- Fuselage174
- Seats180
- Cabin Door187
- Utility Baggage Door (Optional)194
- Interior Door Handle197
- Cargo Door (TH-1 and After)200
- Windows201
- Fiberglass207
04 Flight Controls and Surfaces208
- Flight Controls209
- Aileron System219
- Elevator System230
- Electric Trim Tab System (Optional)254
- Rudder and Tab257
- Vertical Stabilizer267
- Horizontal Stabilizer269
- Balancing Control Surfaces269
- Flaps281
05 Landing Gear and Brake System294
- Brake System295
- Landing Gear System305
06 Power Plant373
- Power Plant374
07 Propeller400
- Propeller401
- Troubleshooting Propeller Synchronizer409
08 Fuel System410
- Fuel System411
09 Pressurization (Not Applicable to Beechcraft Barons)436
10 Heating and Cooling System438
- Heating and Ventilation (TC-1 thru TC-1657;439
  - TE-1 thru TE-967, Except TE-959; TH-1 thru TH-436)441
- Heating & Ventilation (TC-1658 & After, TE-959449
  - TE-968 and After; TH-437 and After)451
- Troubleshooting Heater System (TC-1658 & After;457
  - TE-959, TE-968 and After; TH-347 and After)458
- Air Conditioning System (TE-1119, TE-1125 and After;459
  - TH-873,TH-895 and After)475
- Troubleshooting Air Conditioning System476
  - (TE-1119, TE-1125 and After; TH-873, TH-895 & After)479
11 Utility System480
- Oxygen System481
- Vacuum System483
- Surface Deicer Systems484
- Stall Warning System Adjustment520
- Anti-Icing Systems521
- Electric Propeller Deicing528
- H-14 Autopilot System558
- Autopilot Troubleshooting Guide564
12 Aircraft Finishes569
- Airplane Finish Care570
13 Electrical System598
- Electrical System599
- Alternator System613
- Generator System624
- Starter627
- Electrical Utilization Load Chart (Std Equipment)629
- Light Bulb Replacement Guide670
- Electrical System673
- Troubleshooting Batteries674
- Grimes Strobe Light System689
- Emergency Location Transmitter692
14 Wiring Diagrams697
- Wiring Diagrams698
15 Overhaul and Replacement Schedule867
- Time Limits/Maintenance Practices868
- Overhaul and Replacement Schedule868
16 Periodic Inspections874
- Scheduled Maintenance Checks875
- 100-Hour Inspection877
- Electric Propeller Deicer System891
- Unscheduled Maintenance Checks893
End of TOC903
