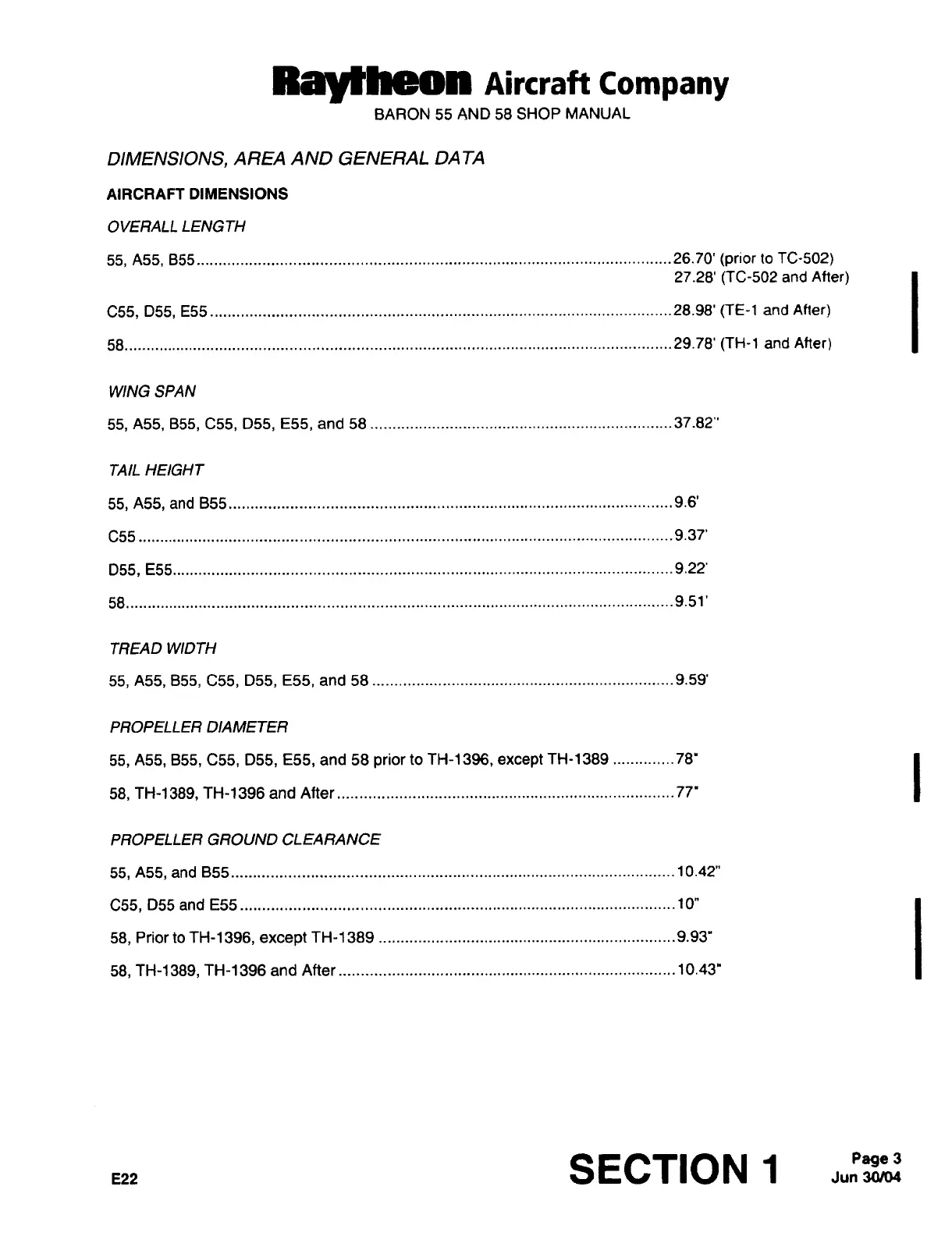

RaytheOl
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
DIMENSIONS,
AREA AND
GENERAL
DATA
AIRCRAFT
DIMENSIONS
OVERALL
LENGTH
55,
A55,
855......,
.´•......26.70’
(prior
to
TC-502)
27.28’
(TC-502
and
After)
C55,
D55,
E55.
28´•98’
rTE-l
and
After!
58...................................................................................................´•..´•´•´•´•´•´•.´•´•´•´•´•´•´•´•-´•´•´•´•´•´•´•29178’
(TH-1
and
After)
WING
SPAN
55,
A55,
855,
055,
D55,
E55,
and 58
.....................................................................37-82"
TAIL
HEIGHT
55,
A55,
and
855
9.6’
C55
..........................................................................................................................9´•37’
055,
E55..................................................................................................................9.22’
58..................................................................................................................´•´•´•´•´•´•..-´•´•9.51’
TREAD
WIDTH
55,
A55,
855,
055,
D55,
855,
and 58
9.59’
PROPELLER
DIAMETER
55,
A55, 855,
055,
D55, E55,
and
58
prior
to
TH-1396,
except
TH-1389
..............78’
I
58,
TH-1389,
TH-1396
and
After........
..............77’
PROPELLER GROUND
CLEARANCE
55,
A55,
and 855
10.42"
055,
D55
and E55
.10"
58,
Prior
to
TH-1396,
except
TH-1389
..............9.93’
58,
TH-1389,
TH-1396 and
After
10.43’
E22
SECTION
1
Jun
30/04Page
3
