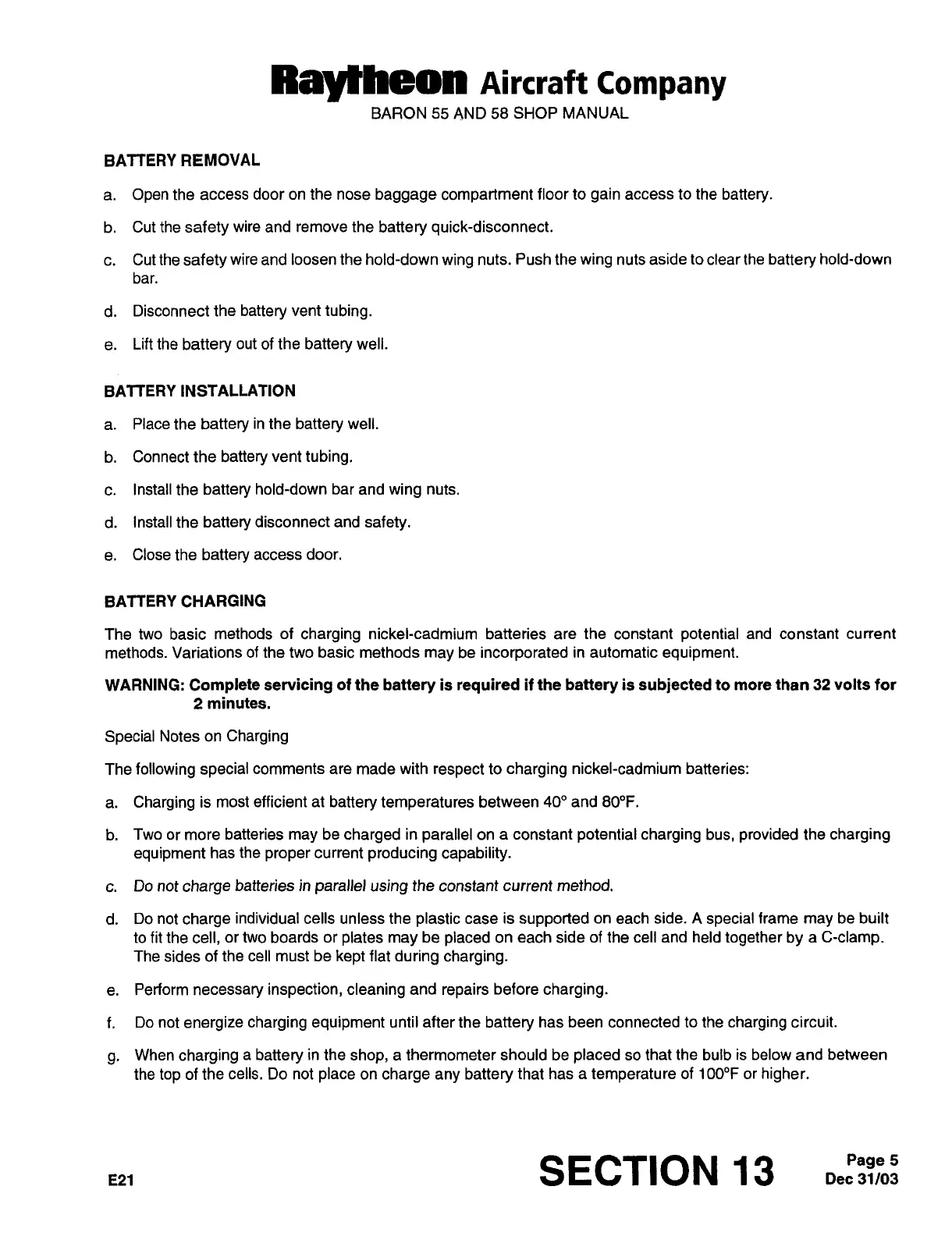

Raytheon
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
BATTERY
REMOVAL
a.
Open
the
access
door
on
the
nose
baggage
compartment
floor
to
gain
access
to
the
battery.
b.
Cut
the
safety
wire
and
remove
the
battery quick-disconnect,
c.
Cut
the
safety
wire
and
loosen
the hold-down
wing
nuts.
Push
the
wing
nuts
aside
to
clear
the
battery
hold-down
bar.
d.
Disconnectthe
battery venttubing.
e.
Lift the
battery
out of the
battery
well.
BATTERY
INSTALLATION
a.
Place
the
battery
in the
battery
well.
b.
Connectthe
batteryventtubing.
c.
Install the
battery
hold-down bar
and
wing
nuts.
d.
Install
the
battery
disconnect
and
safety.
e.
Closethe
batteryaccessdoor.
BATTERY
CHARGING
The
two basic
methods
of
charging
nickel-cadmium
batteries
are
the
constant
potential
and
constant
current
methods.
Variations
of
the
two basic
methods
may
be
incorporated
in automatic
equipment.
WARNING:
Complete servicing
of
the
battery
is
required
if
the
battery
is
subjected
to
more
than
32
volts
for
2
minutes.
Special
Notes
on
Charging
The
following
special
comments
are
made with
respect
to
charging
nickel-cadmium
batteries:
a.
Charging
is
most
efficient
at
battery
temperatures
between
400 and
800F.
b.
Two
or
more
batteries
may
be
charged
in
parallel
on
a
constant
potential charging
bus,
provided
the
charging
equipment
has
the
proper
current
producing capability.
c.
Do
not
charge
batteries
in
parallel
using
the
constant
current
method.
d.
Do
not
charge
individual
cells
unless the
plastic
case
is
supported
on
each
side.
A
special
frame
may
be
built
to fit the
cell,
or
two
boards
or
plates
may
be
placed
on
each side
of
the
cell and
held
together
by
a
C-clamp.
The
sides
of
the cell
must
be
kept
flat
during
charging.
e.
Perform
necessary
inspection,
cleaning
and
repairs
before
charging.
f.
Do
not
energize
charging
equipment
until
after
the
battery
has
been
connected
to
the
charging
circuit.
g.
When
charging
a
battery
in
the
shop,
a
thermometer
should be
placed
so
that
the
bulb
is below
and
between
the
top
of the
cells.
Do
not
place
on
charge
any
battery
that
has
a
temperature
of
1
OO"F
or
higher.
E21
SECTION
13
5
