BARON
55
AND 58
SHOP MANUAL

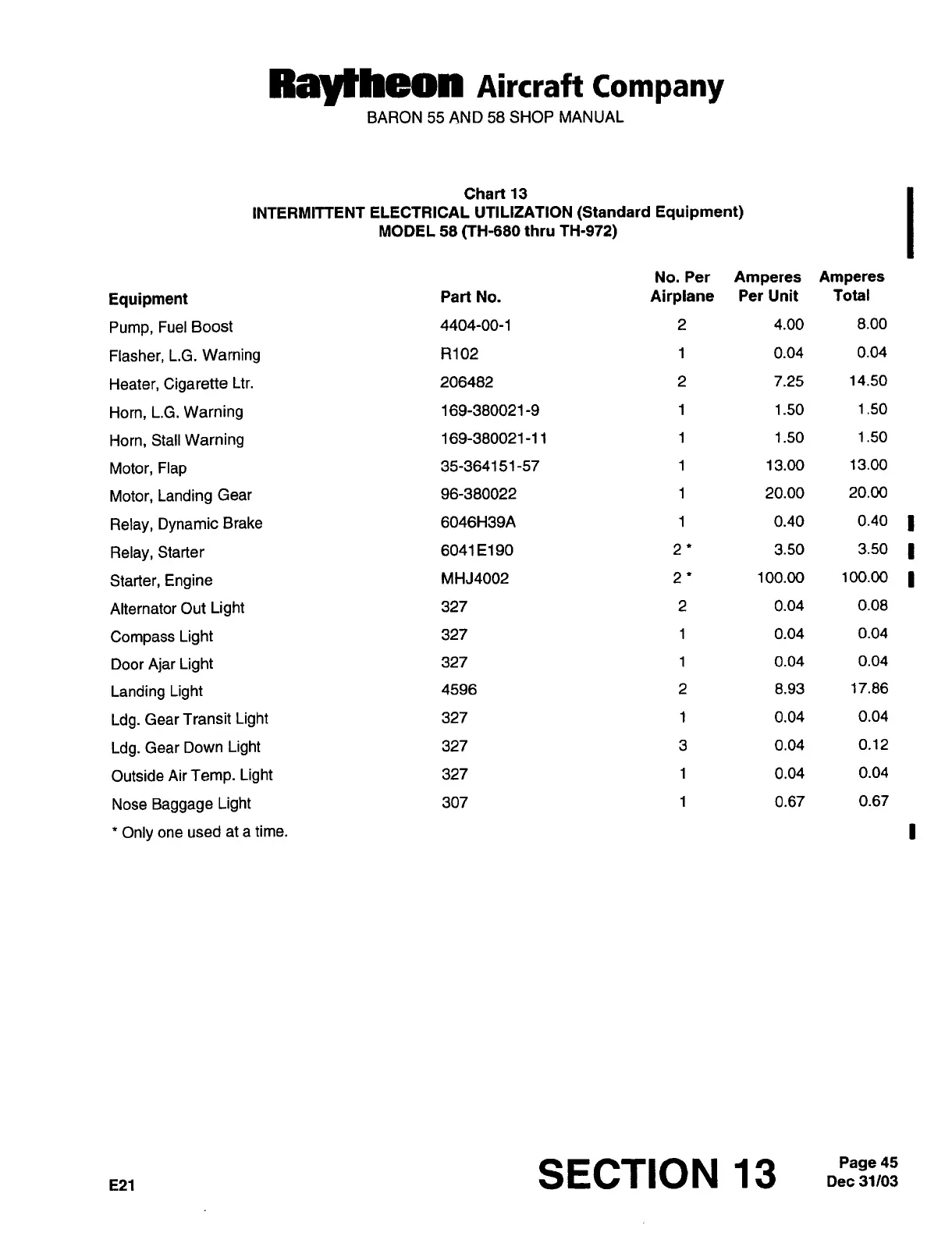

Chart
13
INTERMITTENT
ELECTRICAL UTILIZATION
(Standard
Equipment)
MODEL
58
(TH-680
thru
TH-972)
No.
Per
Amperes
Amperes
Equipment
Part
No.
Airplane
Per Unit
Total
Pump,
Fuel
Boost
4404-00-1
2
4.00
8.00
Flasher,
L.G.
Warning
R1
02
1
0.04
0.04
Heater,
Cigarette
Ltr.
206482
2 7.25
14.50
Horn,
L.G.
Warning
169-380021-9
1 1.50
1.50
Horn,
Stall
Warning
169-380021-11
1 1.50
1.50
Motor,
Flap
35-364151-57
1
13.00
13.00
Motor,
Landing
Gear
96-380022
1
20.00
20.00
Relay,
Dynamic
Brake
6046H39A
1
0.40
0.40
Relay,
Starter
6041
E190
2’
3.50
3.50
Starter,
Engine
MHJ4002
2’ 100.00
100.00
Alternator
Out
Light
327
2
0.04
0.08
Compass
Light
327
1
0.04
0.04
Door
Ajar
Light
327
1
0.04
0.04
Landing Light
4596
2 8.93
17.86
Ldg.
Gear
Transit
Light
327
1
0.04
0.04
Ldg.
Gear
Down
Light
327
3
0.04
0.12
Outside
Air
Temp.
Light
327
1
0.04
0.04
Nose
Baggage
Light
307
1
0.67
0.67
Only
one
used
at
a
time.
E21
SECTION
13
Dec
