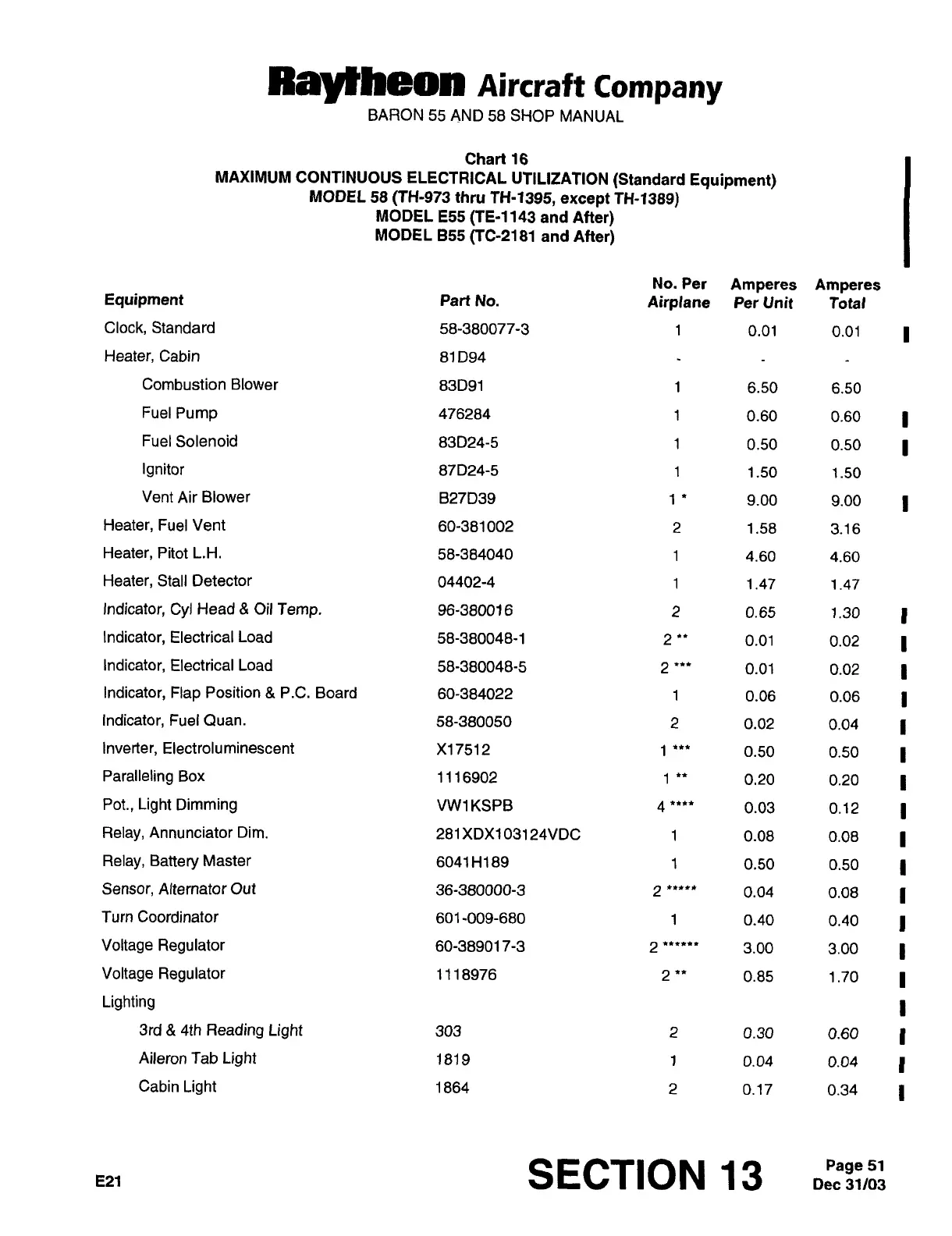

NeYNteen
Aircraft
Company
BARON
55
AND
58
SHOP
MANUAL
Chart
16
MAXIMUM
CONTINUOUS
ELECTRICAL
UTILIZATION
(Standard
Equipment)
MODEL
58
(TH-973
thru
TH-1395,
except
TH-1389)
MODEL
E55
(TE-1143
end
After)
MODEL
B55
(TC-2181
and
After)
No.
Per
Amperes
Amperes
Equipment
Part
No.
Airplane
Per
Unit
Total
Clock,
Standard
58-380077-3
1
0.01
0.01
Heater,
Cabin
81
D94
Combustion
Blower
83D91
1
6.50
6.50
Fuel
Pump
476284
1
0.60
0.60
Fuel
Solenoid
83024-5
1
0.50
0.50
Ignitor
87D24-5
1
1.50
1.50
Vent
Air
Blower
B27D39
1
9.00
9.00
Heater,
Fuel
Vent
60-381 002
2
1.58
3.16
Heater,
Pitot
L.H.
58-384040
1
4.60
4.60
Heater,
Stall
Detector
04402-4
1
1.47
1.47
Indicator,
Cyl
Head
Oil
Temp.
96-380016
2
0.65
1.30
Indicator,
Electrical Load
58-380048-1
2"
0.01
0.02
Indicator,
Electrical Load
58-380048-5
2
0.01
0.02
Indicator,
Flap
Position
P.C.
Board
60-384022
1
0.06
0.06
Indicator,
Fuel Quan.
58-380050
2
0.02
0.04
Inverter,
Electroluminescent
X1
7512
1’""
0.50
0.50
Paralleling
Box
1116902
1
0.20
0.20
Pot.,
Light
Dimming
WV1KSPB
4
0.03
0.12
Relay,
Annunciator Dim.
281XDX103124VDC
1
0.08
0.08
Relay,
Battery
Master
6041H189
1
0.50
0.50
Sensor,
Alternator
Out
36-380000-3
2
0.04
0.08
Turn
Coordinator
601-009-680
1
0.40
0.40
Voltage
Regulator
60-389017-3
2
3.00
3.00
Voltage
Regulator
1118976
2
0.85
1.70
Lighting
3rd 4th
Reading
Light
303
2
0.30
0.60
Aileron
Tab
Light
1819
1
0.04
0.04
Cabin
Light
1864
2
0.17
0.34
E21
SECTION
13
Dec
31/03Page
