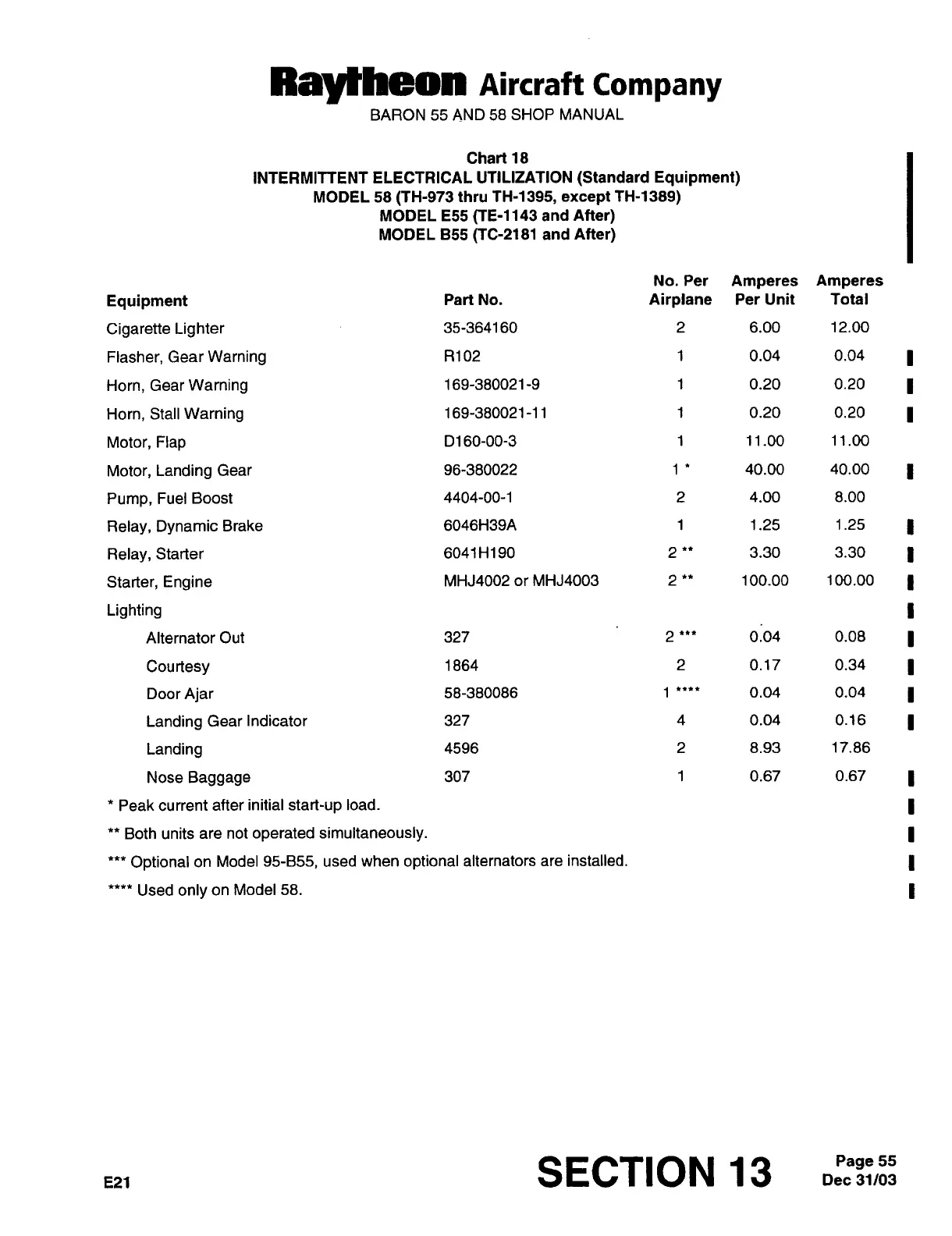

Raytheon Beech Baron E55 - Page 653

Raytheon
AiKraft
Company
BARON
55
AND
58
SHOP MANUAL
Chart
18
INTERMITTENT
ELECTRICAL
UTILIZATION
(Standard Equipment)
MODEL
58
(TH-973
thru
TH-1395,
except
TH-1389)
MODEL E55
(TE-1143
and
After)
MODEL 855
(TC-2181
and
After)
No.
Per
Amperes
Amperes
Equipment
Part
No.
Airplane
Per
Unit
Total
Cigarette
Lighter
35-364160
2 6.00 12.00
Flasher,
Gear
Warning
R102
1
0.04
0.04
Horn,
Gear
Warning
169-380021-9
1
0.20
0.20
Horn,
Stall
Warning
169-380021-11
1
0.20 0.20
Motor,
Flap
D160-00-3
1
11.00
11.00
Motor,
Landing
Gear
96-380022
1 40.00
40.00
Pump,
Fuel
Boost
4404-00-1
2 4.00
8.00
Relay,
Dynamic
Brake
6046H39A
1 1.25
1.25
Relay,
Starter
6041H190
2" 3.30 3.30
Starter,
Engine
MHJ4002
or
MHJ4003
2
100.00
100.00
Lighting
Alternator
Out
327
2 0.04
0.08
Courtesy
1864
2 0.17 0.34
Door
Ajar
58-380086
1
0.04
0.04
Landing
Gear
Indicator
327
4 0.04
0.16
Landing
4596
2 8.93
17.86
Nose
Baggage
307
1
0.67
0.67
Peak
current
after
initial
start-up
load.
Both units
are
not
operated
simultaneously.
Optional
on
Model
95-B55,
used
when
optional
alternators
are
installed.
Used
only
on
Model
58.
E21
SECTION
13
Dec
31/03Page
55
