BARON
55
AND
58
SHOP
MANUAL

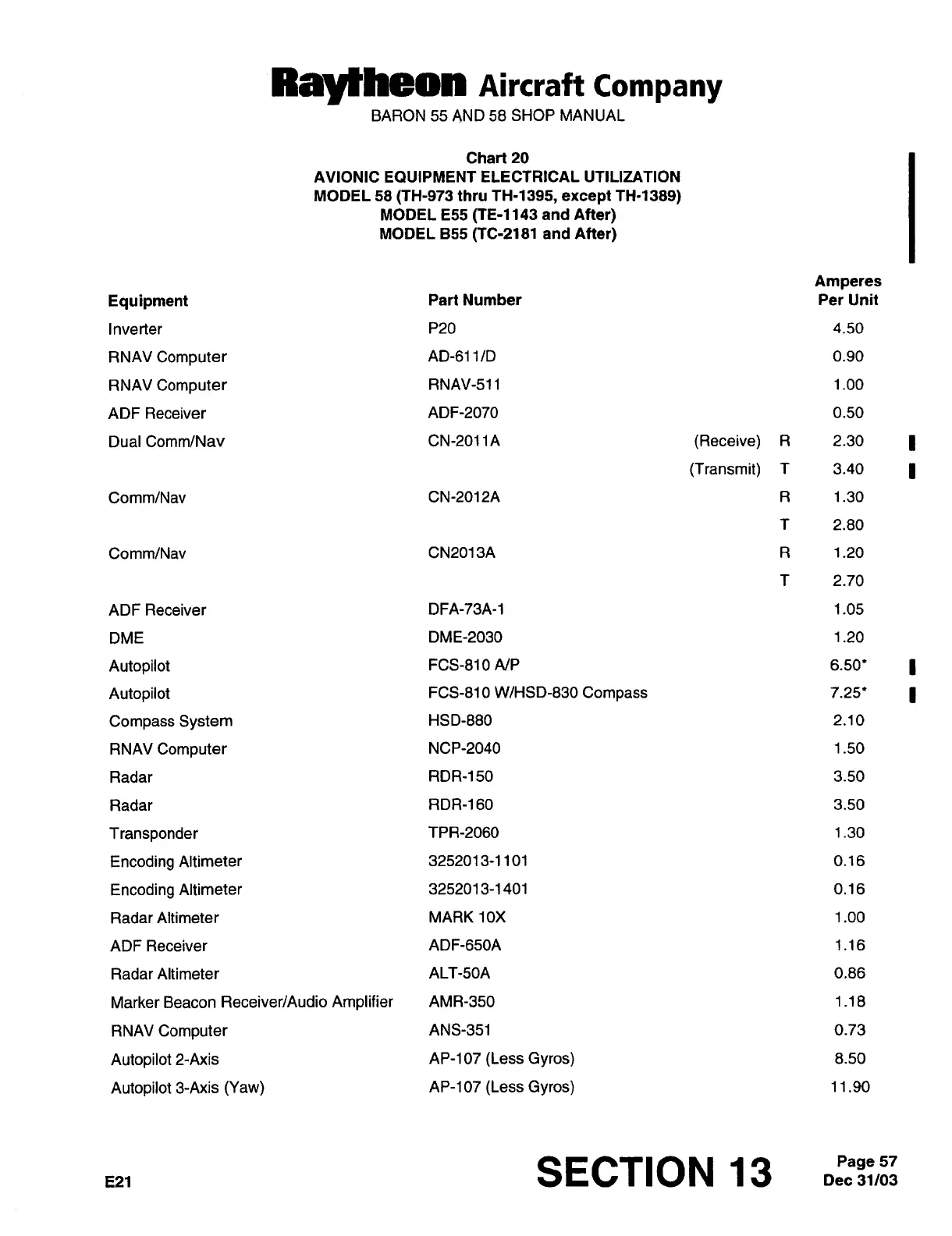

Chart
20
AVIONIC
EQUIPMENT
ELECTRICAL
UTILIZATION
MODEL
58
(TH-973
thru
TH-1395,
except
TH-1389)
MODEL
E55
(TE-1143
and
After)
MODEL
B55
(TC-2181
and
After)
Amperes
Equipment
Part Number Per Unit
Inverter
P2O
4.50
RNAV
Computer
AD-GI1/D
0.90
RNAV
Computer
RNAV-511
1.00
ADF Receiver
ADF-2070 0.50
Dual
Comm/Nav
CN-2011 A
(Receive)
R
2.30
(Transmit)
T
3.40
Comm/Nav
CN-201
2A R
1.30
T
2.80
Comm/Nav
CN2O1
3A R
1.20
T
2.70
ADF Receiver
DFA-73A-1
1.05
DME
DME-203O
1.20
Autopilot
FCS-81O
A/P
6.50’
Autopilot
FCS-81O
W/HSD-830
Compass
7.25’
Compass
System
HSD-88O
2.10
RNAV
Computer
NCP-2040
1.50
Radar
RDR-15O
3.50
Radar
RDR-16O
3.50
Transponder
TPR-206O
1.30
Encoding
Altimeter
3252013-1101
0.16
Encoding
Altimeter
3252013-1401
0.16
Radar
Altimeter
MARK 10X
1.00
ADF Receiver
ADF-65OA
1.16
Radar Altimeter
ALT-50A
0.86
Marker Beacon
Receiver/Audio
Amplifier
AMR-35O
1.18
RNAV
Computer
ANS-351
0.73
Autopilot
2-Axis
AP-1O7
(Less
Gyros)
8.50
Autopilot
3Axis
(Yaw)
AP-1O7
(Less
Gyros)
11.90
E21
