Raytheon Beech Baron E55 - Page 659

Raytheon
Aircraft
Company
BARON
55
AND
58
SHOP MANUAL

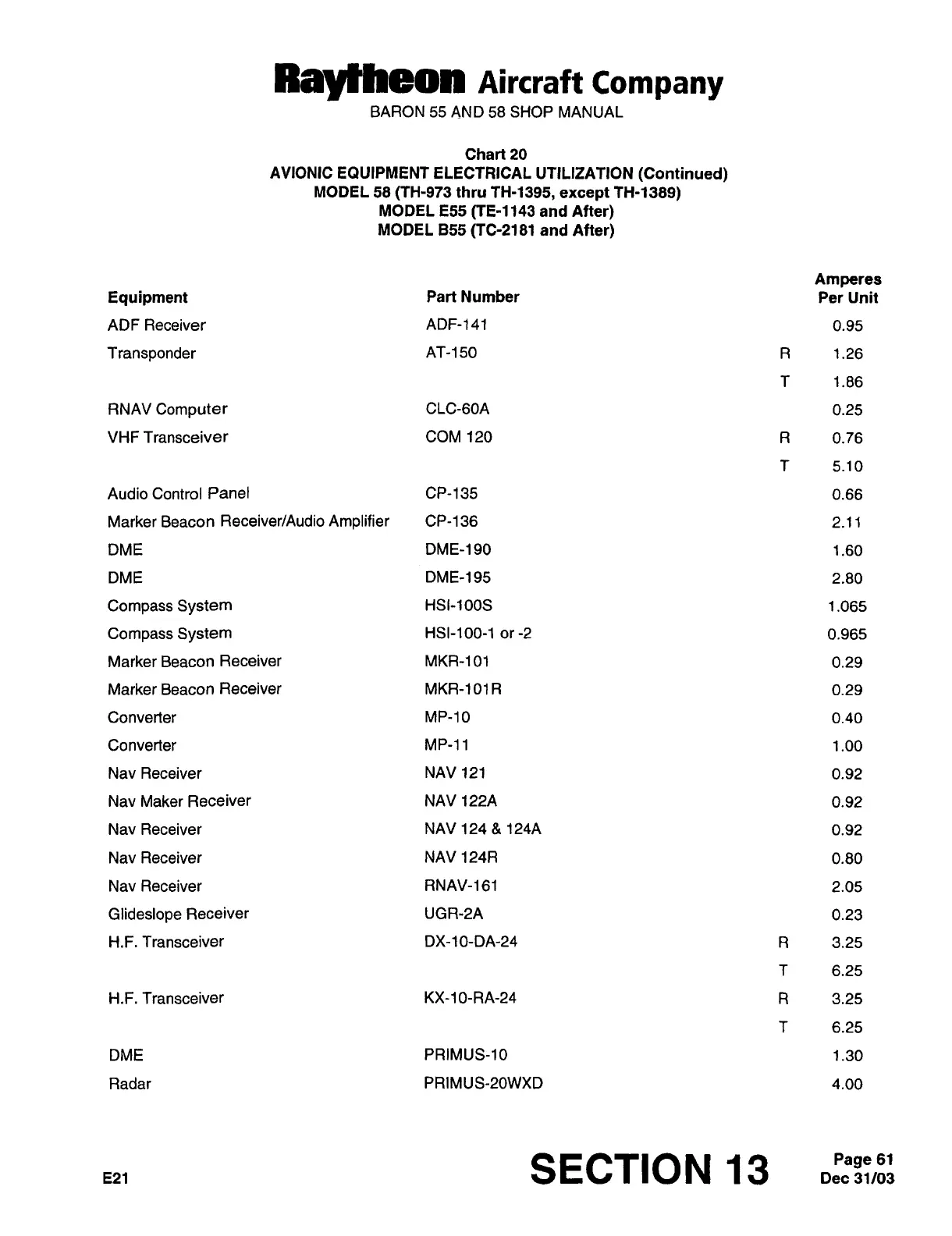

Chart
20
AVIONIC
EQUIPMENT ELECTRICAL UTILIZATION
(Continued)
MODEL
58
(TH-973
thru
TH-1395,
except
TH-1389)
MODEL
E55
(TE-1143
and
After)
MODEL
B55
(TC-2181
and
After)
Amperes
Equipment
Part Number
Per Unit
ADF Receiver
ADF-141
0.95
Transponder
AT-150
R
1.26
T
1.86
RNAV
Computer
CLC-GOA
0.25
VHF Transceiver
COM
120
R
0.76
T
5.10
Audio Control
Panel CP-135
0.66
Marker Beacon
Receiver/Audio
Amplifier
CP-136
2.11
DME
DME-190
1.60
DME
DME-195
2.80
Compass
System
HSI-100S
1.065
Compass
System
HSI-100-1
or
-2
0.965
Marker Beacon
Receiver
MKR-101
0.29
Marker
Beacon
Receiver
MKR-1O1R
0.29
Converter
MP-10
0.40
Converter
MP-11
1.00
Nav Receiver
NAV
121
0.92
Nav Maker
Receiver
NAV 122A
0.92
Nav
Receiver
NAV
124
124A
0.92
Nav Receiver
NAV
124R
0.80
Nav Receiver
RNAV-161
2.05
Glideslope
Receiver
UGR-2A
0.23
H.F.
Transceiver
DX-1
0-DA-24
R
3.25
T
6.25
H.F.
Transceiver
KX-1 0-RA-24
R
3.25
T
6.25
DME
PRIMUS-10
1.30
Radar
PRIMUS-20WXD
4.00
E21
SECTION
13
Dec
31/03Page
61
