SHOP MANUAL

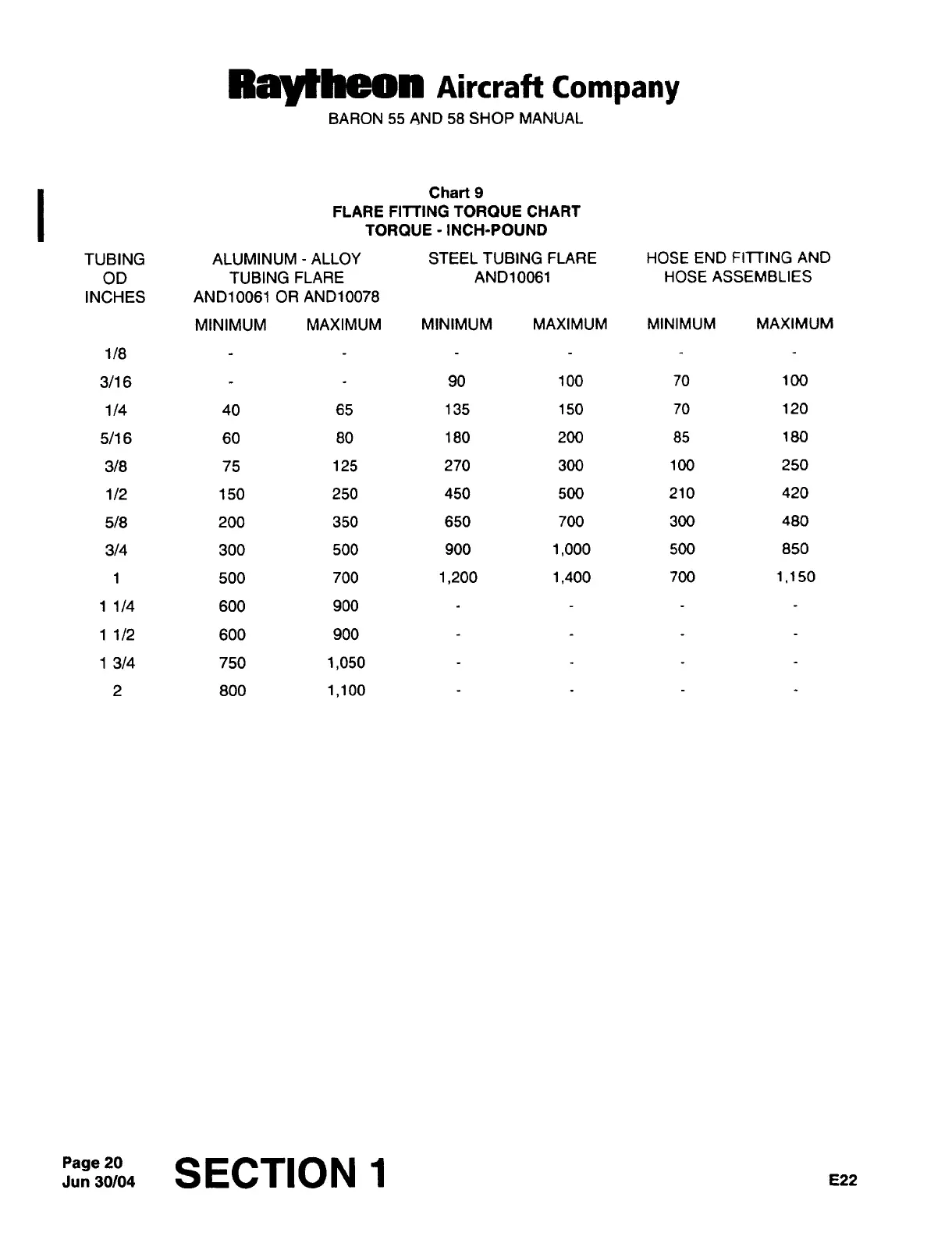

Chart
9
FLARE
FITTING
TORQUE CHART
TORQUE-
INCH-POUND
TUBING ALUMINUM
ALLOY
STEEL
TUBING
FLARE
HOSE
END
FITTING
AND
OD
TUBING
FLARE
AND10061
HOSE
ASSEMBLIES
INCHES
AND10061
OR
AND10078
MINIMUM
MAXIMUM
MINIMUM
MAXIMUM
MINIMUM
MAXIMUM
1/8
3/16
90
100
70
100
1/4
40
65
135 150
70
120
5/16
60
80
180
200
85
~80
3/8
75
125
270
300
100
250
1/2
150
250
450
500
210
420
5/8
200
350
650 700
300
480
3/4
300
500
900
1,000
500 850
1
500
700
1,200 1,400
700
1,150
11/4
600
900
11/2
600
900
13/4
750
1,050
2 800
1,100
