8

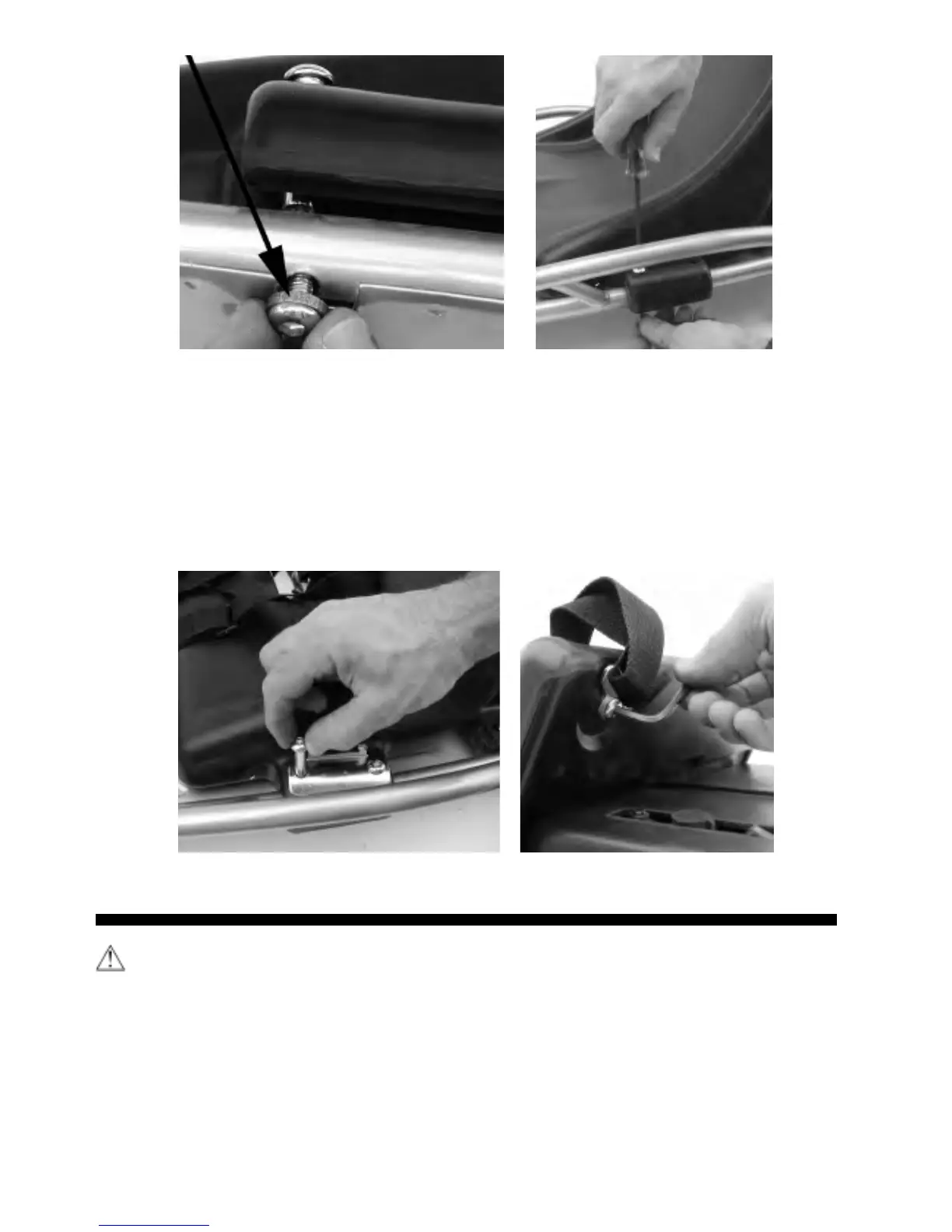

Figure 4a and 4b.
3D. Optional attaching the seat with seat belt assembly. Locate the four (4) long seat
attachment screws and seat-belt assembly in the parts bag. Position the seat over the
frame and align it with the holes in the frame. Position the seat-belt anchors with the
lap/shoulder assembly on the left side and the receiver latch on right side. Insert the
screws as shown in Figure 5a and tighten. Install the shoulder belt anchor to the back of
the seat as shown in Figure 5b using the supplied screw, tighten securely.
Figure 5a and 5b.
WARNING: The seat belt arrangement suppled with the Ground Force is for “play”
use only. It is not an ASTM-approved safety belt system and is not intended to function as
an approved lap/shoulder/seat restraining device. The seat belt system is not required for
normal use. Install and use at your own risk.
