Figures 2a, 2b and 2c.

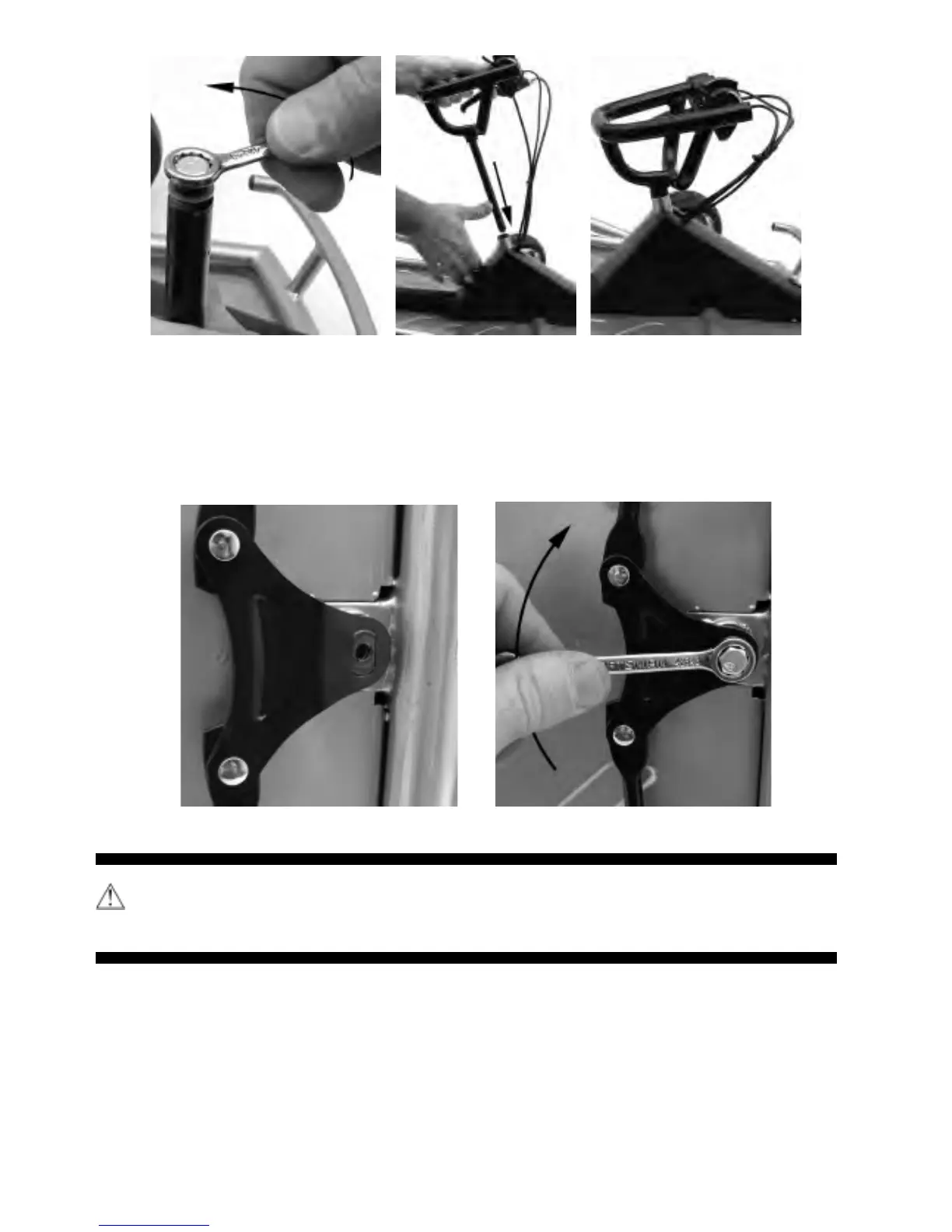

Positioning the steering wheel for attachment to tie-rods.
Tighten securely. Position the tie-rod control arm onto the steering axle as shown in
Figure 3a and install the washers and fixing bolt. Using a 10mm wrench, tighten securely.
Figure 3a and 3b. Tighten the tie-rod control arm using a 5mm hex key wrench.
WARNING: Failure to use the washer and lock washer or failure to properly tighten
the steering wheel may cause you to lose control and crash.
3C. Attach the seat without seat belt assembly. Locate the four (4) long seat
attachment screw and spacer washers in the parts bag. Position the seat over the frame
and align it with the holes in the frame. Insert the screws as shown in Figure 4a, using the
spacer washer as indicated by the arrow in Figure 4a. Insert all four screws and washers
and tighten securely using two Allen key wrenches as shown in Figure 4b.
