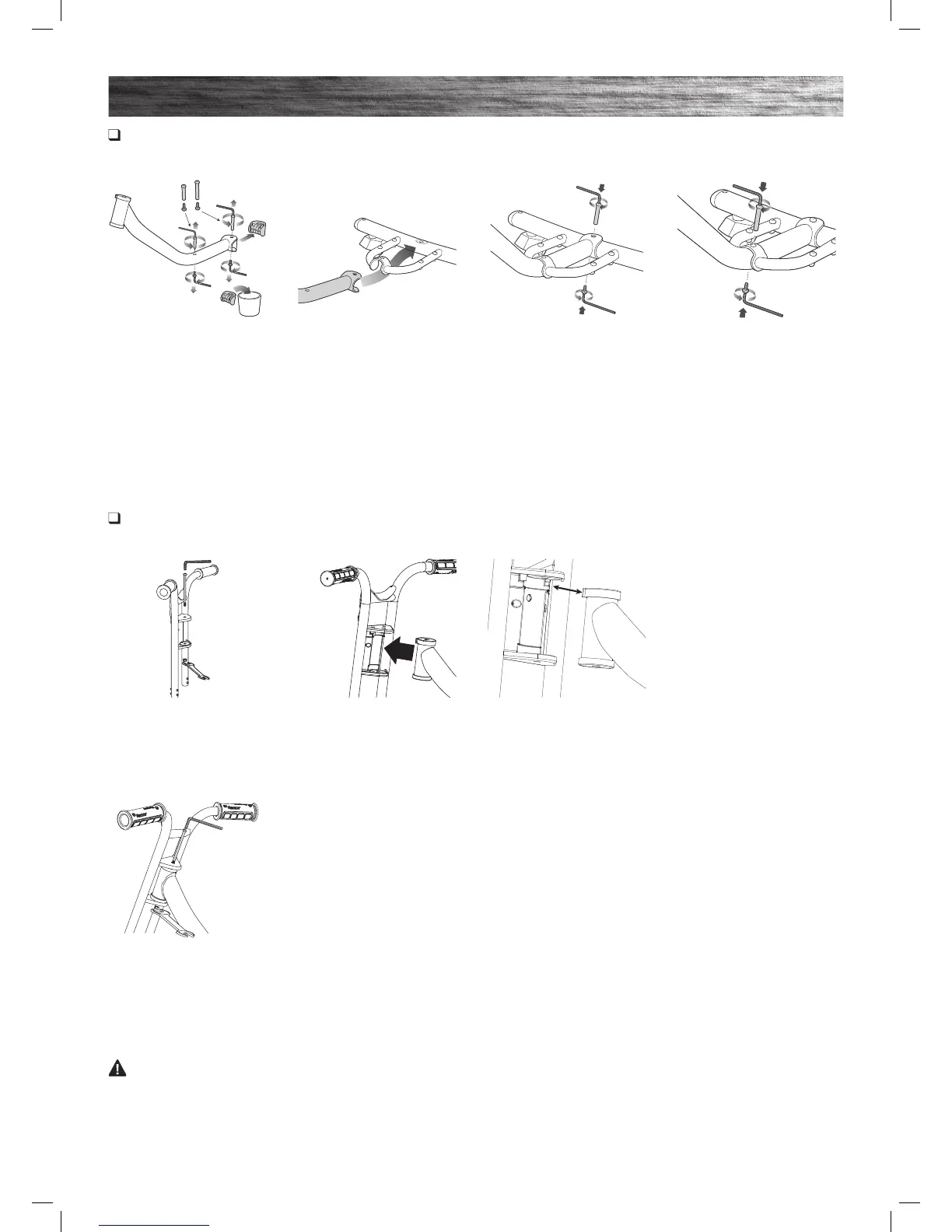

ASSEMBLY AND SET-UP
Attaching the Frame
Required Tools: Two (2) 5 mm Allen wrenches
1 Remove the steering bolt and
locknut from the frame assembly
with a 13 mm wrench and a 5 mm
Allen wrench.
Attaching the Front Fork
Required Tools: 13 mm wrench and 5 mm Allen wrench
4 Reinsert the steering bolt and
secure with locknut using a 13 mm
wrench and a 5 mm Allen wrench.
2 Insert the front fork into the
frame assembly.
3 Be sure to properly align the
slot on the headtube with the pin
on the front fork as shown.
WARNING: Failing to properly tighten the steering bolt that attaches the front fork assembly to the frame assembly can cause you to lose control and fall.
1 Using two (2) 5 mm Allen
wrenches, remove the coupling
bolt on the end of the frame and
the coupling bolt in the middle of
the frame. Remove and discard the
plastic insert.
Note: The coupling bolt in the
middle of the frame is shorter.
3 Securely tighten the (longer)
coupling bolt on the rear frame
using two (2) 5 mm Allen wrenches.
4 Securely tighten the
(shorter) coupling bolt in the
middle of the frame using two
(2) 5 mm Allen wrenches.
2 Insert the rear frame into the
frame assembly.
To Next Page
