ELECTRICAL SERVICE
See Figure 24.
Replace Fuse
IMPORTANT: To avoid damaging the circuit, replace
fuses with fuses of the same
amperage rating.
Determine the cause of electrical failure and repair
before replacing failed electrical components.
1. Place unit in service position. See Service
Position on page 17.
2. Remove defective fuse.
3. Determine cause of fuse failure and repair
condition.
4. Install new fuse.
Replace Relay
NOTICE: Relays are interchangeable. Use
only
quality replacement parts. See Service Parts on
page 18.
1. Place unit in service position. See Service
Position on page 17.
2. Remove defective relay.
3. Determine cause of relay failure and repair
condition.
4. Install new relay.

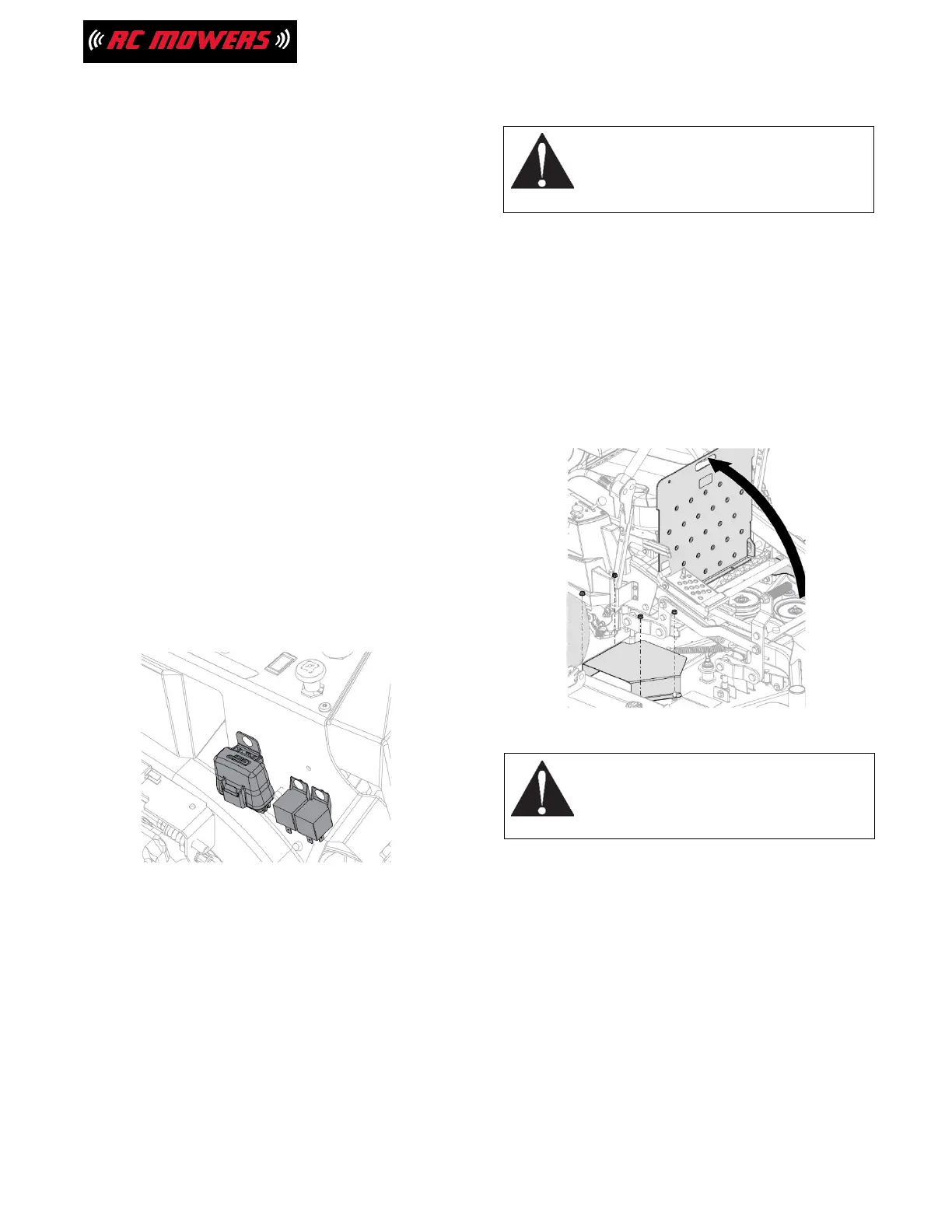

Figure 24
REPLACE MOWER BELTS
CAUTION: Damaged or worn belts may
result in injury and / or damage to the
unit. Check belts often for excessive
wear or cracks.
Remove PTO Belt
See Figure 25.
1. Place unit in service position. See Service
Position on page 17.
2. Position mower deck at lowest cutting
height.
3. Remove hardware securing belt covers
to
deck and remove belt covers.
4. Open access panel.
Figure 25
CAUTION: Use care when releasing
idler spring tension. Keep body parts
away from idlers when performing this
operation.
See Figure 26.
5. Slowly remove spring hook from anchor bolt
to release tension from belt idler.
6. Remove PTO belt.
24
