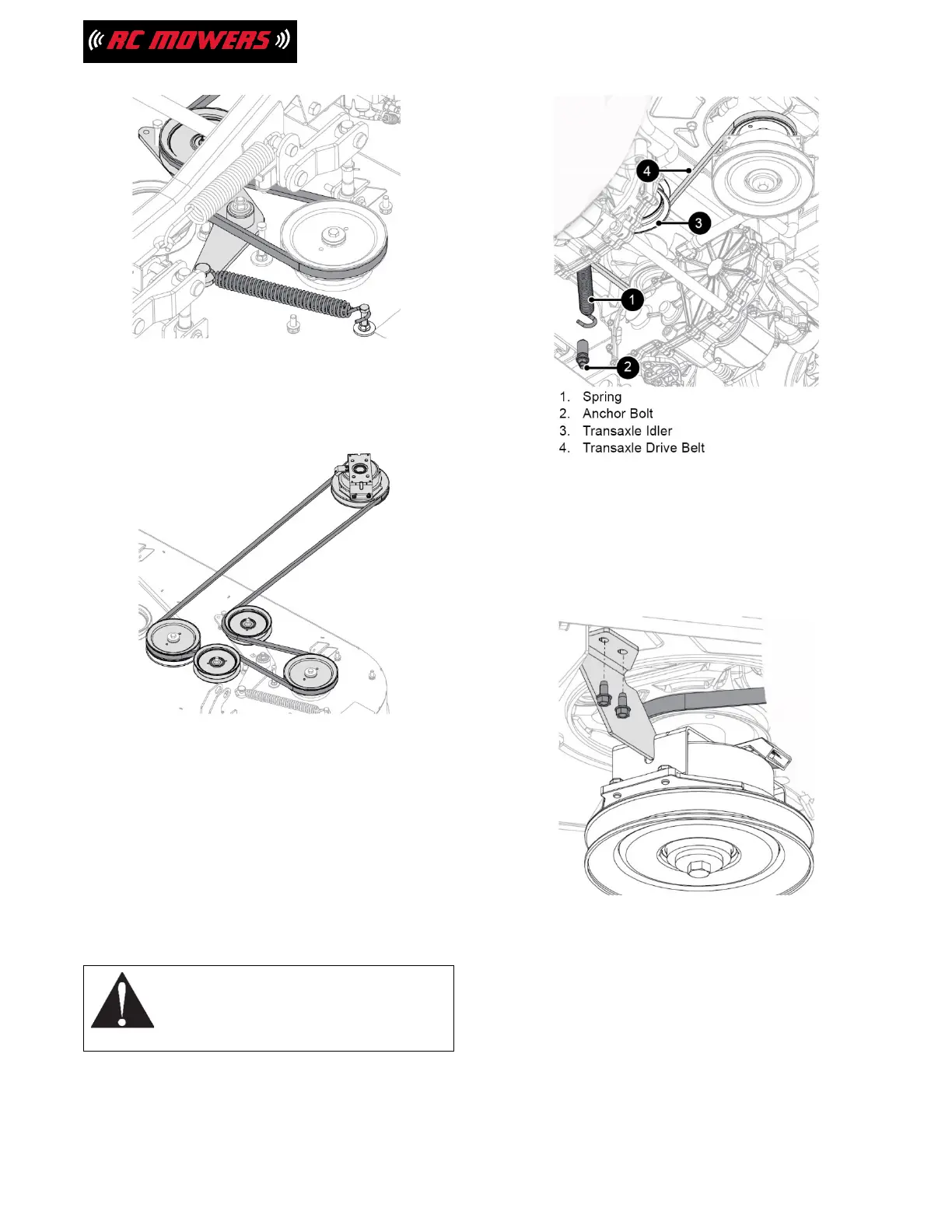

Figure 29
IMPORTANT: Make sure belt has tension and is
aligned in all pulleys. (See Figure 309.)
Figure 30
5. Reinstall belt covers and secure with original
hardware.
REPLACE TRANSAXLE DRIVE
BELT
Remove Transaxle Drive Belt
1. Place unit in service position. See Service
Position on page 17.
2. Remove PTO belt from clutch. See Remove
PTO Belt on page 24.
CAUTION: Use care when releasing
idler spring tension. Keep body parts
away from idlers when performing this
operation.
3. Under unit, slowly remove spring hook from
anchor bolt to release transaxle idler
tension. (See Figure 31.)
Figure 31
4. Remove hardware securing clutch stop
bracket to frame and remove bracket.
(See Figure 32.)
NOTICE: DO NOT cut cable tie.
Figure 32
5. Remove transaxle drive belt from drive
system in the following order:
a. From right transaxle sheave.
b. From left transaxle sheave.
c. From clutch sheave.
26
