RC MI2S-600D - Connecting Multiple PV Modules to Micro Inverter

MI2S-600D/700D/800D 10
① PV modules should be connected to DC input ports of a micro inverter.One PV channel of the
inveter is for one PV panel only.
② Use DC extension cable when the original cable is not long enough. Please consult the local
power operator to make sure that the DC cable complies with local regulations.

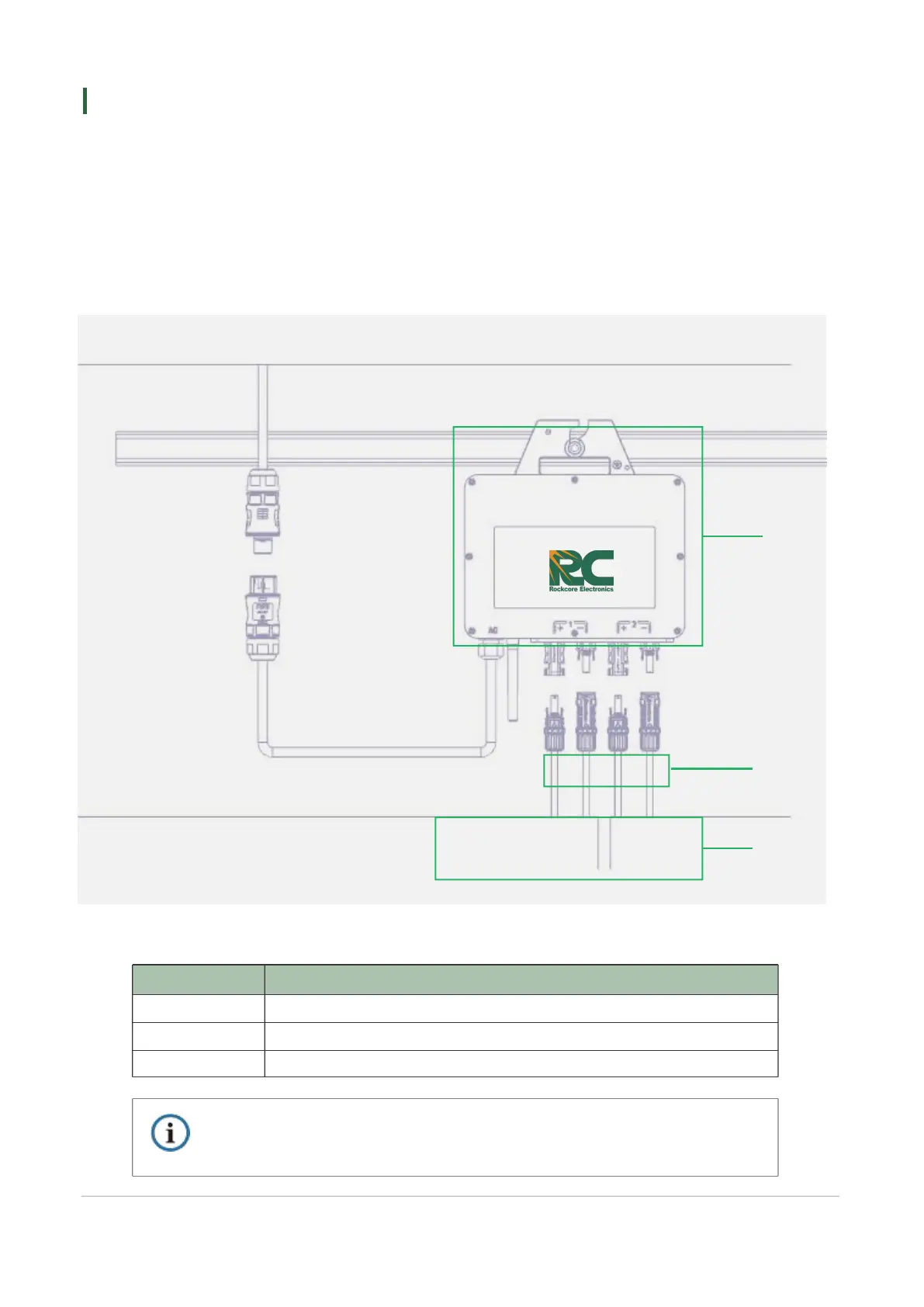

5.4 Connecting Multiple PV Modules to Micro Inverter
PV1 PV2
A
B
C
Object
Description
A
PV panel
B
Microinveter
C
DC cable including extension part
The pv panel voltage must not exceed the maximum input voltage of the micro inverter. Otherwise, the micro
inverter may be damaged (refer to the absolute maximum input voltage from the Technical Data section).
CAUTION
