MI2S-600D/700D/800D 13

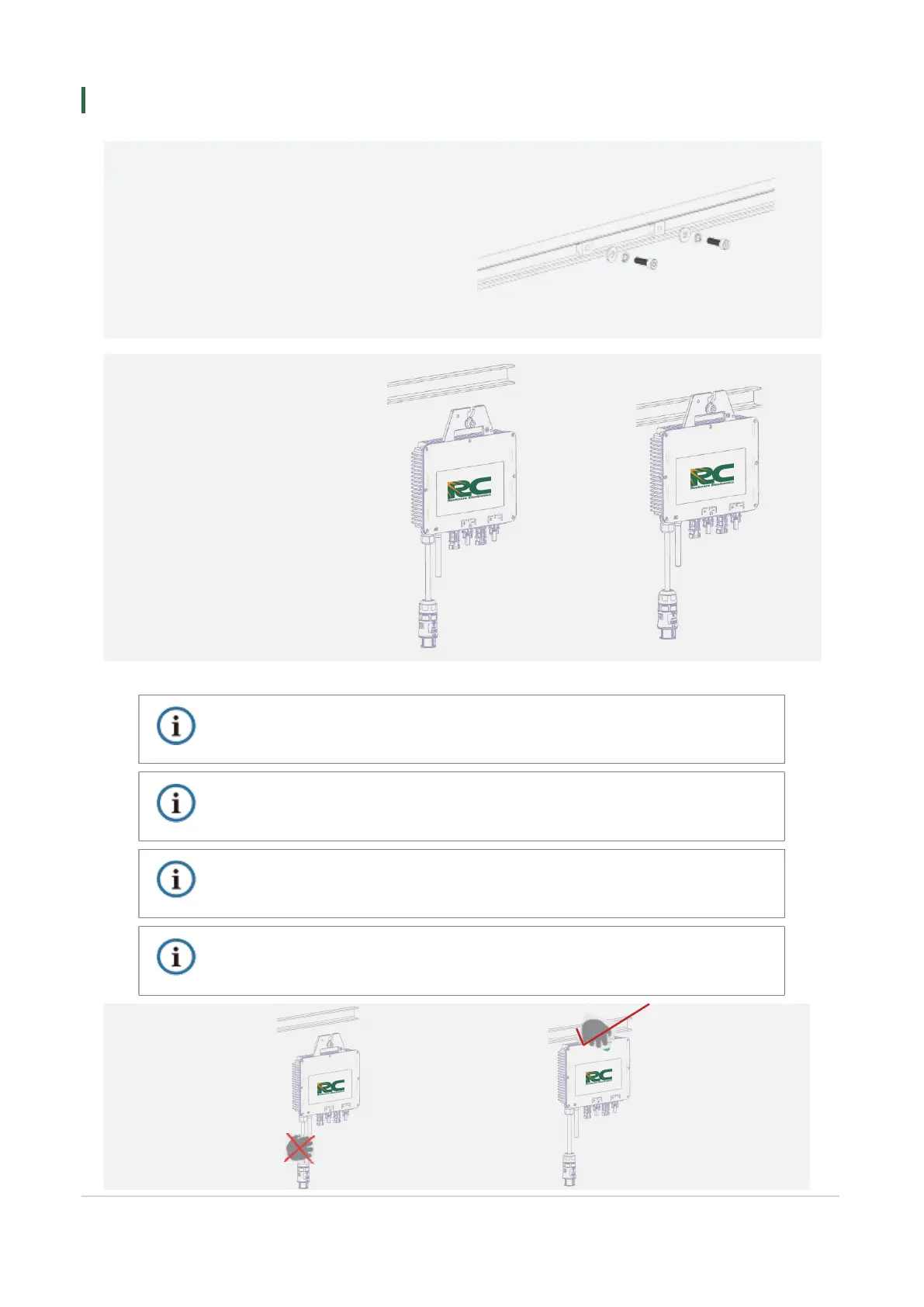

① According to the position of PV module

junction box and the installation mode of the

support,pay attention to the gap between the

PV modules in the middle position, and

roughly mark the installation position of the

micro inverter.

② Fix the screw to the guide rail.

6.2 Plan and Install the Micro Inverter

Mounting torque of the 8 mm screw is 9 N •m. Do not over-torque.

Leave a minimum of 10 cm of space around the micro inverter enclosure to ensure

ventilation and heat dissipation.

Do not pull or hold the AC cable with your hand. Hold the handle instead.

Micro inverter installation and DC connections must be done under the PV module to

avoid direct sunlight, rain exposure, snow buildup,UV etc.

The AC cable contains earth wire, so grounding can be done directly with it.

CA UT IO N

➂ Hang the micro inverter on the

screw and tighten the screw.
