Push the sealing body and sealing craw into
the housing body, and then tighten the end
locker,torque 4.0±0.5N·m.

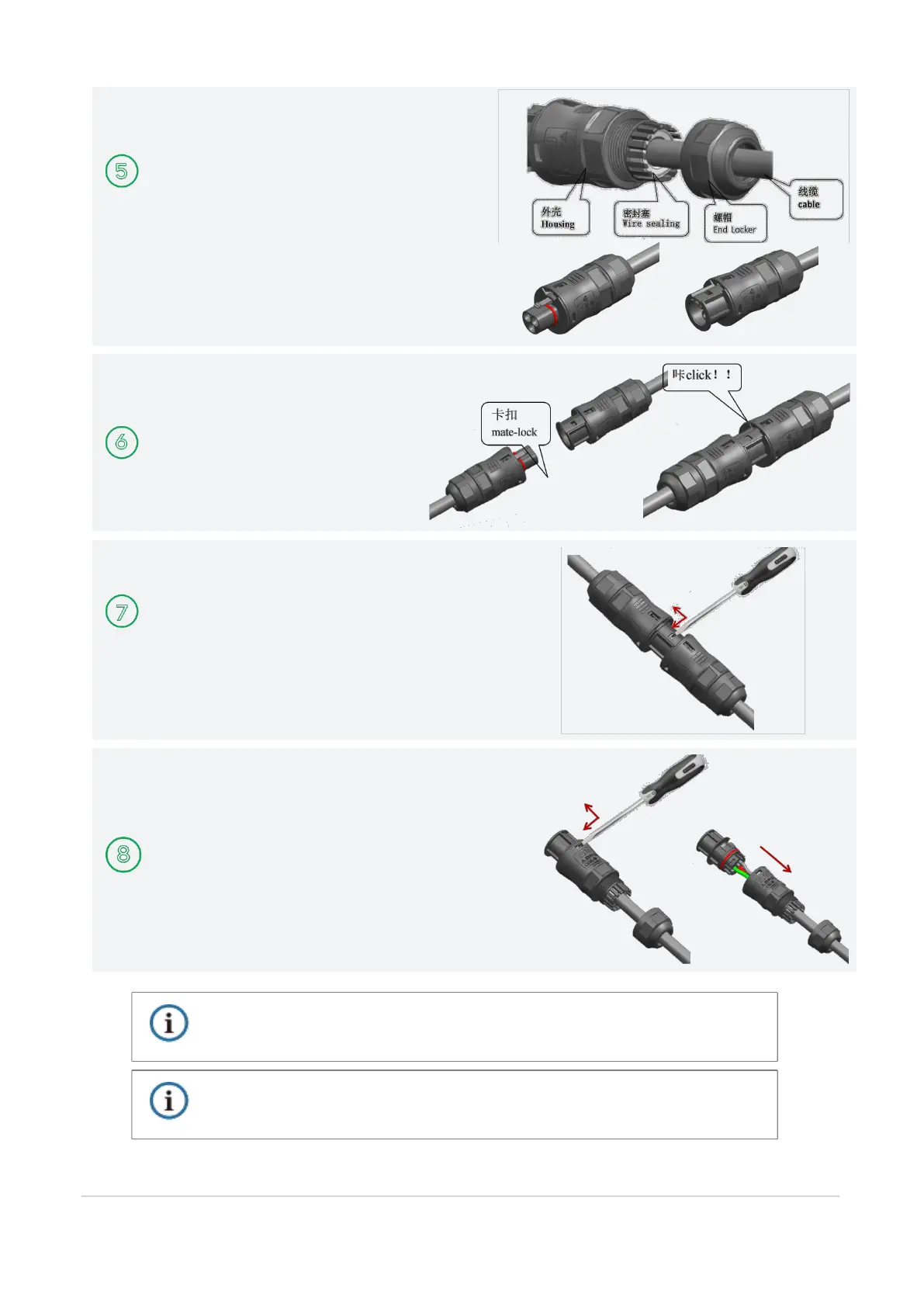

When mating connectors, align mate-locker on
the male connector with grooves on the female
connector, and insert gradually.Connected in
place, there will be a sound of "click".
If the connectors are separated, choose a
corresponding flat screwdriver to push mate-
locker step slightly out of position, and then
give a force along the axial direction until
separation.
Please do not separate and mate the connector system frequently if not for repairing or
maintenance reason which may reduce the waterproof performance of the system.
If the connector to be disassembly for rewire, please
according to the following steps:
Loosen tail parts (End Locker, );
Use a suitable flat screwdriver to press the elastic tongue on
the male or female cable body inward and push forward
slightly, and when the tongue comes off a little,use the
same method to the tongue on other side.Give a force along
the axial direction until separation.
CA UT IO N
Please ensure the inverter system is not under working conditions firstly when installing
connectors, The human body cannot simultaneously contact the connector’s positive and negative
pole , in order to avoid electric shock accidents.
CA UT IO N
MI2S-600D/700D/800D 15
